40D-Link DIR-860L User Manual
Section 3 - Conguration

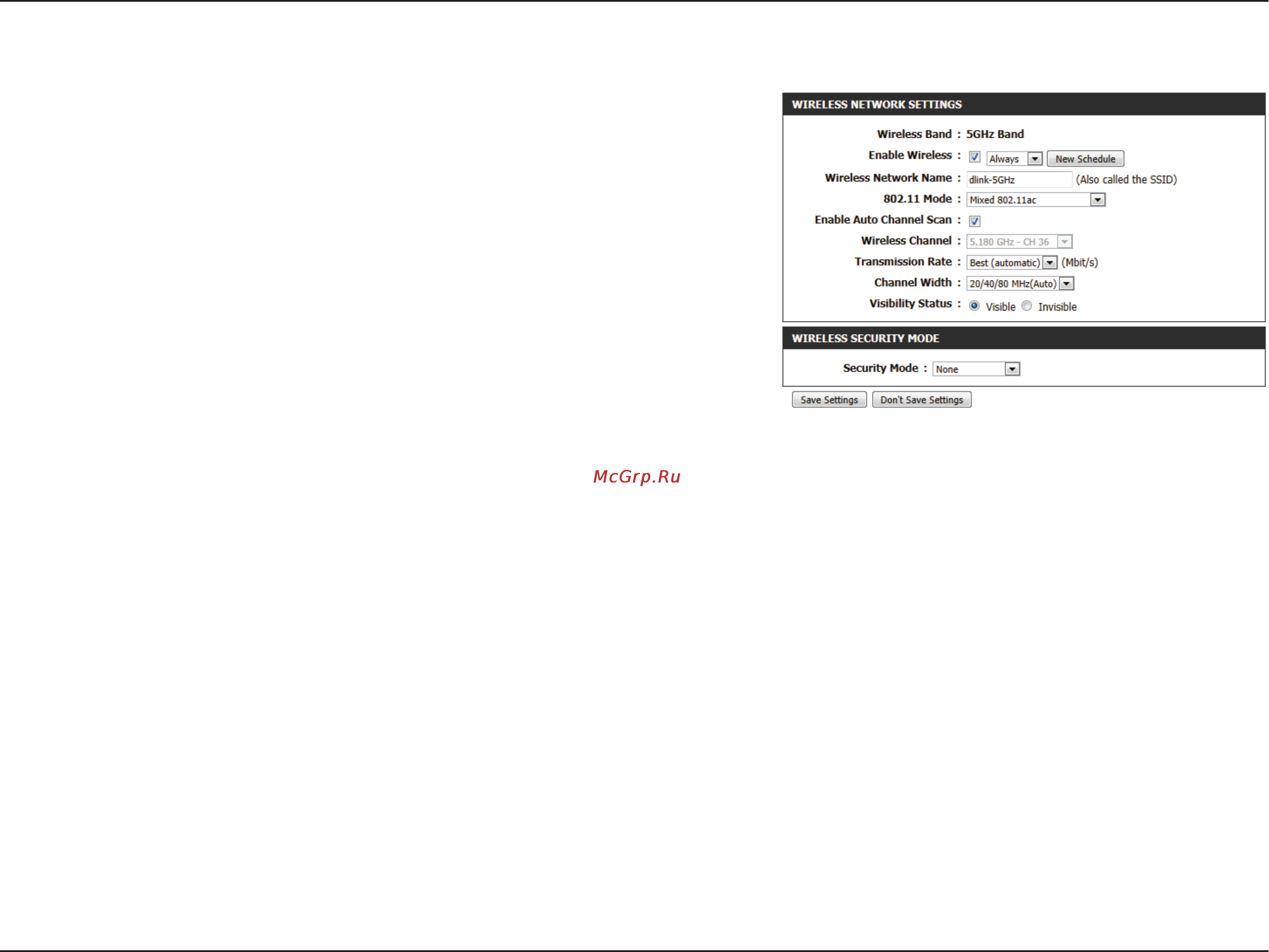

Draft 802.11ac (5 GHz)
Check the box to enable the wireless function. If you do not want to use
wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled.
The schedule may be set to Always. Any schedule you create will be
available in the drop-down menu. Click New Schedule to create a
schedule.
Service Set Identier (SSID) is the name of your wireless network. Create
a name for your wireless network using up to 32 characters. The SSID is
case-sensitive.
Select one of the following:
Mixed 802.11ac, 802.11n, and 802.11a - Select if you are using 802.11ac,
802.11n, and 802.11a wireless clients.
Mixed 802.11ac and 802.11n - Select if you are using both 802.11ac and
802.11n wireless clients.
Mixed 802.11a and 802.11n - Select if you are using both 802.11a and
802.11n wireless clients.
802.11ac Only - Select if all of your wireless clients are 802.11ac.
802.11n Only - Select only if all of your wireless clients are 802.11n.
The Auto Channel Scan setting can be selected to allow the DIR-860L to
choose the channel with the least amount of interference.
Indicates the channel setting for the DIR-860L. By default the channel
is set to 6. The channel can be changed to t the channel setting for an
existing wireless network or to customize the wireless network. If you
enable Auto Channel Scan, this option will be greyed out.
This should be set to Best (automatic) for optimal performance.
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless Channel:
Transmission
Rate:
