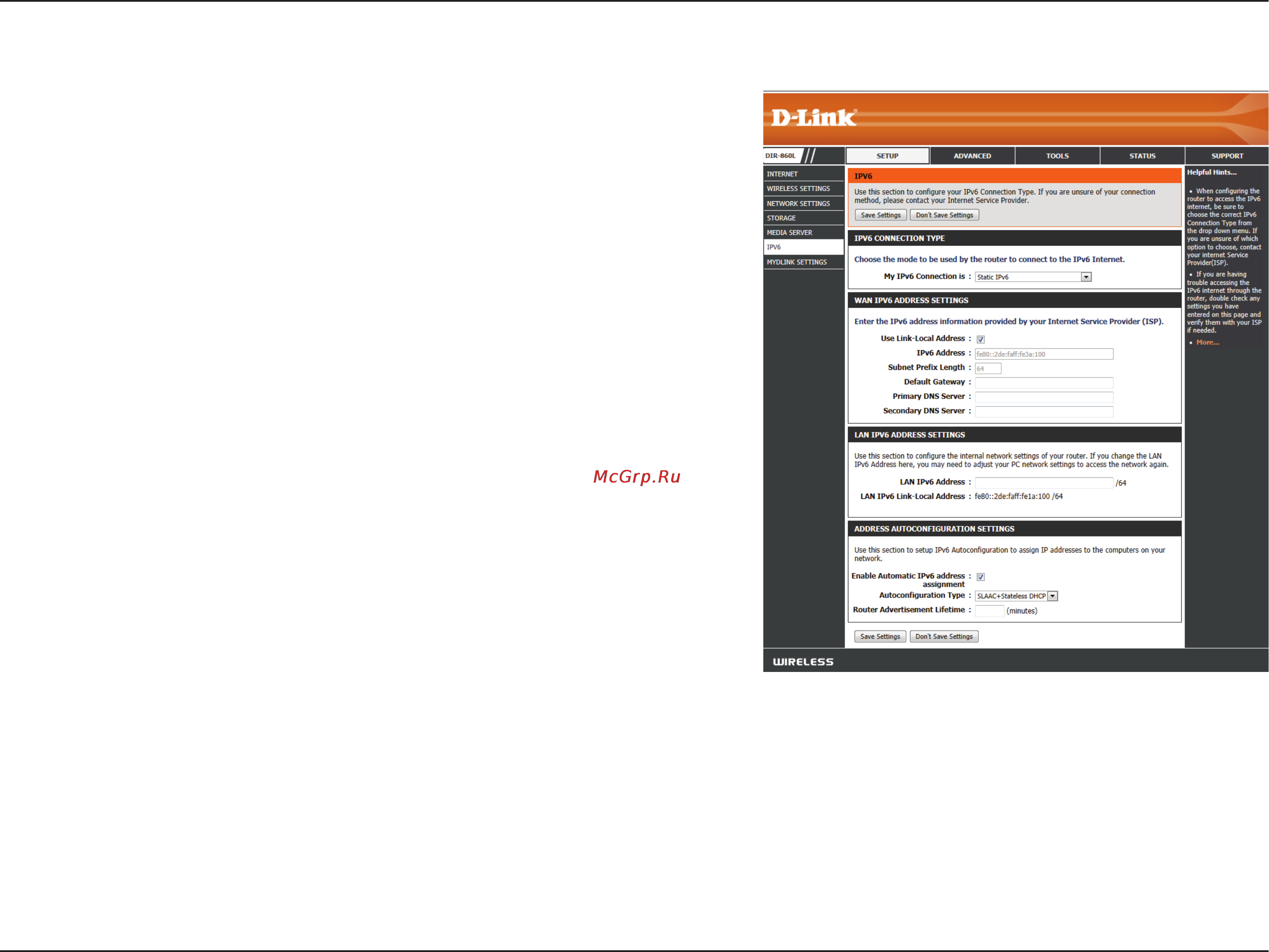

60D-Link DIR-860L User Manual
Section 3 - Conguration
Static IPv6
Select Static.IPv6 from the drop-down menu.
Enter the address settings supplied by your Internet provider (ISP).
Enter a subnet prex length.
Enter the default gateway for your IPv6 connection.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Choose either Stateful.DHCPv6, SLAAC.+.RDNSS or SLAAC.+.Stateless.DHCPv6 from the drop-down menu.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6
Connection Is:
Use Link-Local
Address:
Subnet Prex
Length:
IPv6 Default
Gateway:
Primary/
Secondary IPv6
DNS Servers:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
Router
Advertisement
Lifetime:
