91D-Link DIR-860L User Manual
Section 3 - Conguration
IPv6 Routing
Check the box next to the route you wish to enable.
Enter a specic name to identify this route.
This is the IP address of the router used to reach the specied
destination. You can also enter the IPv6 address prex length
of the packets that will take this route.
The route metric is a value from 1 to 16 that indicates the cost
of using this route. A value of1 is the lowest cost and 15 is the
highest cost.
Use the drop-down menu to specify if the IP packet must use
the WAN or LAN interface to transit out of the Router.
Enter the next hop that will be taken if this route is used.
Click Save.Settings to save the current conguration.
Route List:
Name:
Destination IP/
Prex Length:
Metric:
Interface:
Gateway:

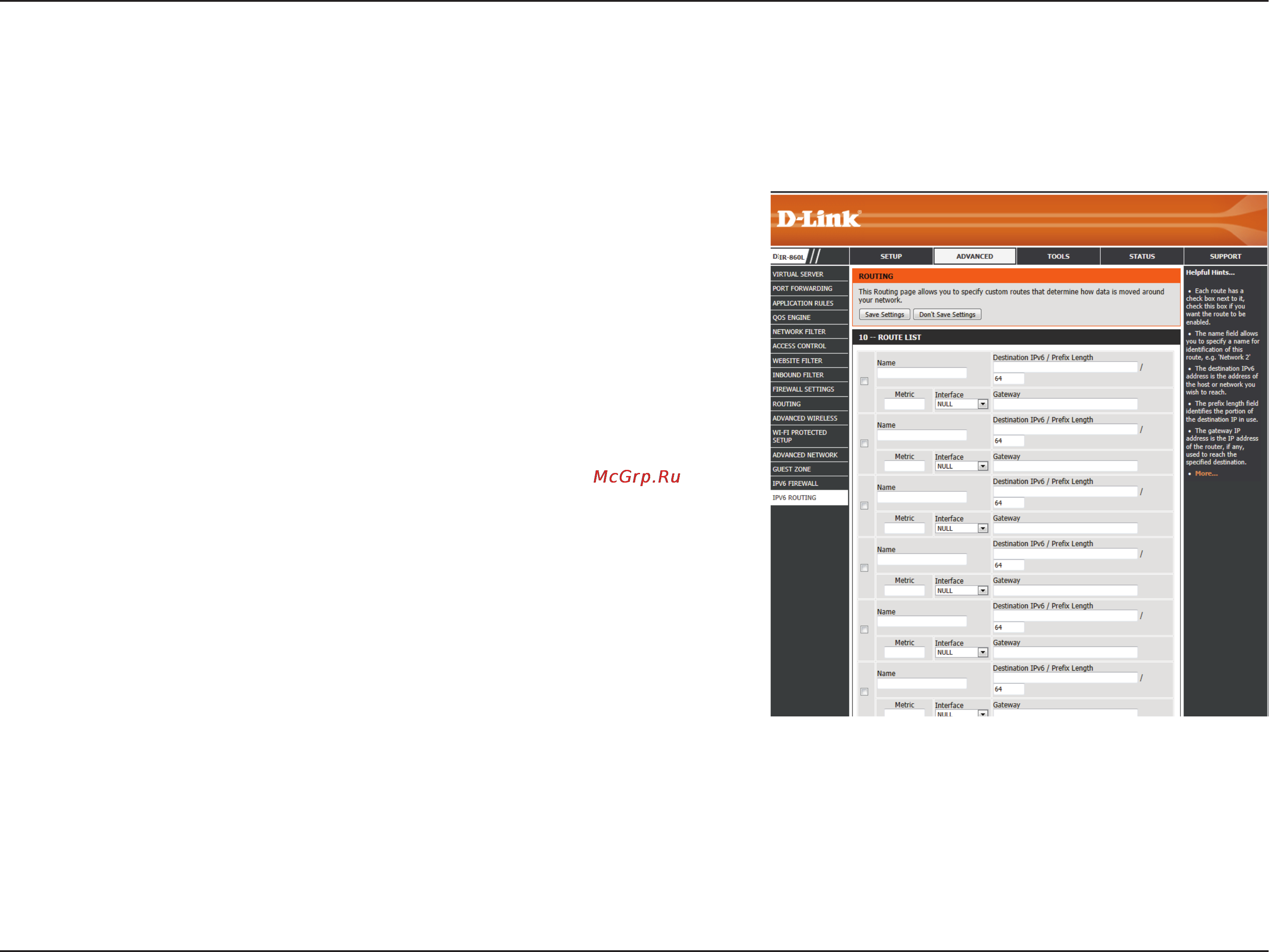

This page allows you to specify custom routes that determine how data is moved around your network.
