38D-Link DIR-860L User Manual

Section 3 - Conguration

Check the box to enable the wireless function. If you do not want to use

wireless, uncheck the box to disable all the wireless functions.

Select the time frame that you would like your wireless network

enabled. The schedule may be set to Always. Any schedule you create

will be available in the drop-down menu. Click New Schedule to create

a schedule.

Service Set Identier (SSID) is the name of your wireless network. Create

a name for your wireless network using up to 32 characters. The SSID is

case-sensitive.

Select one of the following:

Mixed 802.11n, 802.11g, and 802.11b - Select if you are using 802.11n,

802.11g, and 802.11b wireless clients.

Mixed 802.11n and 802.11g - Select if you are using both 802.11n and

802.11g wireless clients.

Mixed 802.11g and 802.11b - Select if you are using both 802.11g and

802.11b wireless clients.

802.11n Only - Select only if all of your wireless clients are 802.11n.

802.11g Only - Select only if all of your wireless clients are 802.11g.

802.11b Only - Select only if all of your wireless clients are 802.11b.

The Auto Channel Scan setting can be selected to allow the DIR-860L to

choose the channel with the least amount of interference.

Indicates the channel setting for the DIR-860L. By default the channel is set

to 6. The channel can be changed to t the channel setting for an existing

wireless network or to customize the wireless network. If you enable Auto

Channel Scan, this option will be greyed out.

Enable Wireless:

Schedule:

Wireless Network

Name:

802.11 Mode:

Enable Auto

Channel Scan:

Wireless Channel:

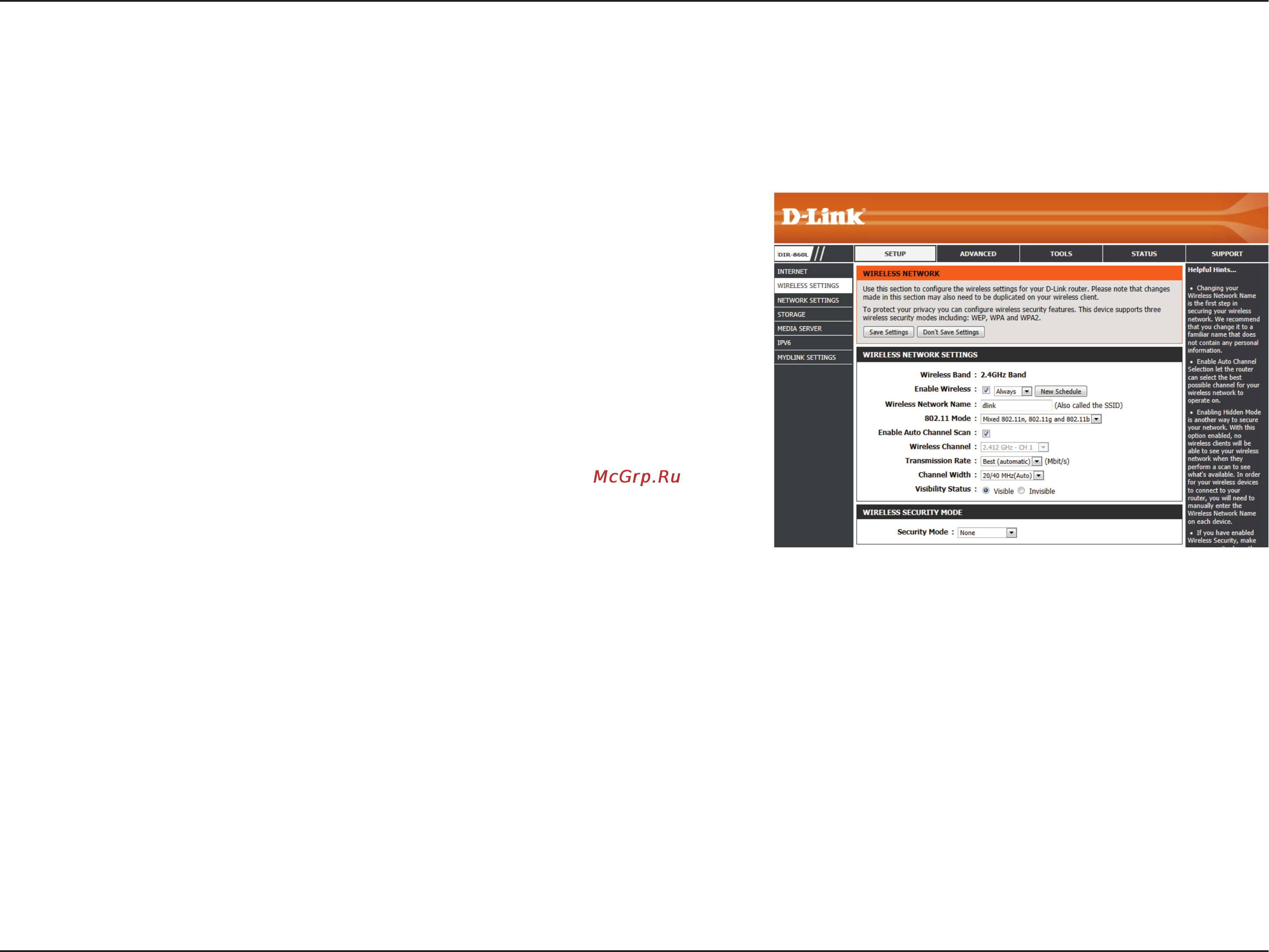

Manual Wireless Settings

802.11n (2.4 GHz)

If you are unfamiliar with the types of wireless security, more information is located in the appendix at the back of this manual.
