Chapter 9 VLAN
MES3500 Series User’s Guide
103

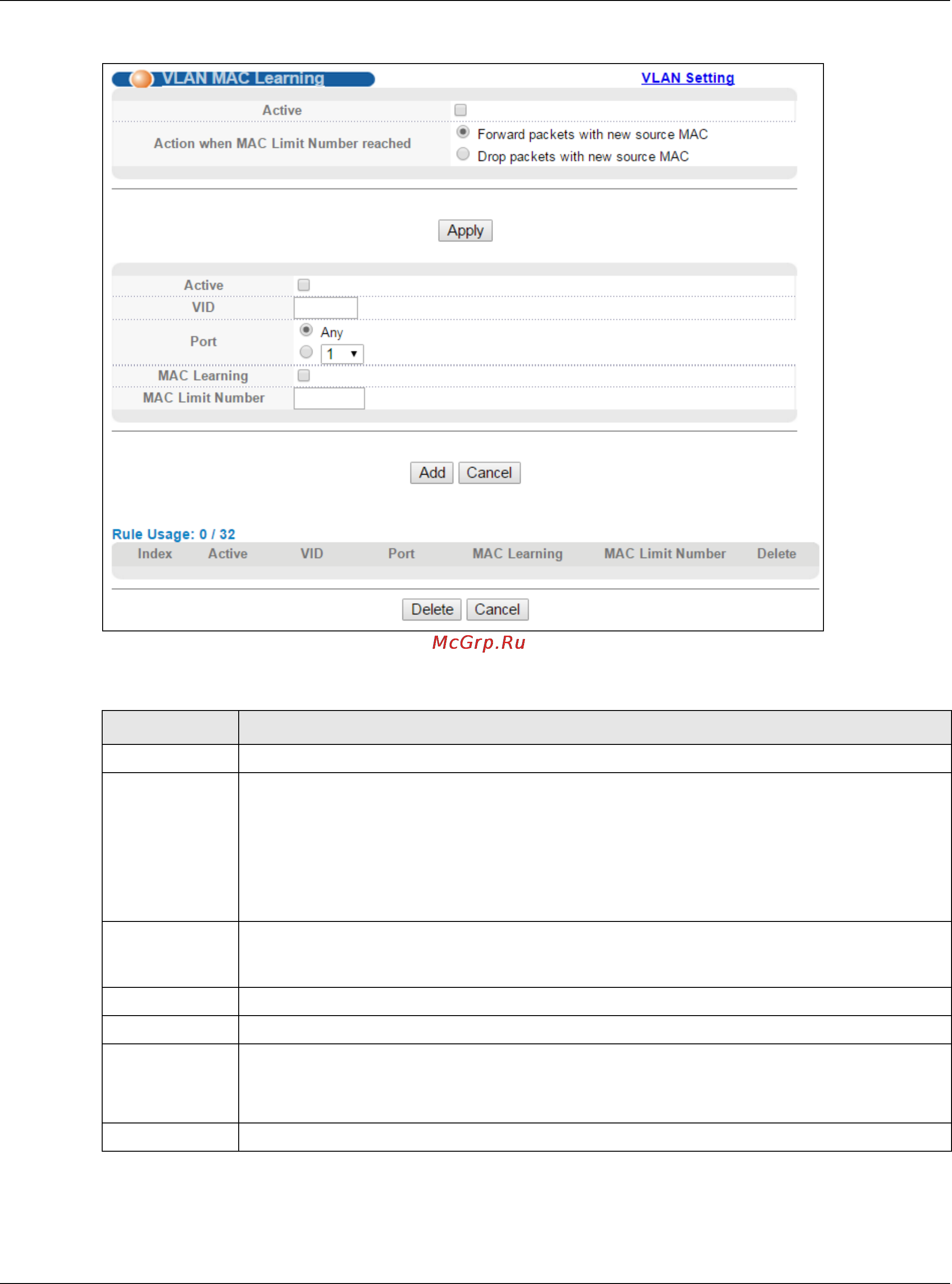

Figure 47 Advanced Application > VLAN > VLAN MAC Learning
The following table describes the related labels in this screen.
Table 24 Advanced Application > VLAN > VLAN MAC Learning
LABEL DESCRIPTION
Active Select this check box to enable the MAC address learning limit on the Switch.
Action when
MAC Limit
Number
reached
Specify the action the Switch takes when the the maximum number of MAC addresses which
a port can learn in a VLAN is reached.
Select Forward packets with new source MAC to allow the Switch to forward new
packets even when the packet’s MAC address is not learned.
Select Drop packets with new source MAC to have the Switch discard any packet whose
MAC address is not learmed.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Active Select this option to activate this rule.
VID Enter the identification number of the VLAN to which the port belongs.
Port Select Any to apply the rule to all ports in the specified VLAN.
To specify a port, select the second choice and enter the number of the port to which this
rule is applied.
MAC Learning Select this option to enable the MAC address learning limit in this rule.
