Chapter 18 Port Authentication
MES3500 Series User’s Guide
158
18.2.3 Activate MAC Authentication
Use this screen to activate MAC authentication. In the Port Authentication screen click MAC
Authentication to display the configuration screen as shown.

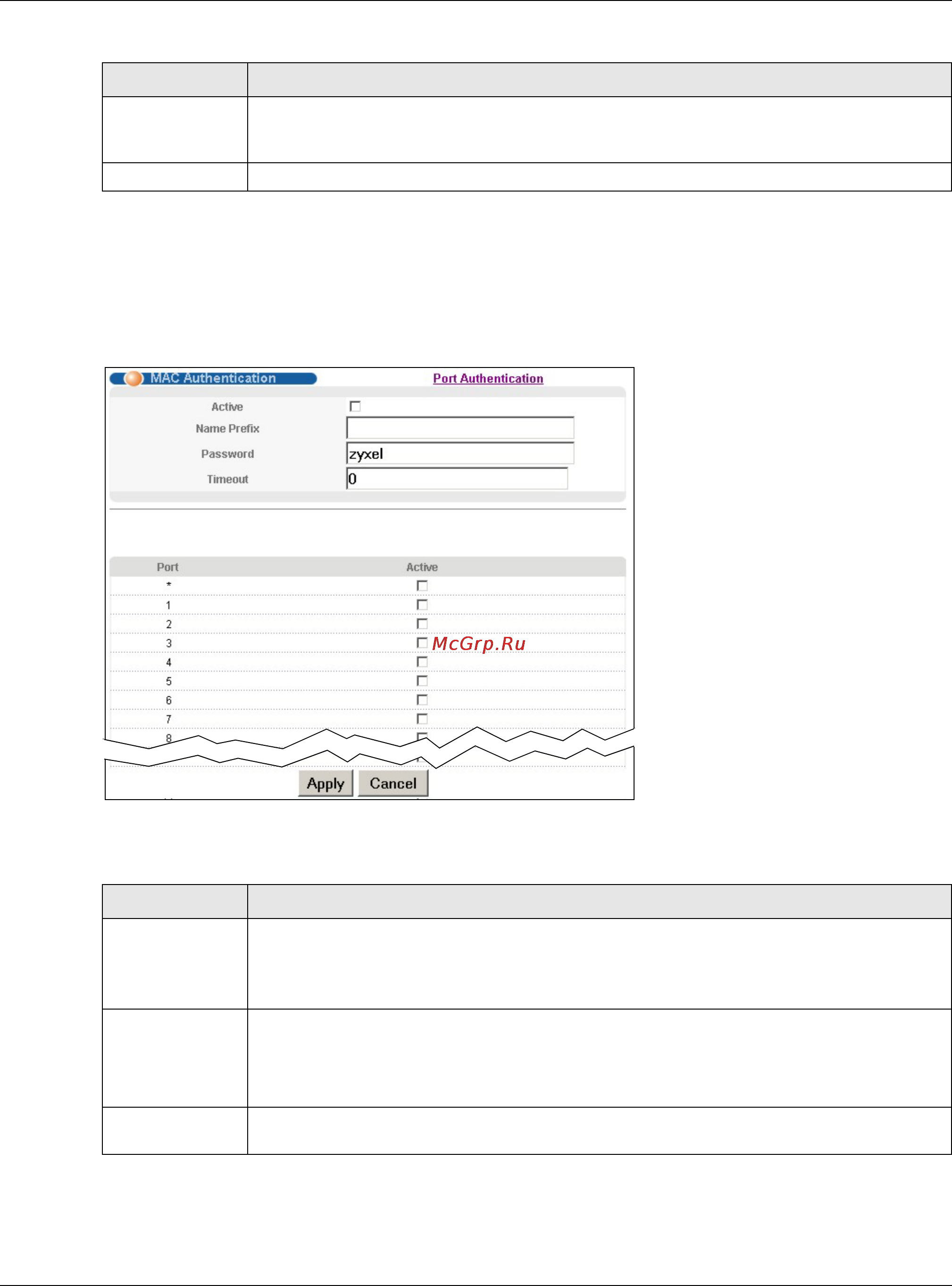

Figure 86 Advanced Application > Port Authentication > MAC Authentication
The following table describes the labels in this screen.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel
to save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 52 Advanced Application > Port Authentication > 802.1x > Guest VLAN (continued)
LABEL DESCRIPTION
Table 53 Advanced Application > Port Authentication > MAC Authentication
LABEL DESCRIPTION
Active Select this check box to permit MAC authentication on the Switch.
Note: You must first enable MAC authentication on the Switch before configuring it on each
port.
Name Prefix Type the prefix that is appended to all MAC addresses sent to the RADIUS server for
authentication. You can enter up to 32 printable ASCII characters.
If you leave this field blank, then only the MAC address of the client is forwarded to the
RADIUS server.
Password Type the password the Switch sends along with the MAC address of a client for
authentication with the RADIUS server. You can enter up to 32 printable ASCII characters.
