Chapter 18 Port Authentication
MES3500 Series User’s Guide
153

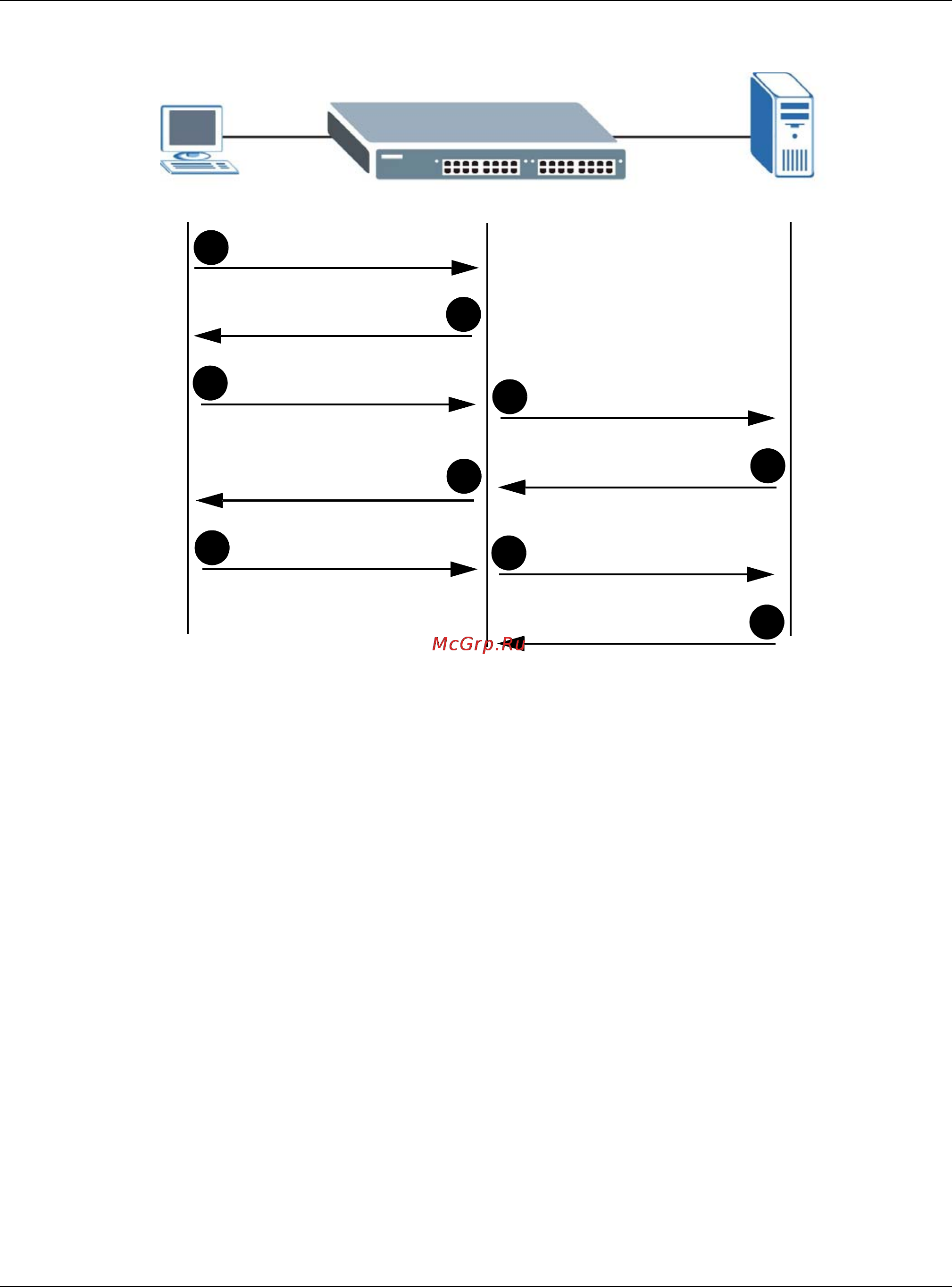

Figure 80 IEEE 802.1x Authentication Process
18.1.2 MAC Authentication
MAC authentication works in a very similar way to IEEE 802.1x authentication. The main difference
is that the Switch does not prompt the client for login credentials. The login credentials are based
on the source MAC address of the client connecting to a port on the Switch along with a password
configured specifically for MAC authentication on the Switch.
New Connection
Access Request
Authentication Reply
1
8
9
Challenge Response
7
6
Session Granted/Denied
Login Credentials
Identity Request
3
2
Authentication Request
Access Challenge
4
5
Challenge Request
