Chapter 25 Multicast
MES3500 Series User’s Guide
198

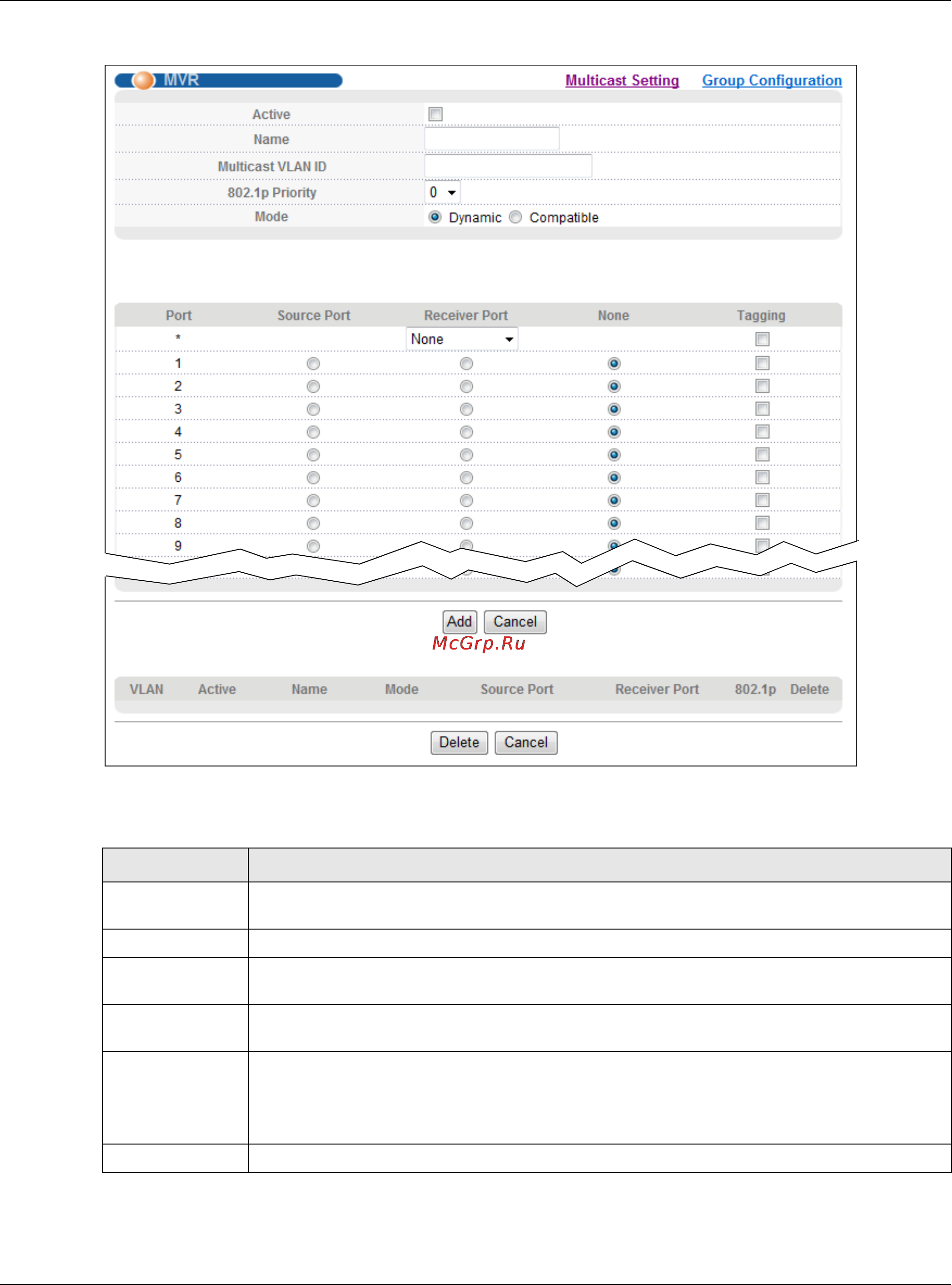

Figure 110 Advanced Application > Multicast > Multicast Setting > MVR
The following table describes the related labels in this screen.
Table 76 Advanced Application > Multicast > Multicast Setting > MVR
LABEL DESCRIPTION
Active Select this check box to enable MVR to allow one single multicast VLAN to be shared
among different subscriber VLANs on the network.
Name Enter a descriptive name (up to 32 printable ASCII characters) for identification purposes.
Multicast VLAN
ID
Enter the VLAN ID (1 to 4094) of the multicast VLAN.
802.1p Priority Select a priority level (0-7) with which the Switch replaces the priority in outgoing IGMP
control packets (belonging to this multicast VLAN).
Mode Specify the MVR mode on the Switch. Choices are Dynamic and Compatible.
Select Dynamic to send IGMP reports to all MVR source ports in the multicast VLAN.
Select Compatible to set the Switch not to send IGMP reports.
Port This field displays the port number on the Switch.
