Chapter 29 VLAN Mapping
MES3500 Series User’s Guide
241

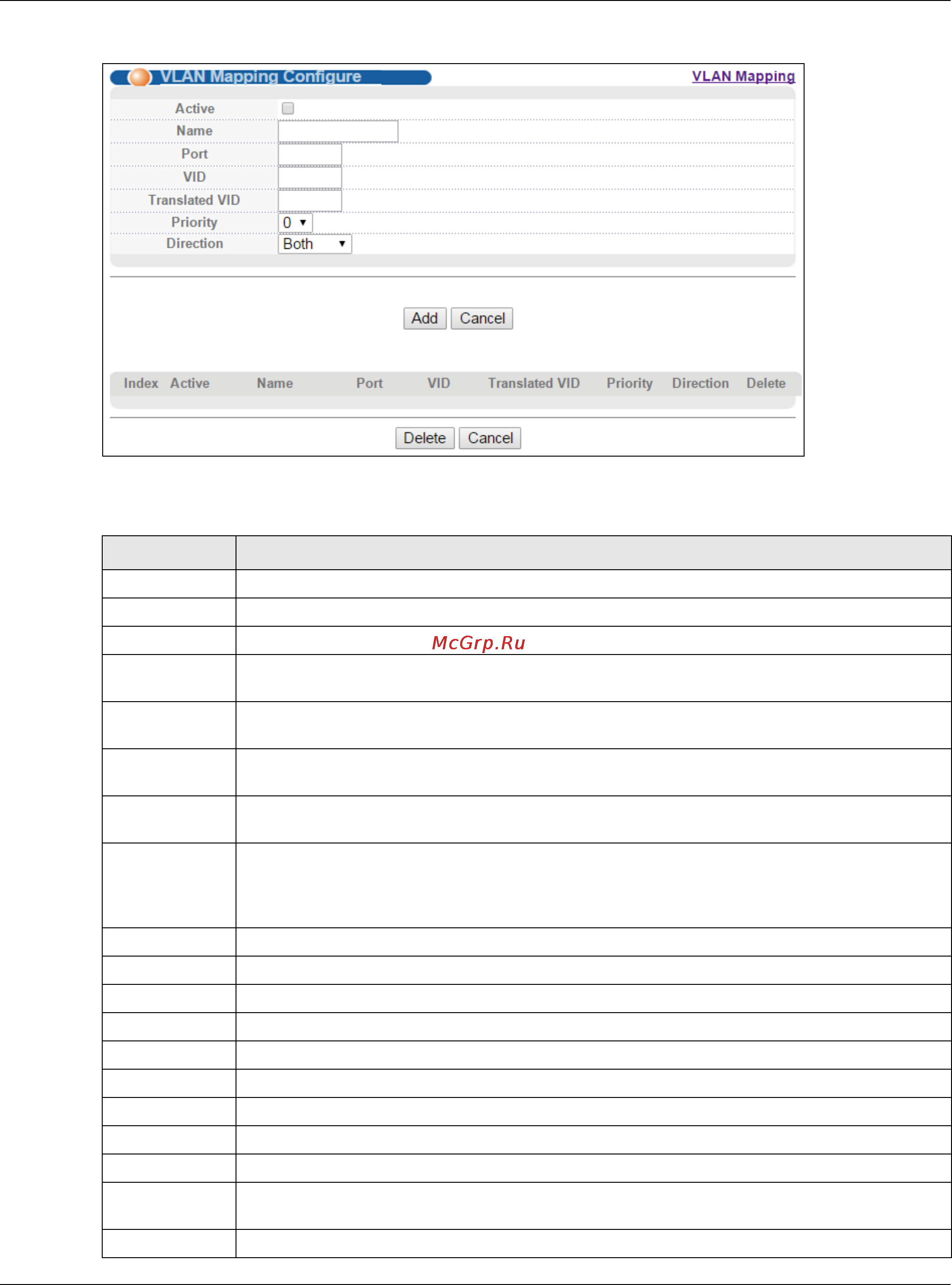

Figure 143 Advanced Application > VLAN Mapping > VLAN Mapping Configuration
The following table describes the labels in this screen.
Table 102 Advanced Application > VLAN Mapping > VLAN Mapping Configuration
LABEL DESCRIPTION
Active Check this box to activate this rule.
Name Enter a descriptive name (up to 32 printable ASCII characters) for identification purposes.
Port Type a port to be included in this rule.
VID Enter a VLAN ID from 1 to 4094. This is the VLAN tag carried in the packets and will be
translated into the VID you specified in the Translated VID field.
Translated VID Enter a VLAN ID (from 1 to 4094) into which the customer VID carried in the packets will be
translated.
Priority Select a priority level (from 0 to 7). This is the priority level that replaces the customer
priority level in the tagged packets or adds to the untagged packets.
Direction Specify the direction of the traffic to which the rule is applied. Choices are Egress
(outgoing), Ingress (incoming) and Both.
Add Click Add to insert the entry in the summary table below and save your changes to the
Switch’s run-time memory. The Switch loses these changes if it is turned off or loses power,
so use the Save link on the top navigation panel to save your changes to the non-volatile
memory when you are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
Index This is the number of the VLAN mapping entry in the table.
Active This shows whether this entry is activated or not.
Name This is the descriptive name for this rule.
Port This is the port number to which this rule is applied.
VID This is the customer VLAN ID in the incoming packets.
Translated VID This is the VLAN ID that replaces the customer VLAN ID in the tagged packets.
Priority This is the priority level that replaces the customer priority level in the tagged packets.
Direction This is the direction of the traffic to which the rule is applied.
Delete Check the rule(s) that you want to remove in the Delete column and then click the Delete
button.
Cancel Click Cancel to clear the Delete check boxes.
