Chapter 36 Differentiated Services
MES3500 Series User’s Guide
274
36.3.2 Configuring DSCP Profiles
Use this screen to configure DSCP profiles. Click the DSCP Profile link in the 2-Rate 3 Color
Marker screen to display the screen as shown next.

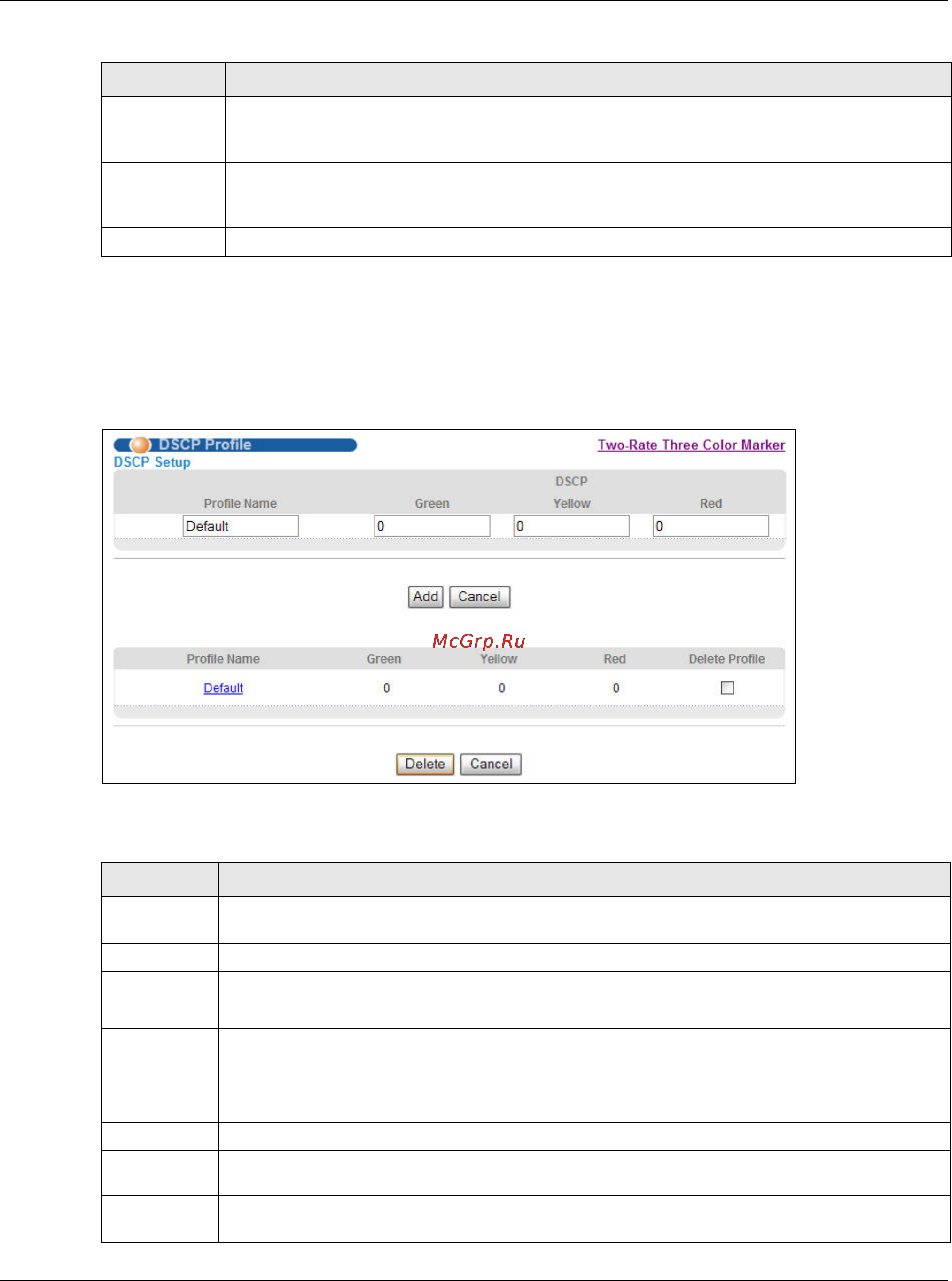

Figure 170 IP Application > DiffServ > 2-rate 3 Color Marker > DSCP Profile
The following table describes the labels in this screen.
DSCP Select the DSCP profile that you want to apply to packets on this port. In a DSCP profile you
can specify the DSCP values to assign to packets based on the color they are marked via
TRTCM.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top navigation panel to
save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Table 122 IP Application > DiffServ > 2-rate 3 Color Marker (continued)
LABEL DESCRIPTION
Table 123 IP Application > DiffServ > 2-rate 3 Color Marker > DSCP Profile
LABEL DESCRIPTION
Profile Name Type a descriptive name (up to 32 printable ASCII characters) for this profile. This is for
identification only.
Green Specify the DSCP value to use for packets with low packet loss priority.
Yellow Specify the DSCP value to use for packets with medium packet loss priority.
Red Specify the DSCP value to use for packets with high packet loss priority.
Add Click Add to insert a new DSCP profile to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top navigation
panel to save your changes to the non-volatile memory when you are done configuring.
Cancel Click Cancel to reset the above fields to your previous configuration.
Profile Name This field displays the name of the DSCP priofile. Click the name to edit the profile settings.
Green This field displays the DSCP value to use for packets with low packet loss priority in this profile.
Yellow This field displays the DSCP value to use for packets with medium packet loss priority in this
profile.
