Chapter 21 Classifier
MES3500 Series User’s Guide
169

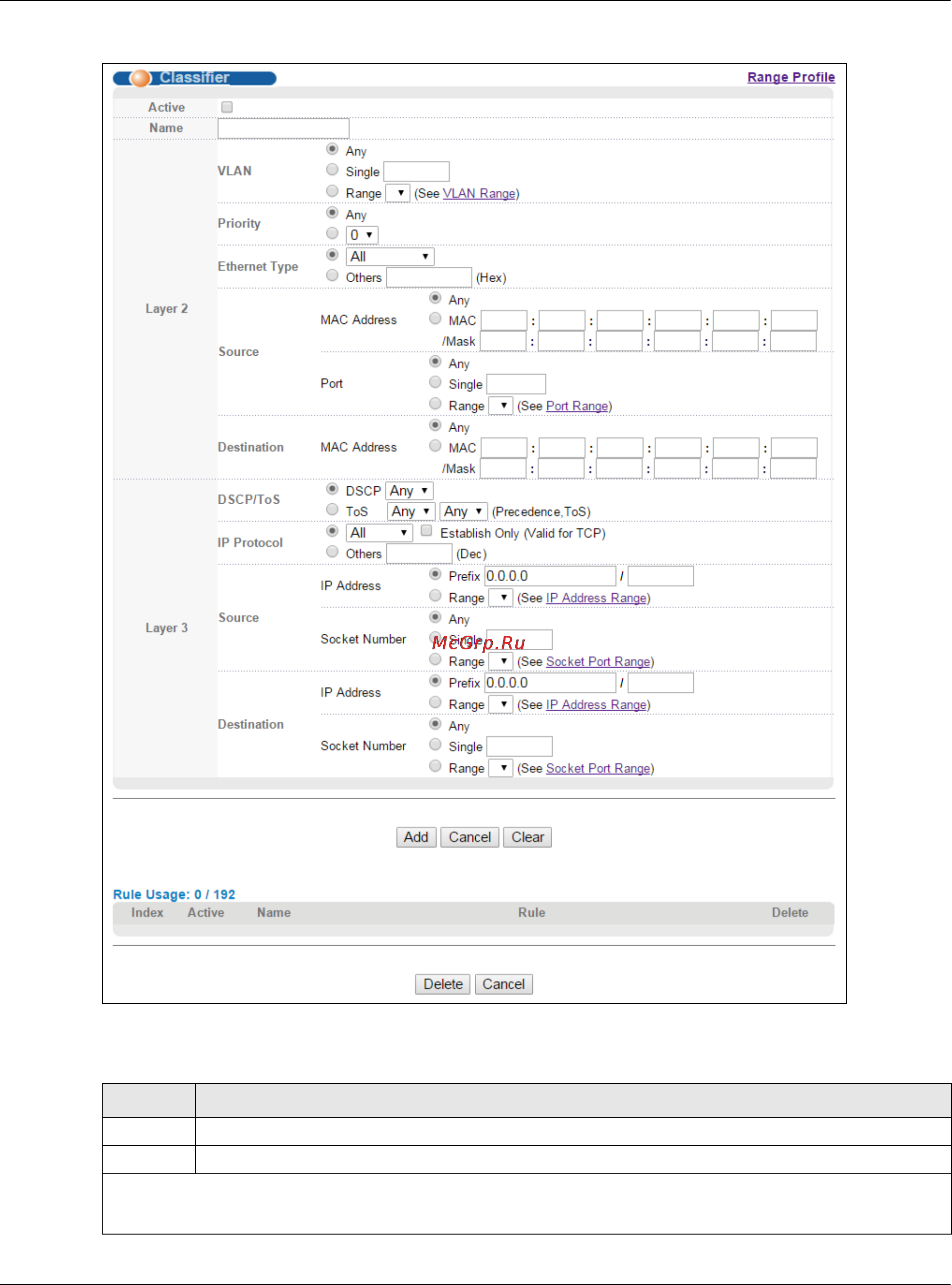

Figure 93 Advanced Application > Classifier
The following table describes the labels in this screen.
Table 59 Advanced Application > Classifier
LABEL DESCRIPTION
Active Select this option to enable this rule.
Name Enter a descriptive name for this rule for identifying purposes.
Layer 2
Specify the fields below to configure a layer-2 classifier.
