Chapter 2 Hardware Installation and Connection
MES3500/MGS3520 Series User’s Guide
24

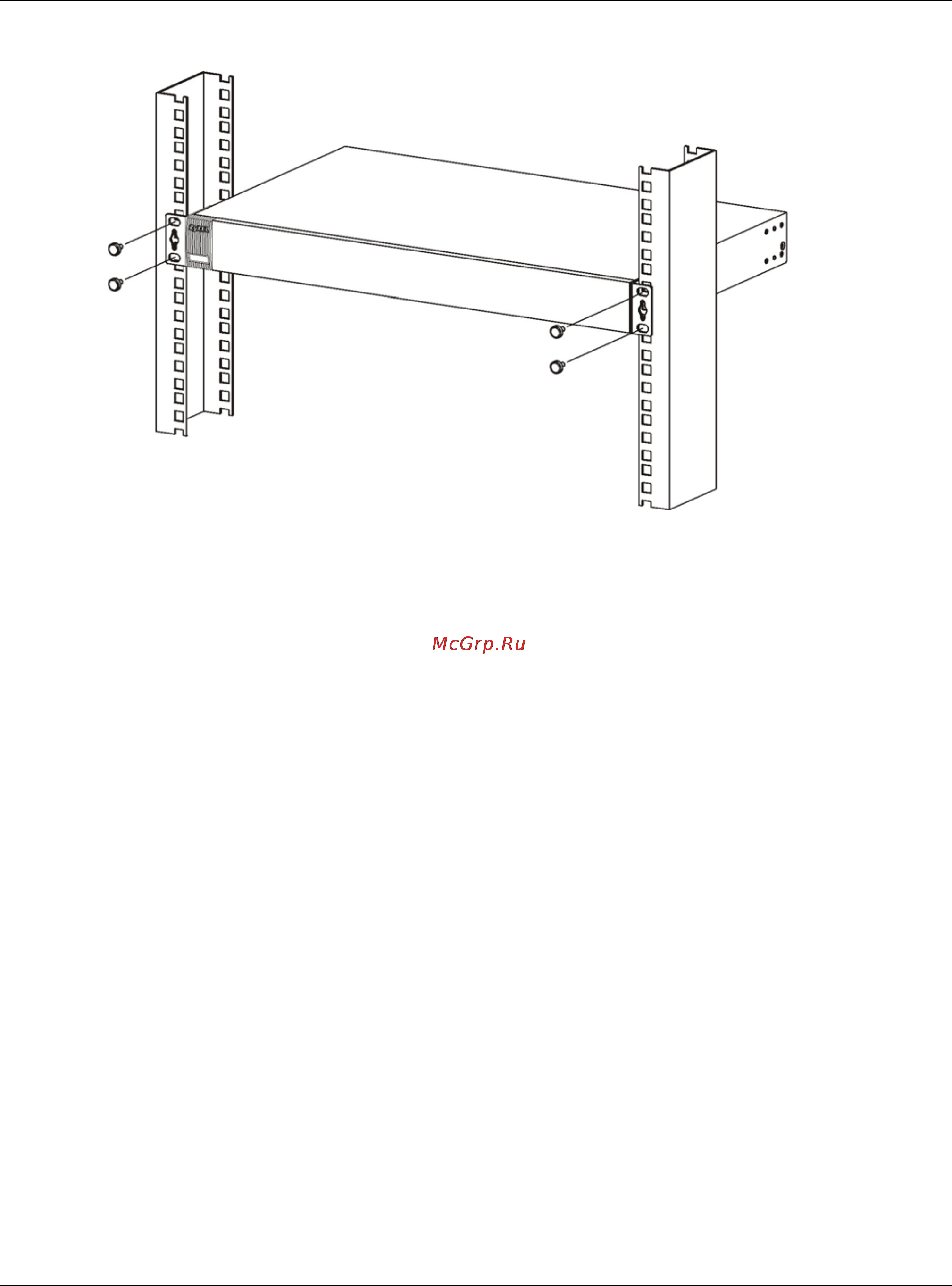

Figure 6 Mounting the Switch on a Rack
2 Using a #2 Philips screwdriver, install the M5 flat head screws through the mounting bracket holes
into the rack.
3 Repeat steps 1 and 2 to attach the second mounting bracket on the other side of the rack.
