Supermicro SYS-6027R-TRF [51/122] 3 i o ports
![Supermicro SYS-6027R-TRF [51/122] 3 i o ports](/views2/1190248/page51/bg33.png)
Chapter 5: Advanced Serverboard Setup
5-3

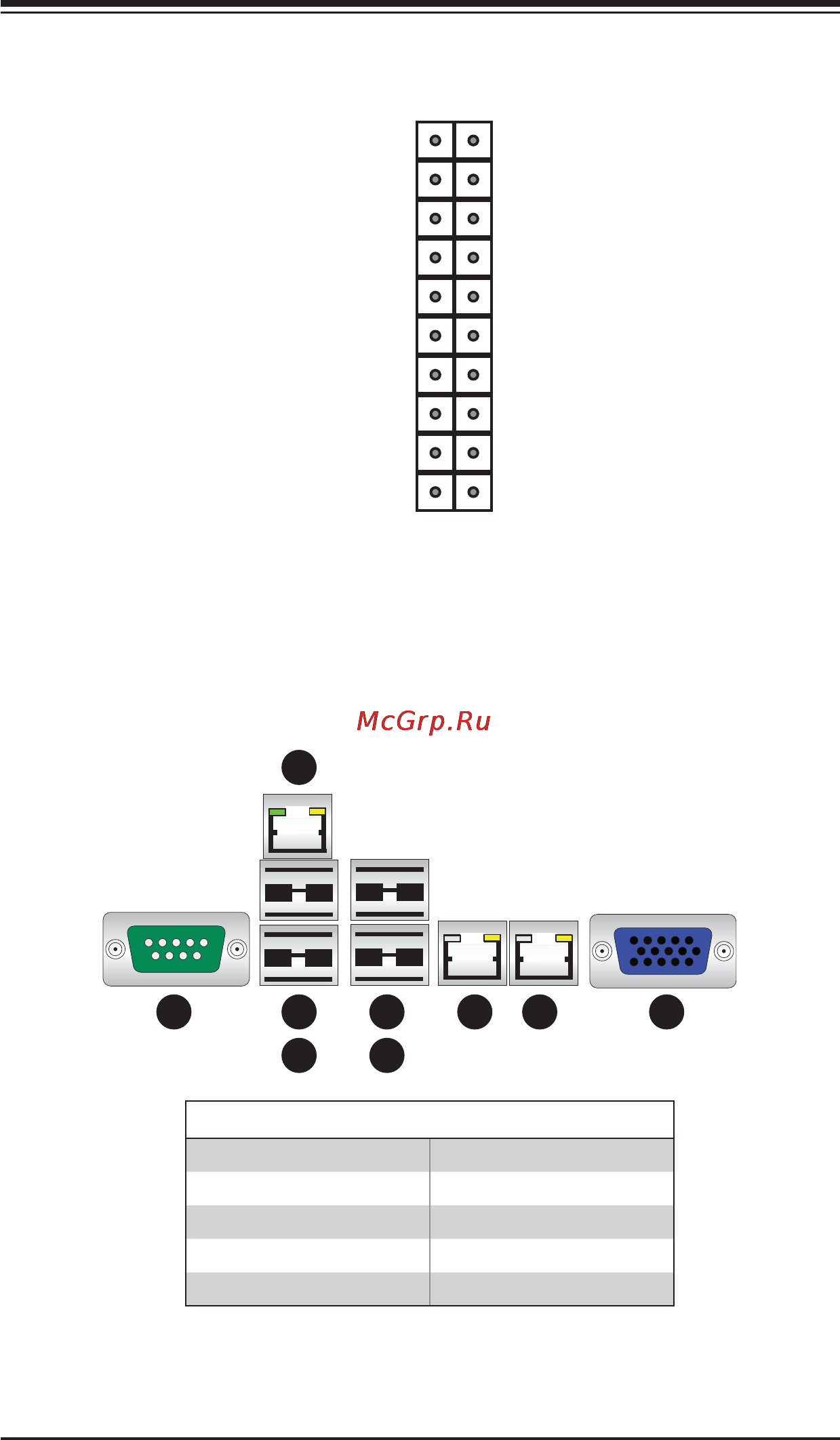

Figure 5-1. Front Control Panel Header Pins (JF1)
5-3 I/O Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-2 below for the colors and locations of the various I/O ports.
Figure 5-2. Rear Panel I/O Ports
Rear I/O Ports
1. COM Port 1 (Turquoise) 6. Back Panel USB Port 3
2. Back Panel USB Port 0 7. Gigabit LAN 1
3. Back Panel USB Port 1 8. Gigabit LAN 2
4. IPMI_Dedicated LAN 9. Back Panel VGA (Blue)
5. Back Panel USB Port 2
NMI
x (key)
Vcc
Vcc
Vcc
Vcc
Vcc
Vcc
Reset
Power
Ground
x (key)
Power LED
HDD LED
NIC1
NIC2
OH/Fan Fail LED
Power Fail LED
Ground
Ground
2 1
20 19
1
2 5
4
3 6 7
1
8
1
9
