Supermicro SYS-6027R-TRF [81/122] 3 chassis cover

Chapter 6: Advanced Chassis Setup

6-3

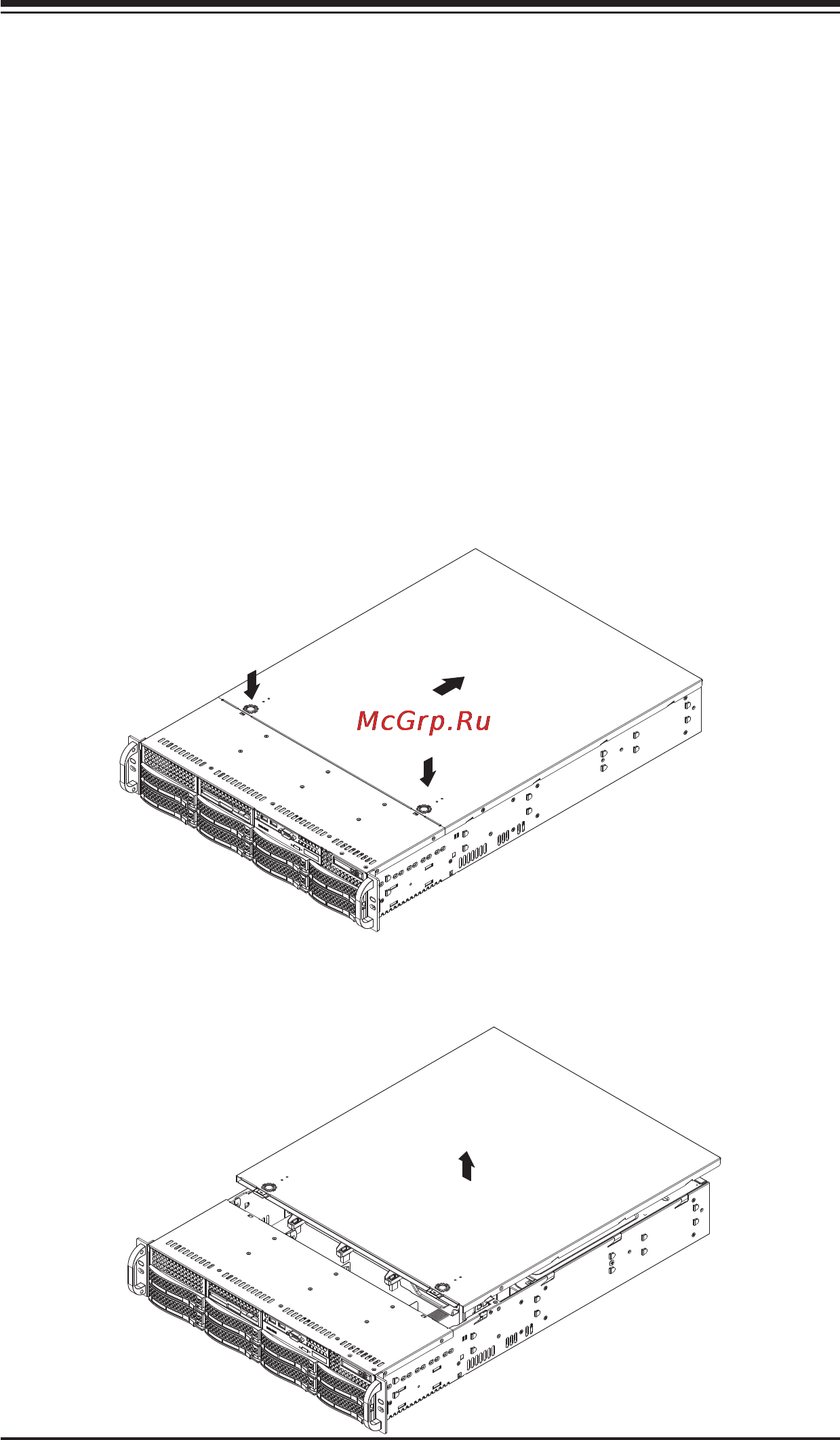

Figure 6-2. Accessing the Inside of the System

6-3 Chassis Cover

Before operating the SC825 chassis for the ﬁ rst time, it is important to remove the

protective ﬁ lm covering the top of the chassis, in order to allow for proper ventilation

and cooling.

Removing the Chassis Cover and Protective Film (Figure 6-2)

1. Remove the two screws which secure the top cover onto the chassis as

shown above.

2. Lift the top cover up and off the chassis.

3. Peel off the protective ﬁ lm covering the top cover and the top of the chassis

4. Check that all ventilation openings on the top cover and the top of the chassis

are clear and unobstructed.
