Chapter 5: Advanced Serverboard Setup
5-25

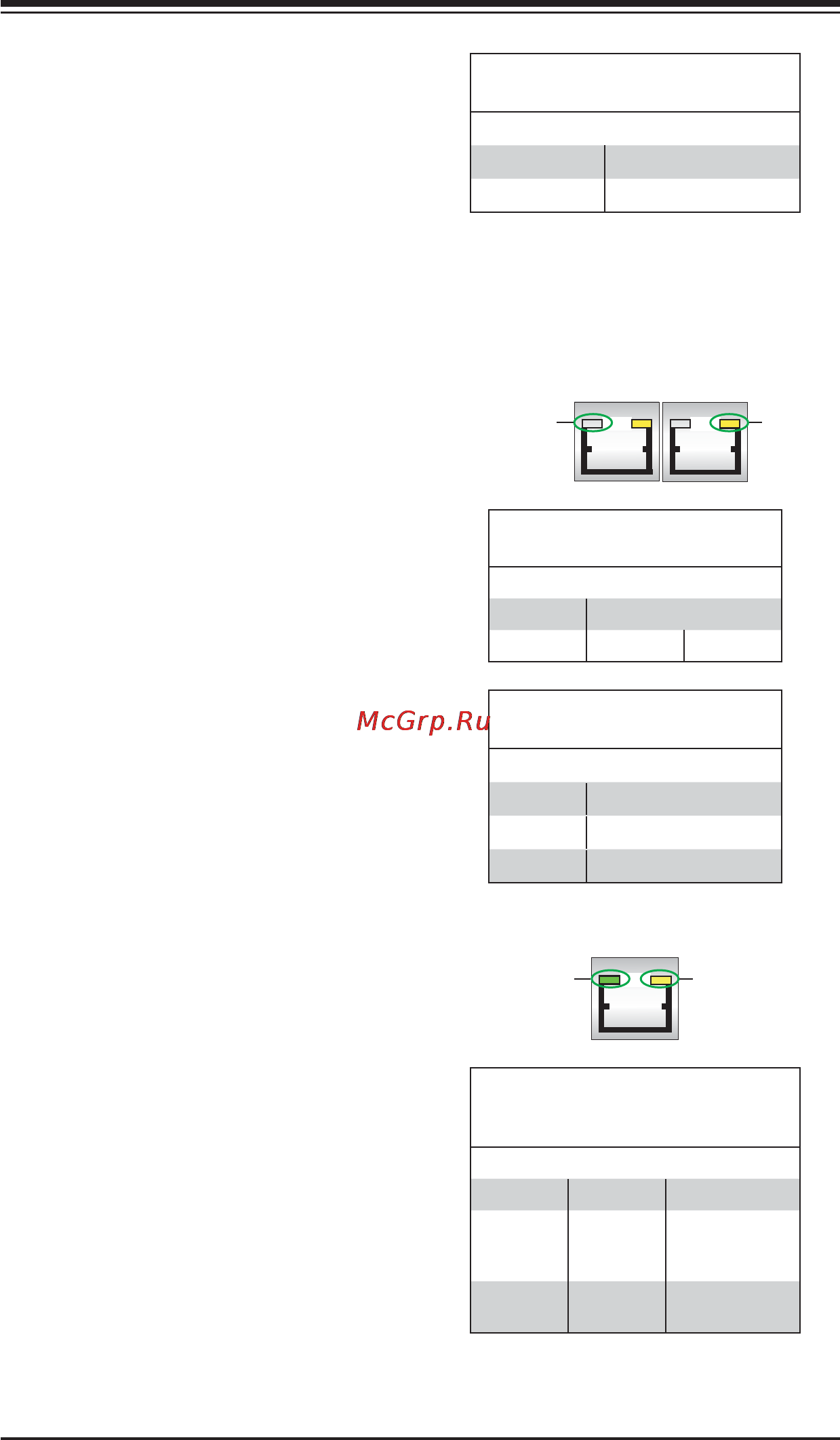

5-10 Onboard Indicators
IPMI Dedicated LAN LEDs
In addition to LAN Ports 1/2, an IPMI
Dedicated LAN is also located on
the I/O Backplane. The amber LED
on the right indicates connection
and activity; while the green LED on
the left indicates the speed of the
connection. See the tables at right for
more information.
IPMI LAN
Link/Speed LED (Left)
& Activity LED (Right)
Color Status Defi nition
Off Off No Connection
Green:
Solid
Link/
Speed
(Left)
100 Mb/s
Amber
Blinking
Activity
(Right)
Active
IPMI LAN
Activity LEDLink LED
GLAN LEDs
There are two LAN ports (LAN1/2) on
the motherboard. Each Ethernet LAN
port has two LEDs. The Yellow LED
on the right indicates connection and
activity. The Link LED on the left side
may be green, amber or off to indicate
the speed of the connection. See the
tables at right for more information.
LAN Connection Speed
Indicator (Left) LED Settings
LED Color Defi nition
Off 10 MHz
Green 100 MHz
Amber 1 GHz
Activity
LED
Link Speed
LED
GLAN LED
GLAN Activity Indicator
(Right) LED Settings
Color Status Defi nition
Off No Connections
Yellow Flashing Active
Write_Protect Enable
Close pins 1/2 of Jumper JWP1 to
enable Write_Protect support for
system security and data integrity.
See the table on the right for jumper
settings.
Write_Protect Enable/Disable
Jumper Settings (JWP1)
Jumper Setting Defi nition
Pins 1-2 Normal (Default)
Pins 2-3 Write_Protect Enabled
