Chapter 1: Introduction
1-3

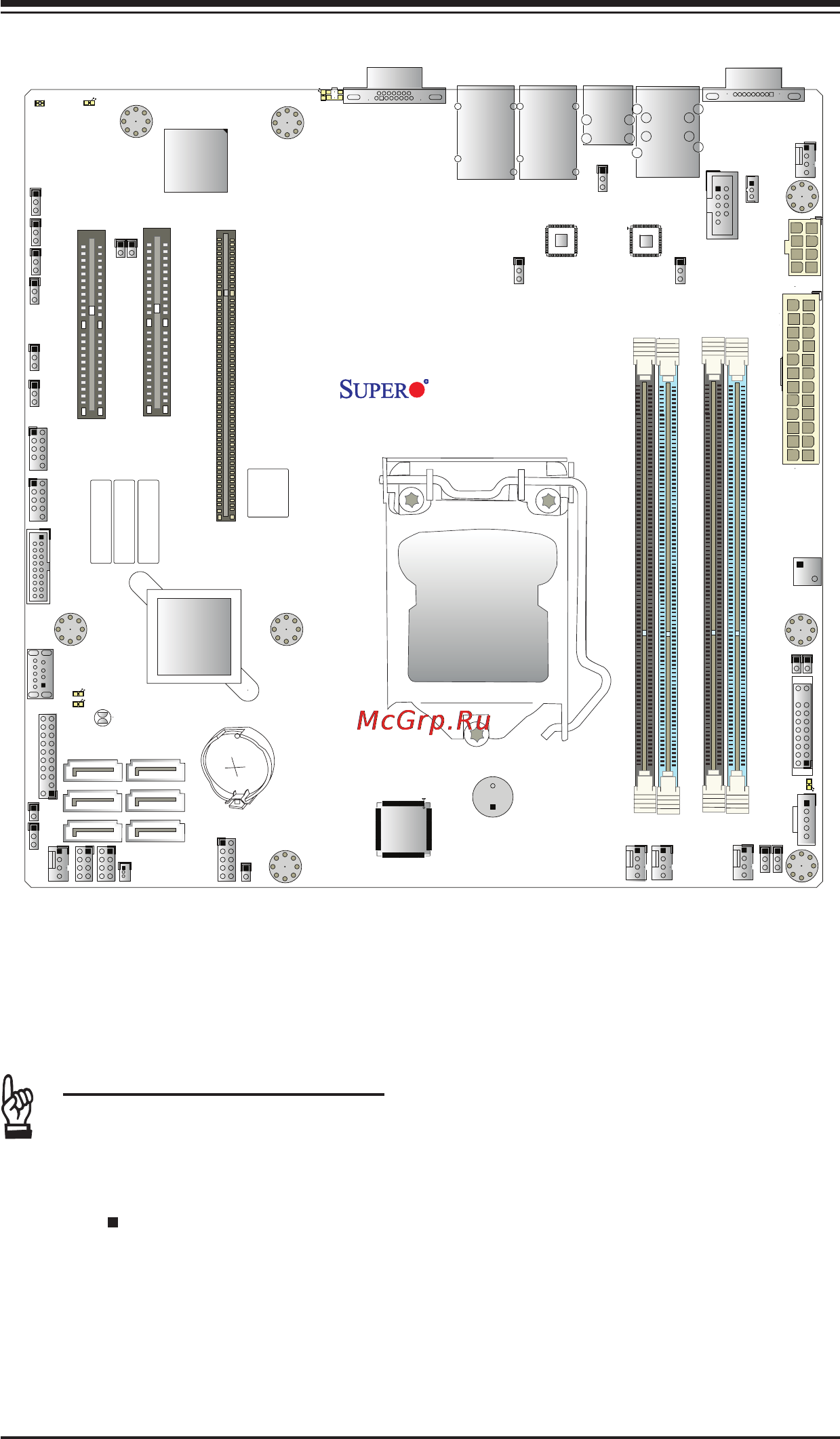

X10SLH-F Motherboard Layout
Important Notes to the User
• See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front
panel connections.
• " " indicates the location of "Pin 1".
• Jumpers/components not indicated are for testing only.
• When LE3 (Onboard Power LED Indicator) is on, system power is on. Unplug
the power cable before installing or removing any components.
IPMI CODE
BIOS
LICENSE
BAR CODE
MAC CODE
FAN2
FAN3
FAN4
FAN1
FANA
JLED1
JWD1
JPG1
JPME1
JPME2
JPL2
JPL1
JPUSB1
J19
J18
LE3
LE5
LE4
JPW1
JPW2
JI2C1
JI2C2
JL1
J3
J4
JPI2C1
T-SGPIO1
T-SGPIO2
JSD1
JSTBY1
SPKR1
JBT1
JF1
J14
SW1
COM2
USB1 (3.0)
USB8/9
USB12/13
_LAN
IPMI
VGA
COM1
LAN1
DIMMB2
DIMMA2
USB4/5
CPU SLOT6 PCI-E 3.0 X8 (in X16)
CPU
Rev. 1.01
X10SLH-F
USB2/3(3.0)
I-SATA3
I-SATA4
I-SATA2
I-SATA1
I-SATA0
I-SATA5
CPU SLOT5 PCI-E 3.0 X8
PCH SLOT4 PCI-E 2.0 X2/4(INX8)
DIMMB1
DIMMA1
LAN2
PCH
LAN CTRL
LAN CTRL
Battery
TPM/Port 80
BMC
Vertical
USB0 (3.0)
