Chapter 2: Installation
2-21
IPMI CODE
BIOS
LICENSE
BAR CODE
MAC CODE
Rev. 1.01
X10SLH-F
Front Control Panel

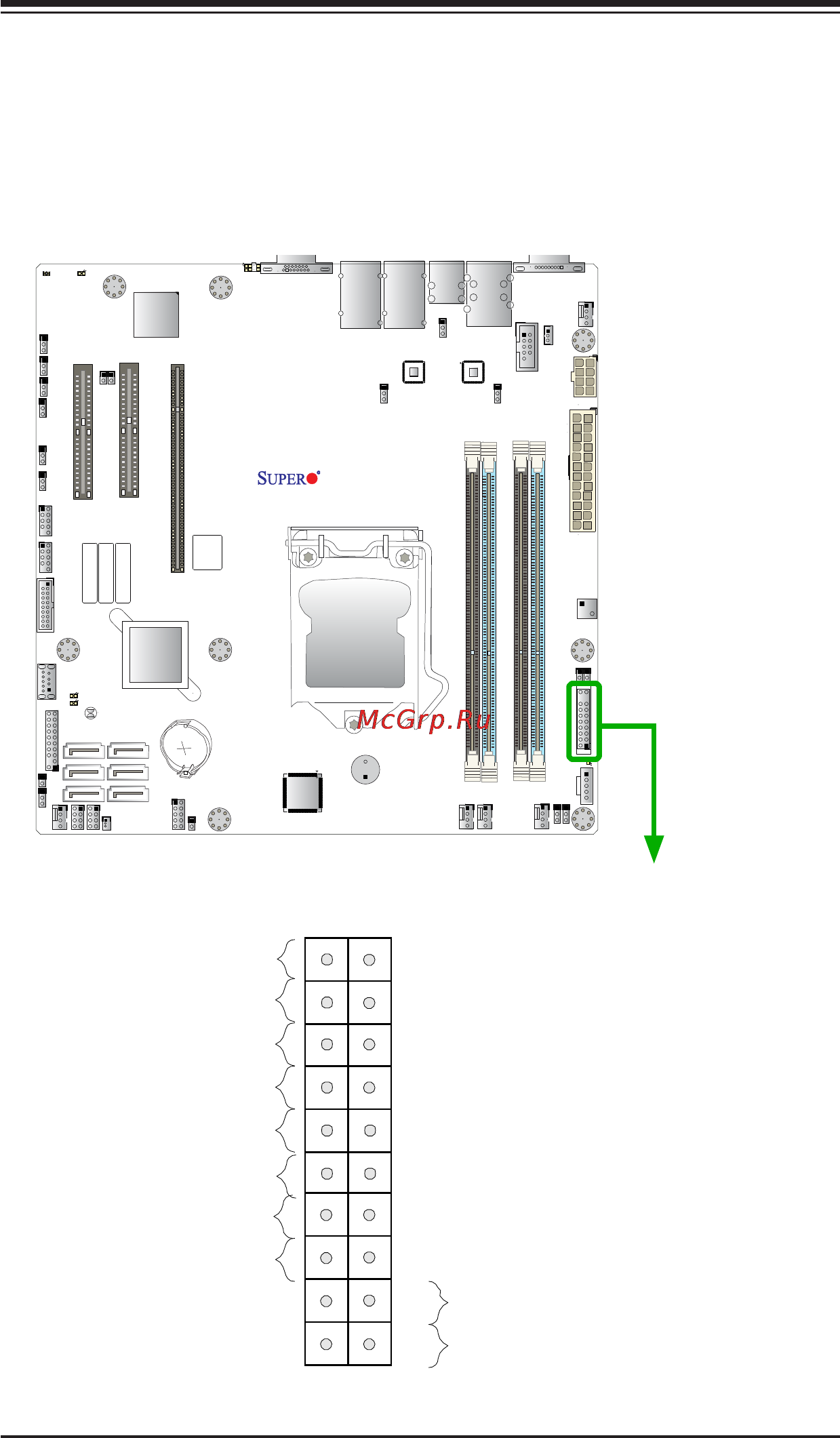

JF1 contains header pins for various buttons and indicators that are normally located
on a control panel at the front of the chassis. These connectors are designed spe-
cically for use with Supermicro chassis. See the gure below for the descriptions
of the front control panel buttons and LED indicators. Refer to the following section
for descriptions and pin denitions.
JF1 Header Pins
Power Button
Blue+ (OH/Fan Fail/
PWR FaiL/UID LED)
1
LAN1_Activity
LED
Reset Button
2
Power Fail LED
HDD LED
PWRLED
Reset
PWR
Red+ (Blue LED Cathode)
Ground
Ground
1920
LED_Anode+
X
Ground
NMI-
X
LAN2 Activity
LED
LED_Anode+
LED_Anode+
LED_Anode+
LED_Anode+
