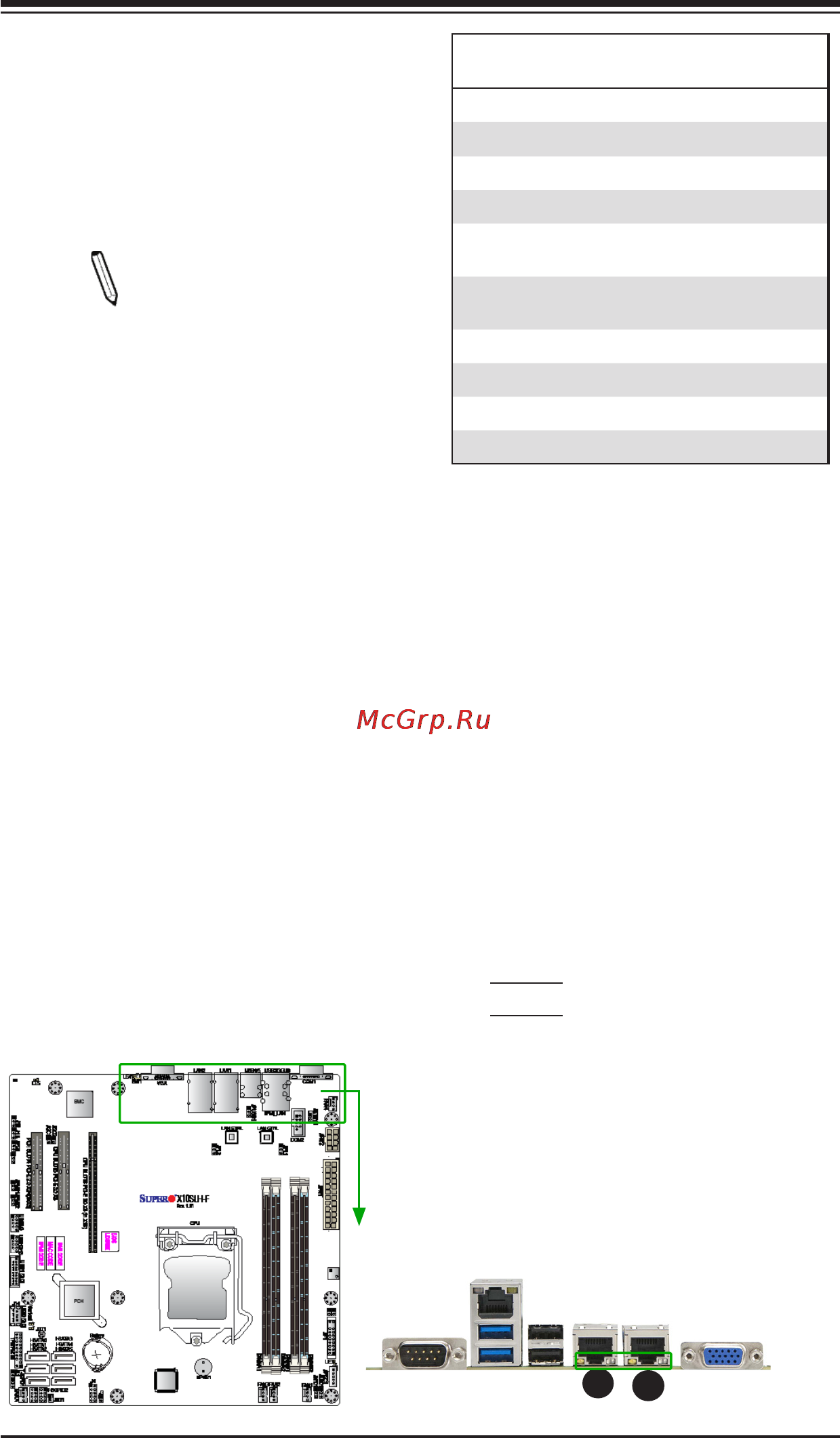

Chapter 2: Installation

2-19

Ethernet Ports

Two Gigabit Ethernet ports (LAN1/

LAN2) are located next to the VGA

Connector on the I/O Backpanel to

provide network connections. These

ports accept RJ45 type cables.

Note: Please refer to the

LED Indicator Section for

LAN LED information.

LAN Ports

Pin Denition

Pin# Denition

1 P2V5SB 10 SGND

2 TD0+ 11 Act LED

3 TD0- 12 P3V3SB

4 TD1+ 13 Link 100 LED

(Green, +3V3SB)

5 TD1- 14 Link 1000 LED

(Yellow, +3V3SB)

6 TD2+ 15 Ground

7 TD2- 16 Ground

8 TD3+ 17 Ground

9 TD3- 88 Ground

(NC: No Connection)

A. LAN1

B. LAN2
