Chapter 2: Installation
2-39
2-10 SATA Connections
SATA 3.0 Connections

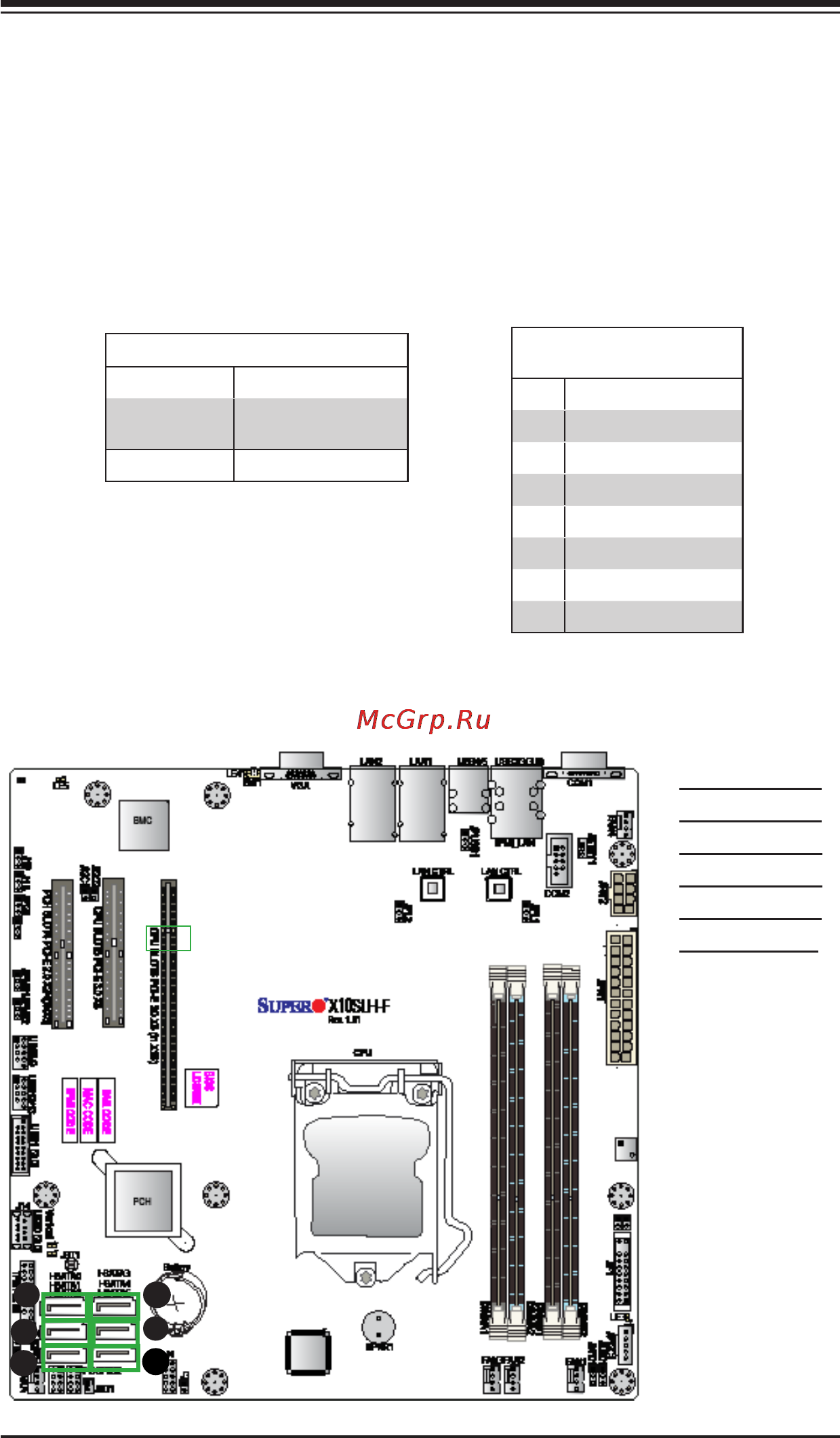

Six Serial ATA (SATA) 3.0 connectors (I-SATA0-5) are located on the X10SLH-F.
These SATA 3.0 ports are supported by the Intel C226 PCH chip. The SATA 3.0
ports support RAID 0, 1, 10, and 5; while the SATA 2.0 ports support RAID 0 and 1.
These Serial Link connections provide faster data transmission than legacy Parallel
ATA. See the table on the right for pin denitions.
SATA 2.0/3.0 Connectors
Pin Denitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
A. I-SATA 3.0 #0
B. I-SATA 3.0 #1
C. I-SATA 3.0 #2
D. I-SATA 3.0 #3
E. I-SATA 3.0 #4
F. I-SATA 3.0 #5
X10SLH-F SATA Connector Types
Port# Connection Type
I-SATA 0-5 SATA 3.0/6 Gb/s
RAID 0, 1, 10, 5
Supported by Intel C226 PCH-Exp.
D
E
F
C
A
B
