Chapter 2: Installation

2-29

A. DOM PWR

B. Standby PWR

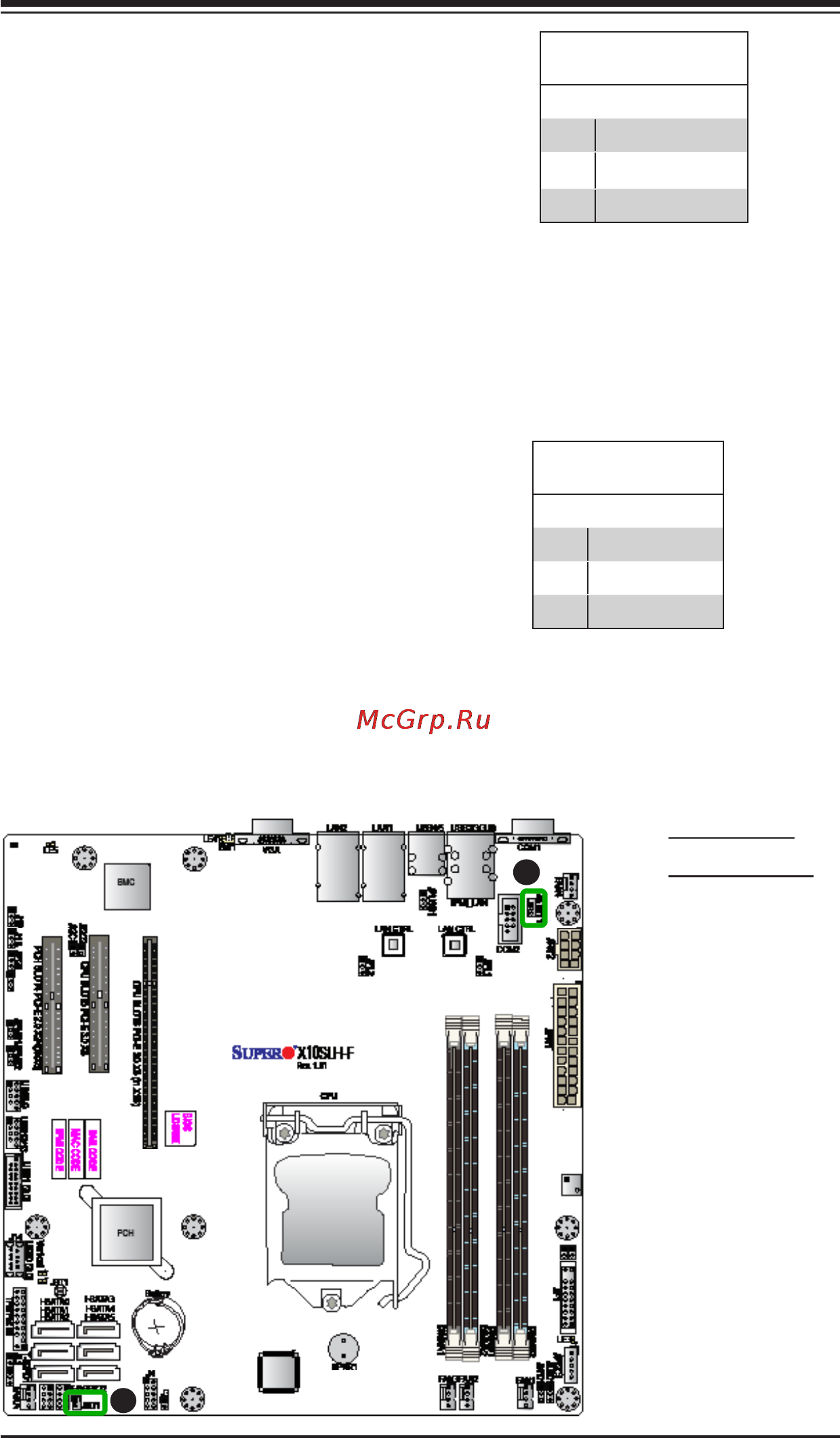

DOM PWR Connector (JSD1)

The Disk-On-Module (DOM) power

connector, located at JSD1, provides

5V (Gen1/Gen) power to a solid state

DOM storage device connected to one

of the SATA ports. See the table on the

right for pin denitions.

DOM PWR

Pin Denitions

Pin# Denition

1 5V

2 Ground

3 Ground

Standby Power Header

The Standby Power header is located

at STBY1 on the motherboard. See

the table on the right for pin deni-

tions.

Standby Power

Pin Denitions

Pin# Denition

1 +5V Standby

2 Ground

3 No Connection
