TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

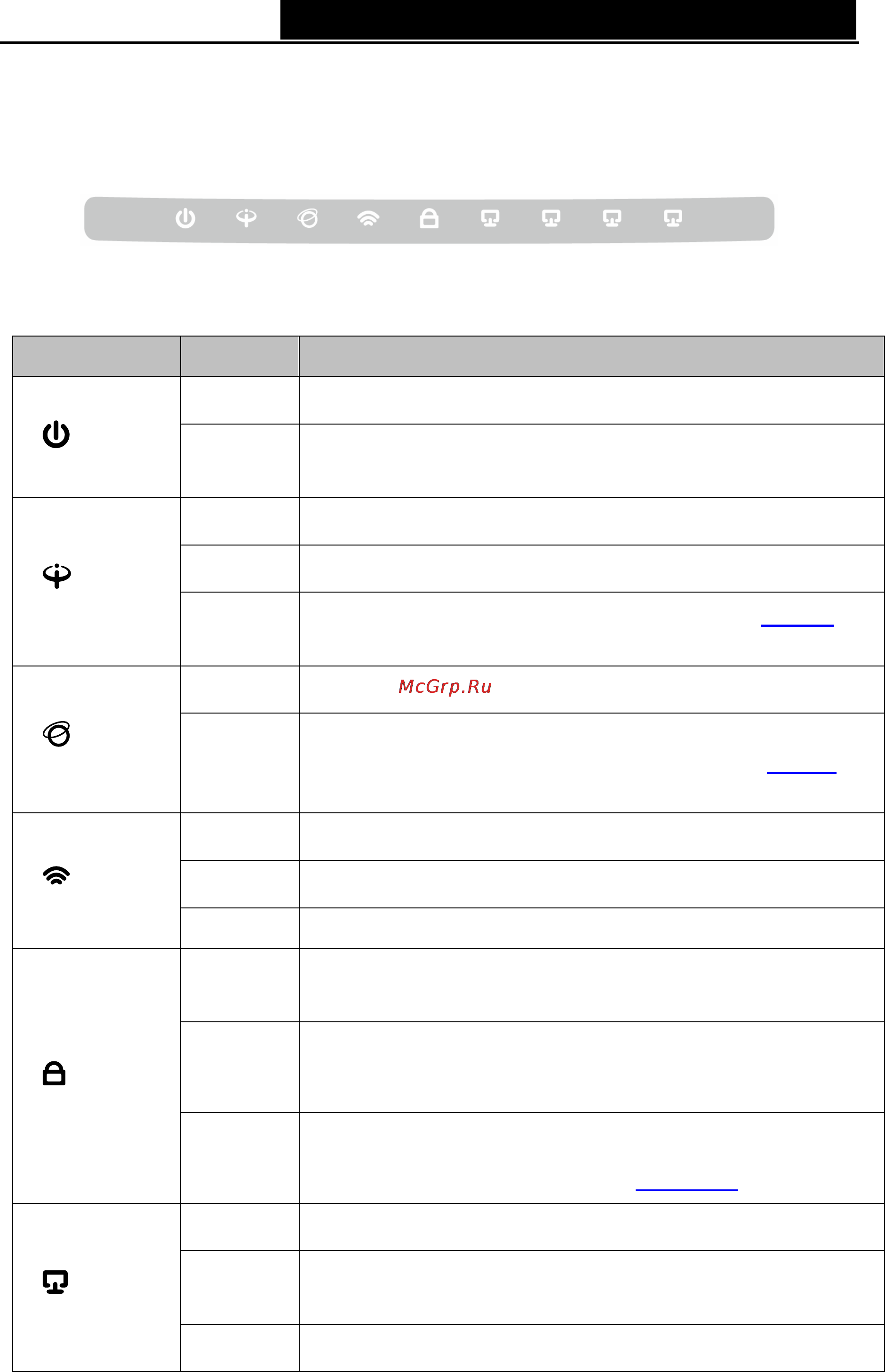

1.3 Product Appearance
1.3.1 The Front Panel
The router’s LEDs are located on the front panel (View from left to right).
Figure 1-1
LED Explanation:
Name Status Indication
On
The modem router is powered on.
(Power)
Off
The modem router is off. Please ensure that the power adapter is
connected correctly.
On
ADSL line is synchronized and ready to use.
Flash
The ADSL negotiation is in progress.
(ADSL)
Off
ADSL synchronization fails. Please refer to Note 1
for
troubleshooting.
On
The network is available with a successful Internet connection.
(Internet)
Off
There is no successful Internet connection or the modem router
is operating in Bridge mode. Please refer to Note 2
for
troubleshooting.
On
Wireless is enabled.
Flash
The modem router is sending or receiving data over Wi-Fi.
(Wi-Fi)
Off Wireless is disabled.
On
A wireless device has been successfully added to the network by
WPS function.
Flash
WPS handshaking is in process and will continue for about 2
minutes. Please press the WPS button on other wireless devices
that you want to add to the network while the LED is flashing.
(WPS)
Off
The WPS function is disabled or the wireless device fails to be
added to the network in 2 minutes after WPS function is enabled.
For more information, please refer to WPS Setup.
On
There is a device connected to this LAN port.
Flash
The modem router is sending or receiving data over this LAN
port.
(LAN1-4)
Off
There is no device connected to this LAN port.
3
