TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide



Note:

1) If the ADSL LED is off, please check your Internet connection first. Refer to 2.3 Connecting

the Modem Router for more information about how to make Internet connection correctly. If

you have already made a right connection, please contact your ISP to make sure if your

Internet service is available now.

2) If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off,

please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet

configuration. You may need to check this part of information with your ISP and make sure

everything have been input correctly. Refer to 4.2 Device Info

for more information.

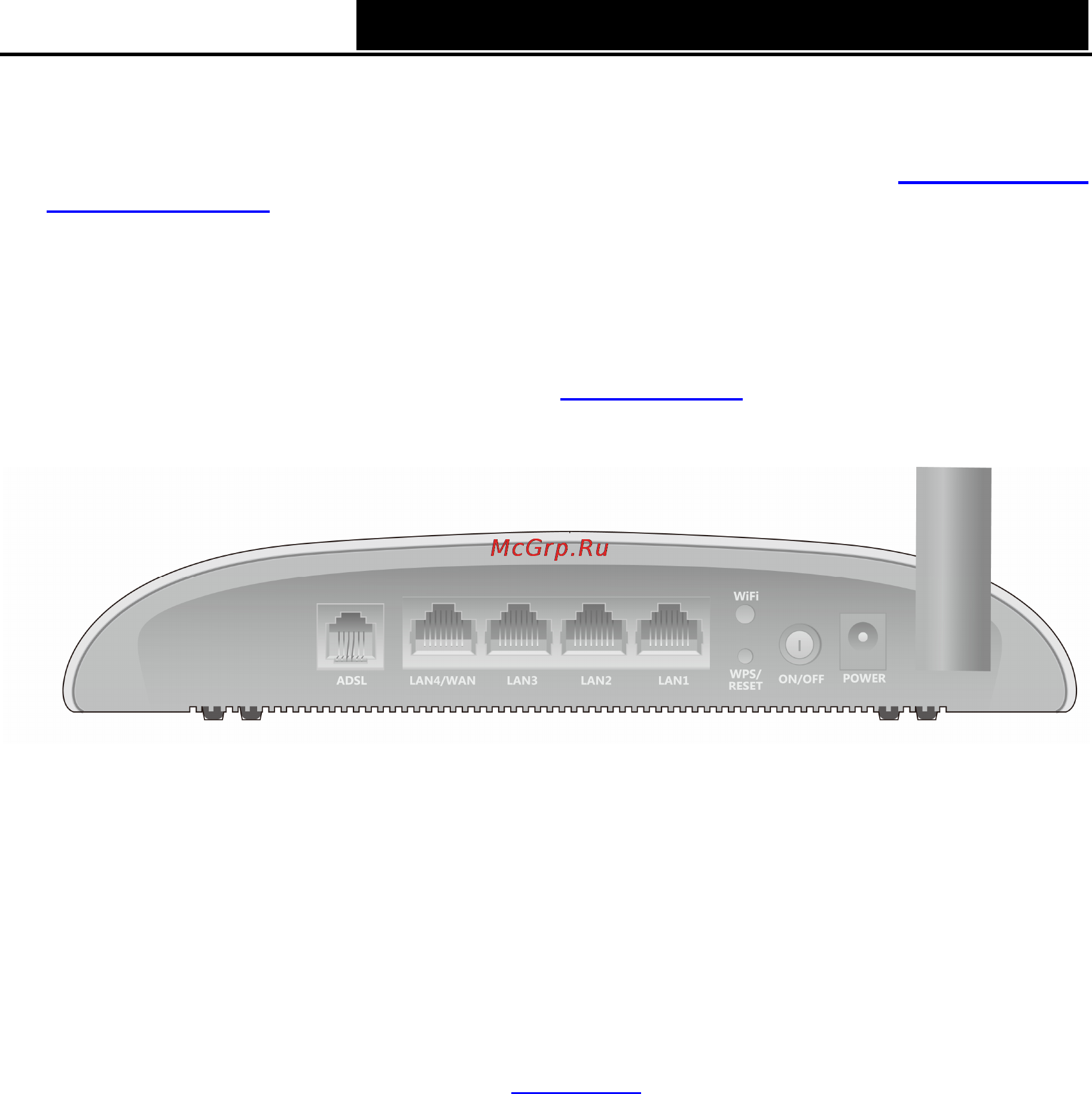

1.3.2 The Back Panel

Figure 1-2

 ADSL: Connect to the Modem Port of Splitter or to the telephone line.

 LAN4/WAN, LAN3, LAN2, LAN1: Through these ports, you can connect the router to your PC

or the other Ethernet network devices. Enable EWAN function and you will be able to connect

to Cable/FTTH/ADSL device.

 WiFi: The switch for the Wi-Fi function.

 WPS/RESET:

1) WPS function: For details, please refer to WPS Setup

2) Reset the modem router: With the modem router powered on, press and hold down the

WPS/RESET button on the rear panel of the modem router for more than 5 seconds and then

release it. If all LEDs turn on momentarily, you restore the modem router successfully.

 ON/OFF: The switch for the power.

 POWER: The Power plug is where you will connect the power adapter.

 WirelETHess Antennas: To receive and transmit the wireless data.
