TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

After you specify the condition, click Save/Appl

y to save the entry and then you will see you

settings as shown in Figure 4-41.



Note:

1) Lower integer values for precedence imply higher priority for this queue relative to others.

2) The queue entry configured here will be used by the classifier to place ingress packets

appropriately.

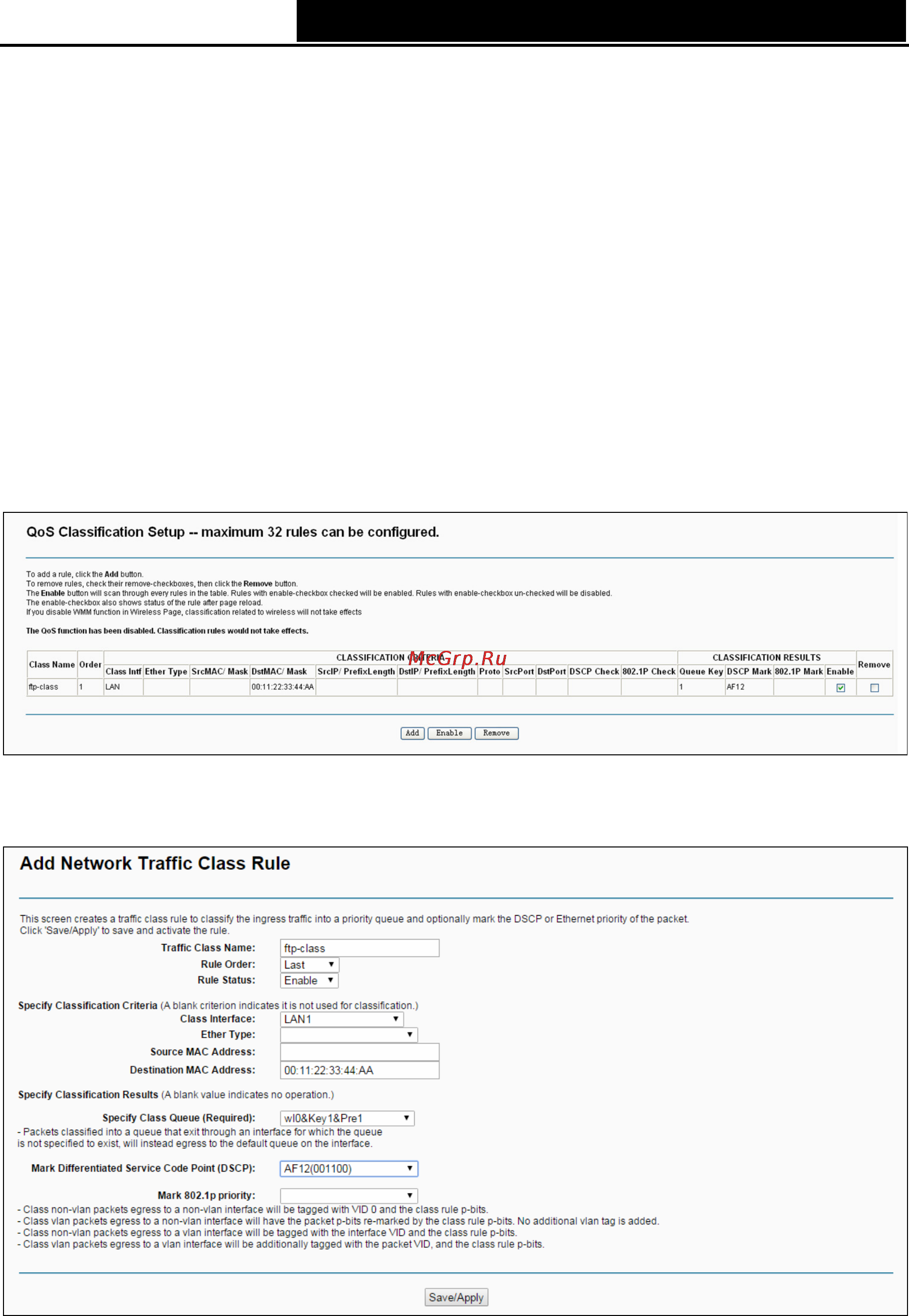

4.4.8.2 QoS Classification

This section will guide you to create a traffic

class rule to classify the upstream traffic, assign

queue which defines the precedence and the interface and optionally overwrite the IP header

DSCP byte.

A rule consists of a class name and at least one condition below. All of the specified conditions in

this classification rule must be satisfied for the rule to take effect.

Figure 4-43

Click the Add button Figure 4-43, and you can configure the Q

oS on the next screen.

Figure 4-44

After you specify the condition, click Save/Apply to save the entry.
