TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

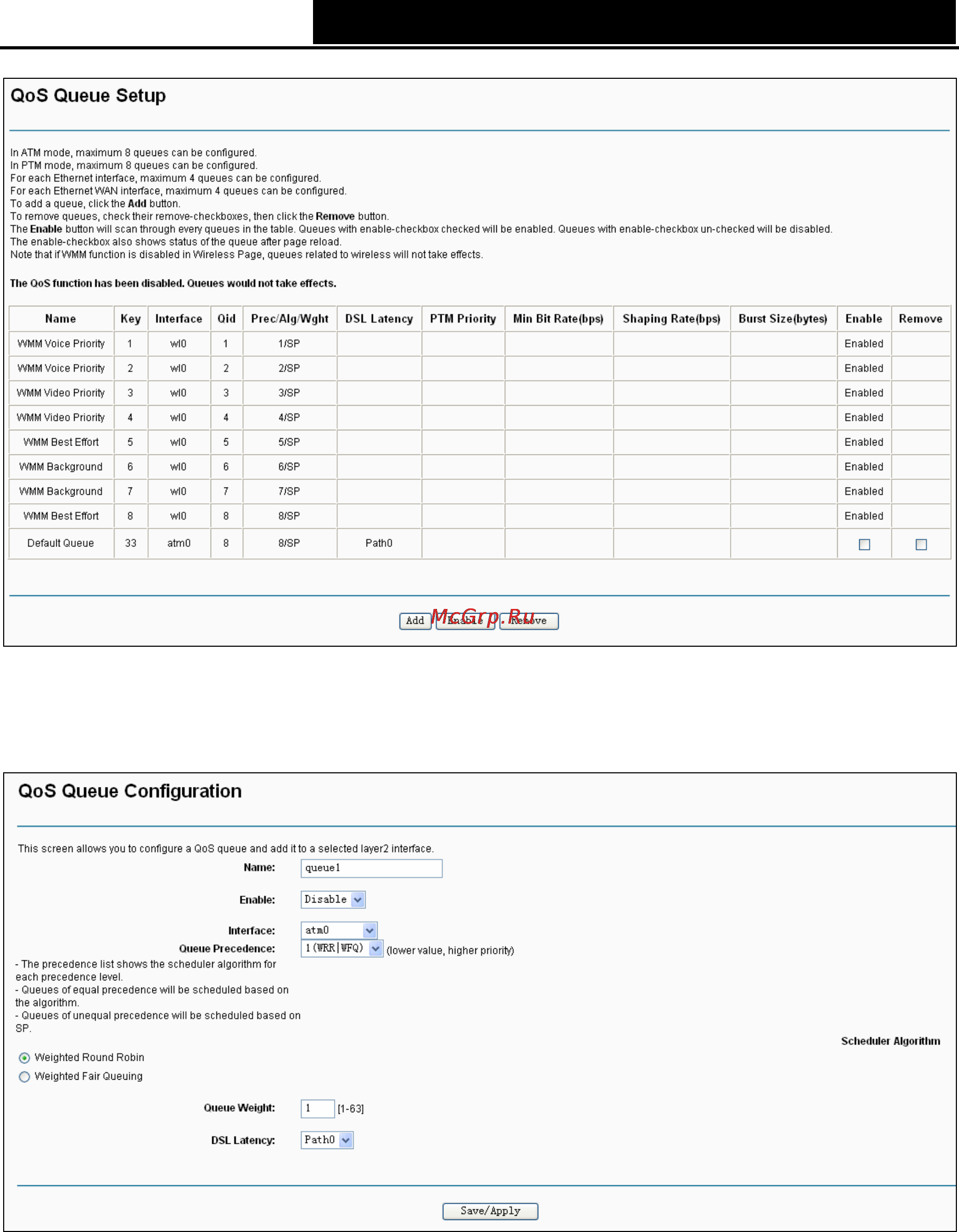

Figure 4-41
Click the Add button in Figure 4-41, and you can configure the QoS queue entry on the next
screen as shown in Figure 4-42.
Figure 4-42
Name: Set a name for the entry.
Enable: Select Enable option to take this entry effect.
Interface: Assigned a specific Wan Service for this QoS queue entry.
Precedence: Specify precedence for this QoS queue entry.
DSL Latency: Select latency path for the type of data transmission, only Path0 is available for
this router.
41
