TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

4.4.14 IP Tunnel

IPv6 tunnel is a kind of transition mechanism to enable IPv6-only hosts to reach IPv4 services and

to allow isolated IPv6 hosts and networks to reach each-other over IPv4-only infrastructure before

IPv6 completely supplants IPv4. It is a temporary solution for networks that do not support native

dual-stack, where both IPv6 and IPv4 run independently.

Choose “Advanced Setup”“IP Tunnel”, it includes two menus: IPv6inIPV4 and IPv4inIPv6,

The detailed descriptions are provided below.

4.4.14.1 IPv6inIPv4

Choose “A

dvanced Setup”““IP Tunnel”“IPv6inIPv4”. You can see the 6in4 tunnel

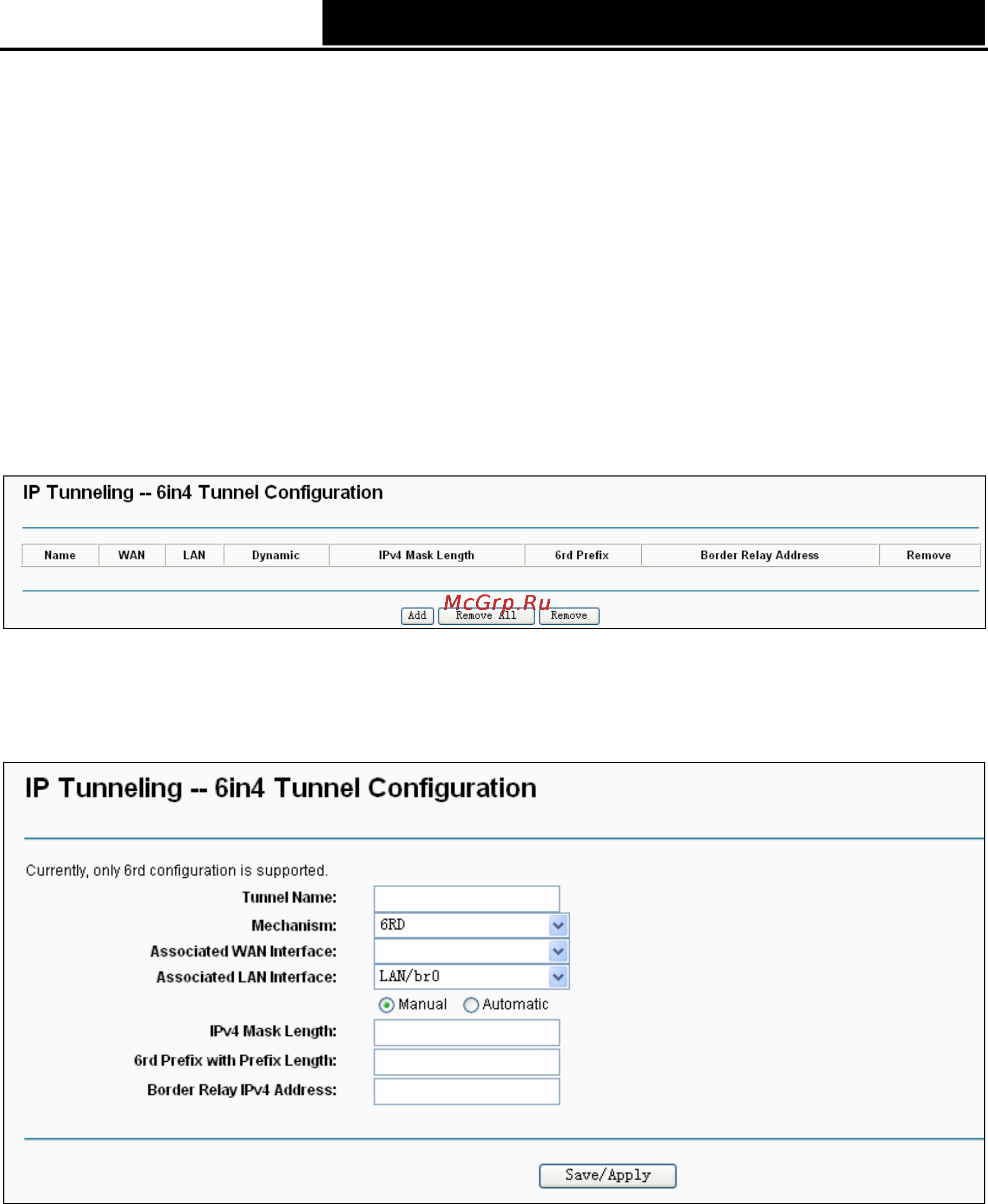

configuration screen, this screen allows you to configure the static routes (shown in Figure 4-55).

Figure 4-55

Click the Add button in Figure 4-55, and you can configure the 6in4 tunn

el on the next screen as

shown in Figure 4-56.

Figure 4-56

 Mechanism: 6RD, this type is used in the situation that your WAN connection is IPv4 while

LAN connection is IPv6.

 Associated WAN Interface: Select a WAN connection from the drop-down list. Only the

connected WAN connections can be shown in the drop-down list.

 Associated LAN Interface: Select a LAN connection from the drop-down list. Only the

connected LAN connections can be shown in the drop-down list.

 IPv4 Mask Length: The length of the selected WAN connection’s IPv4 mask.

 6rd Prefix with Prefix Length: The length of the 6rd prefix.
