TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

below to c

omplete the further configuration of WAN Interface. There are five different

configurations for the connection types, which are PPPoE, IPoE, Bridge, PPPoA, and IPoA. You

can select the corresponding types according to your needs.

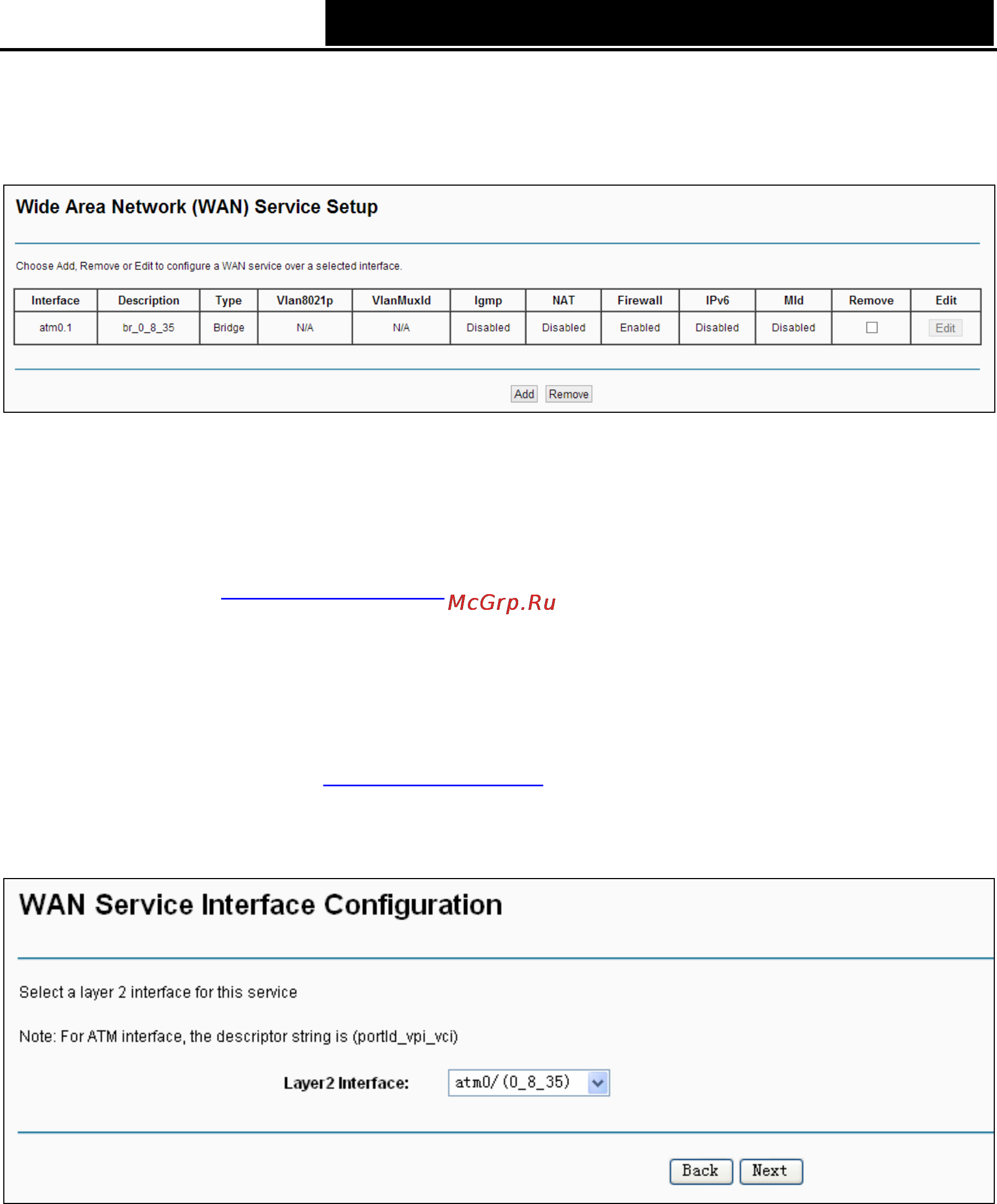

Figure 4-7



Note:

The following section adopts different VPI, VCI to introduce further configuration for the different

connection types, if you need to change the configuration of ATM PVC (VPI/VCI), you should go to

the previous section (4.4.1

Layer2 Interface) to configure them again.

4.4.2.1 ATM-EoA-PPPoE

If your ISP provid

es a PPPoE connection and you need to use an ATM Interface, follow the steps

below to add a WAN service over a selected ATM interface:

1. Add a new ATM interface (4.4.1.1 ATM Interface).

2. Click the Add button on the screen Figure 4-7 and you will enter the next screen as shown in

Figure 4-8. Click Next.

Figure 4-8

3. Select the WAN service type in Figure 4-9. If your ISP provides a PPPoE connection, select

PPPoE optio

n. You can create a service name for the Service Description or leave it the

default name. Click Next.
