TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

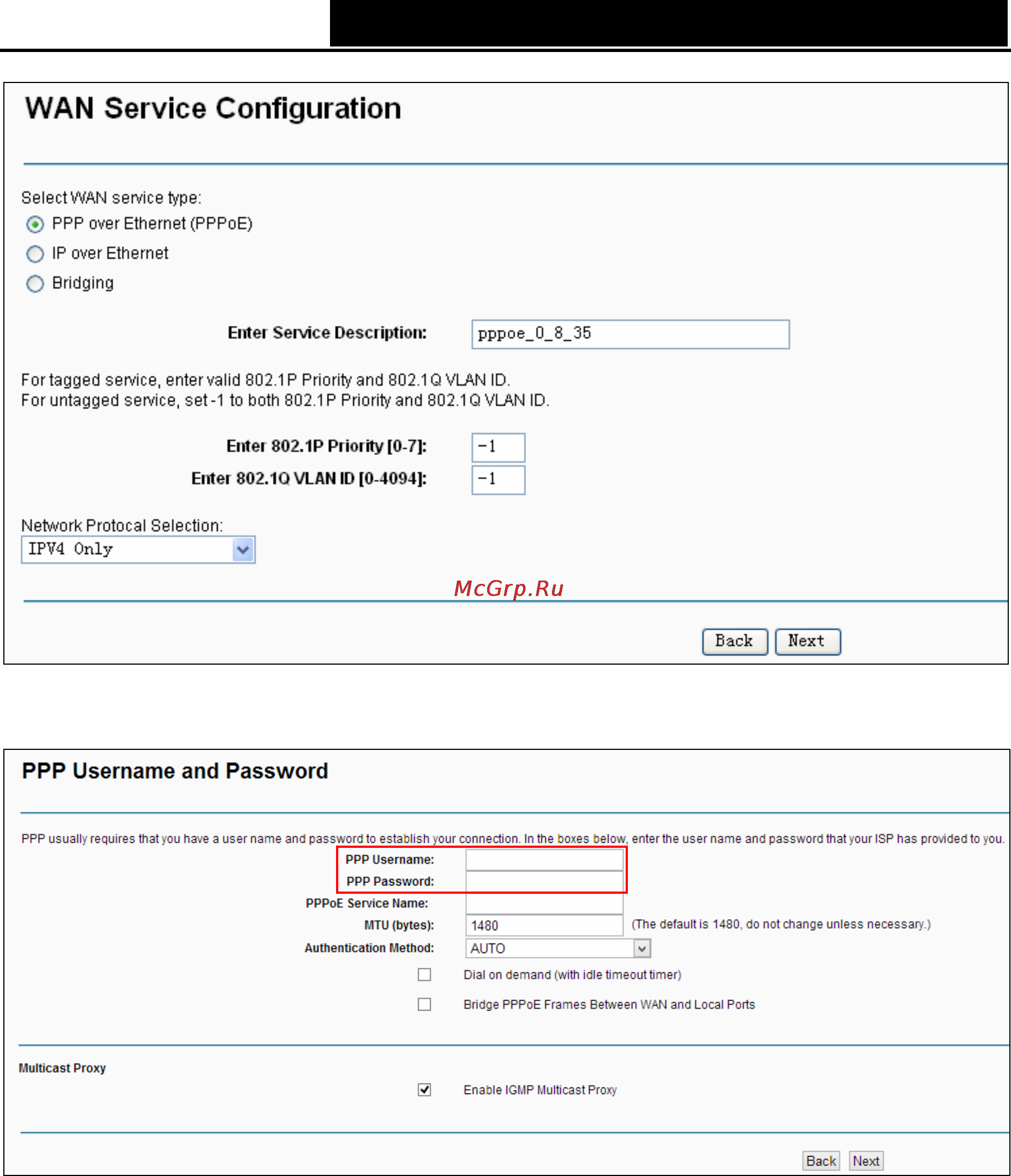

Figure 4-9

4. Enter the following parameters and then click Next.

Figure 4-10

 PPP Username/Password: Enter the Username and Password provided by your ISP. These

fields are case-sensitive.

 PPPoE Service Name: Enter the Service Name if it was provided by your ISP. You can leave

it blank, if the ISP doesn’t provide it.

 MTU (bytes): Maximum Transmission Unit Size. Check this box then you can change the

MTU size. The default MTU value is 1480 Bytes. It is not recommended that you change the

default value unless required by your ISP.

 Authentication Method: Select the Authentication Method from the drop-down list, the

default method is AUTO, and you can leave it as a default setting.

 Dial on demand (with idle timeout timer): The router will cut off the Internet connection after

it has been inactive for a specific period of time (idle timeout), and it will automatically
