TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

4.6.5 Wireless Bridge

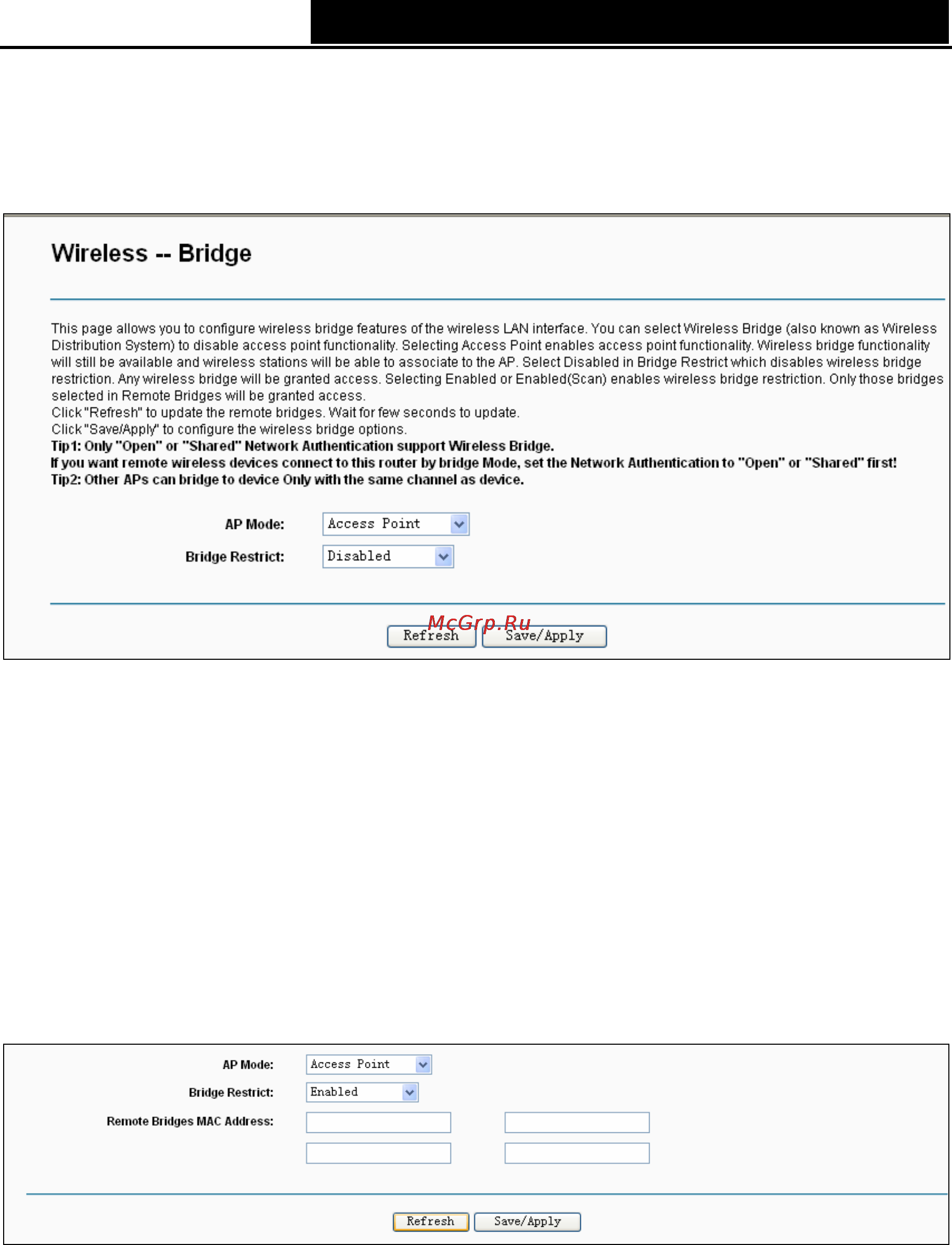

Choose “Wireless””Wireless Bridge”, you will see the screen of Wireless--Bridge settings

shown as below. You can configure wireless bridge features of the wireless LAN interface and

click Save/Apply button to save the current configuration.

Figure 4-87

 AP Mode: Select an AP Mode from the drop-down list. Options available are: Access Point

and Wireless Bridge.

 Access Point: Select this option to allow wireless stations including AP clients to access.

 Wireless Bridge: Also known as WDS (Wireless Distribution System), it will bridge the

wireless stations in bridge mode.

 Bridge Restrict:

 Disabled: Select this option to disables wireless bridge restriction, that any wireless bridge

will be granted access.

 Enabled: Select this option (as shown below) to enables wireless bridge restriction, please

enter the MAC address of the Remote Bridges that you want to connect with, and only

these Remote Bridges are granted access.

Figure 4-88

 Enabled (Scan): Select this option to enables wireless bridge restriction, and it will scan

the environment for APs that exist around the device. Only those selected AP will be

granted access.

 Refresh: Click this button to scan and display the APs.
