TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router User Guide

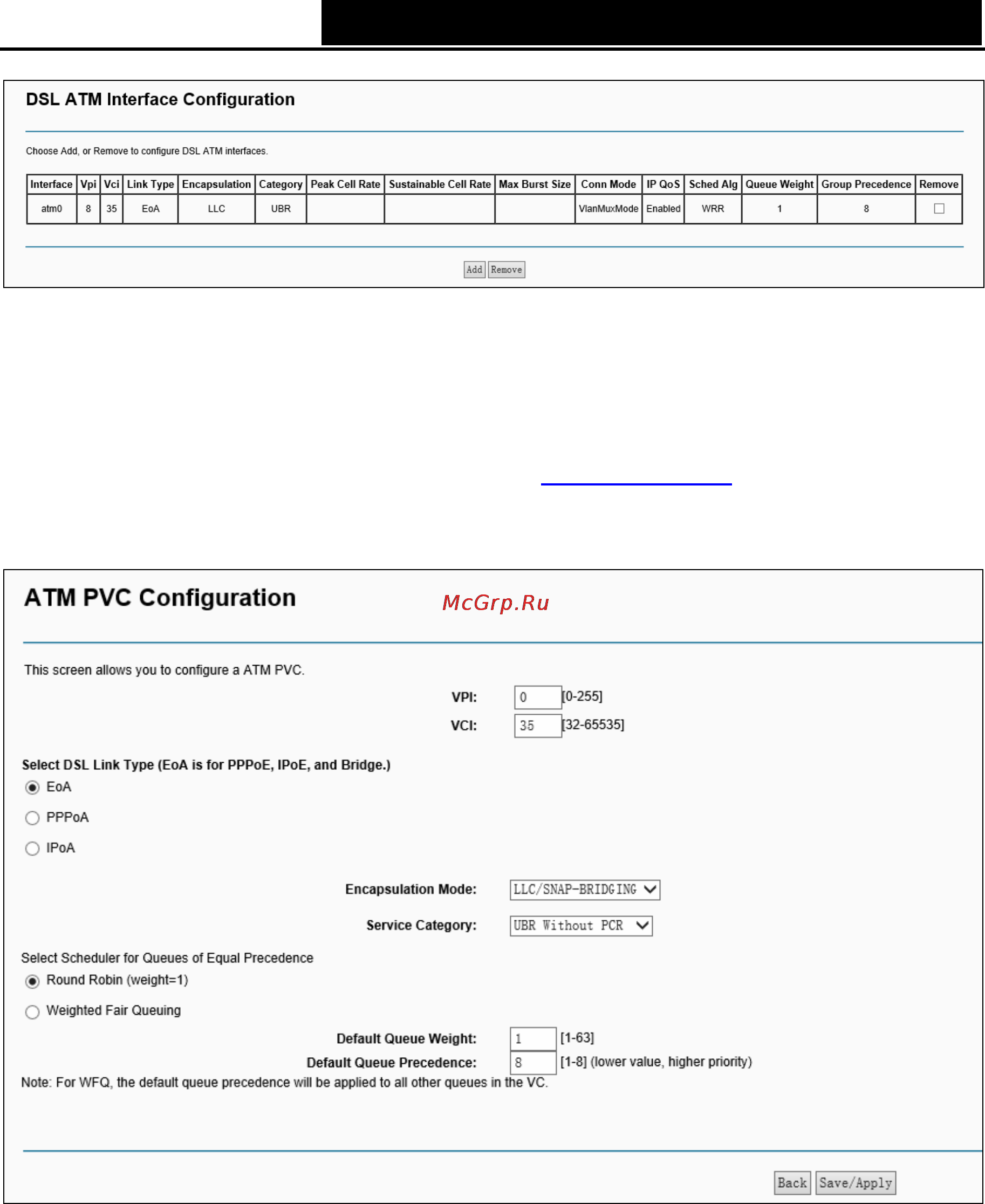

Figure 4-2

 Remove: Select the check box in the table on the screen above and then click the Remove

button, the corresponding interface will be deleted in the table.



Note:

If the interface is used by the configuration of the 4.4.2

WAN Service, you need to remove the

corresponding WAN Service entry first before you can remove it here.

 Add: Click the button, and you can add a new interface in the next screen.

Figure 4-3

 VPI/VCI: the VPI and VCI values provided by your ISP. Do not change them unless it was

required by your ISP.

 DSL Link Type: Select a DSL Link Type which is provided by your ISP. The options include

EoA (it is for PPPoE, IPoE, and Bridge), PPPoA (PPP over ATM) and IPoA (IP over ATM).

 Encapsulation Mode: The mode of the data processing over the Link Type you have

selected. Uses the default setting, if you are not sure.

 Service Category: Select the type of the service assigned by your ISP in the drop-down list.

The default type is UBR Without PCR.
