LDM5 Meter Setup and Operation Instructions
312668Z 13
Operation

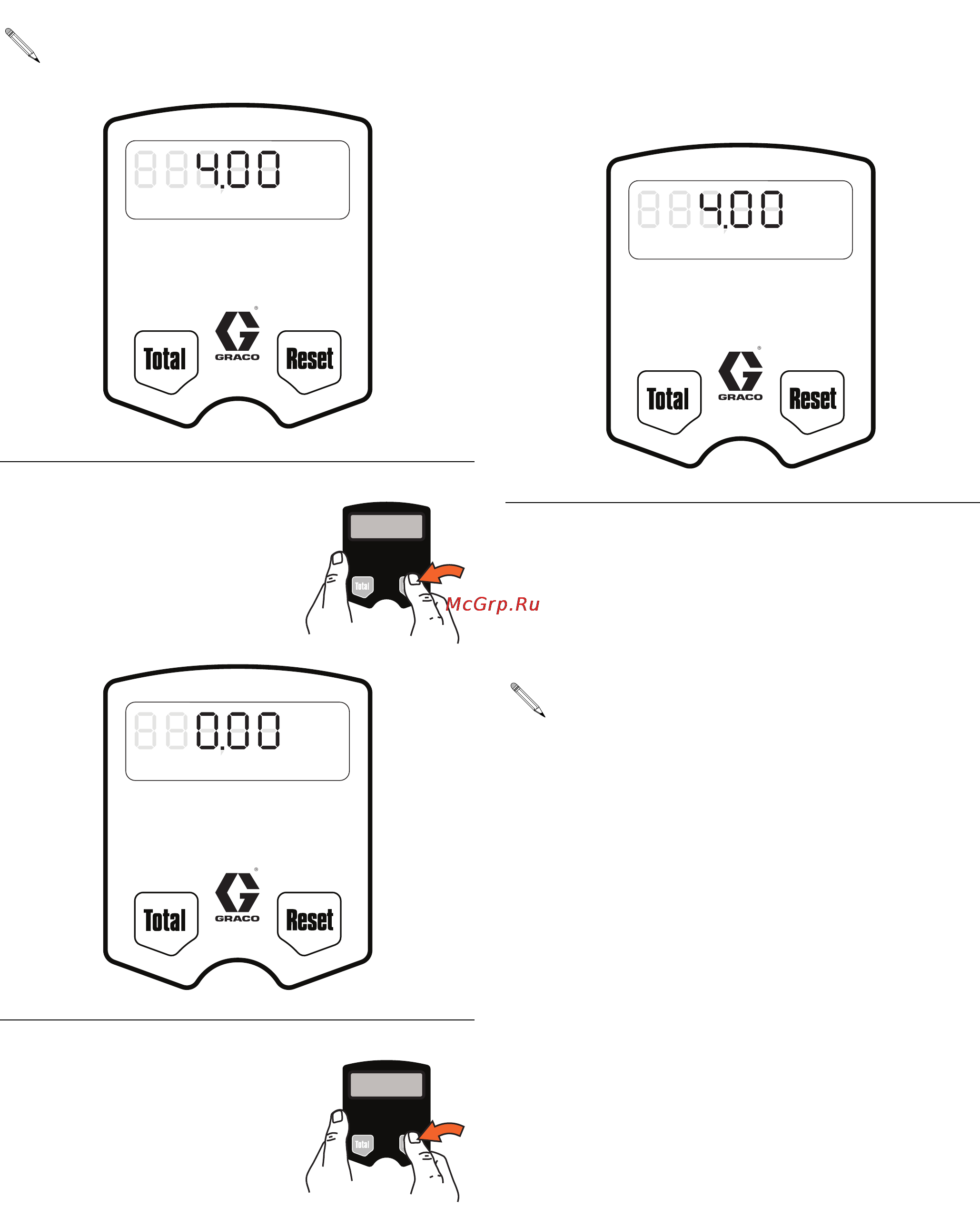

Dispensing Fluid in Standard Mode
1. If the display was blank (in
sleep mode), press and hold
the Total or Reset button. The
amount of the last dispense
appears on the display (F
IG.
14).
2. Press and hold Reset button.
0.00 is shown on the display
as shown in F
IG. 15.
3. Squeeze the trigger.
Fluid begins to flow, and the amount shown on the
display counts up from zero.
4. Release the trigger when you have dispensed the
desired amount of fluid.
Fluid flow stops, and the amount you have dis-
pensed is shown on the display (F
IG. 16).
All buttons are disabled while fluid is being dis-
pensed.
F
IG. 14
F
IG. 15
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12043a
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12048a
FIG. 16
When you release the trigger, the nozzle should
prevent fluid from running out of the extension. If
fluid does run out, see Replacing the Nozzle on
page 31.
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12043a
