LDP5 Meter Setup and Operation Instructions
22 312668Z
Operation

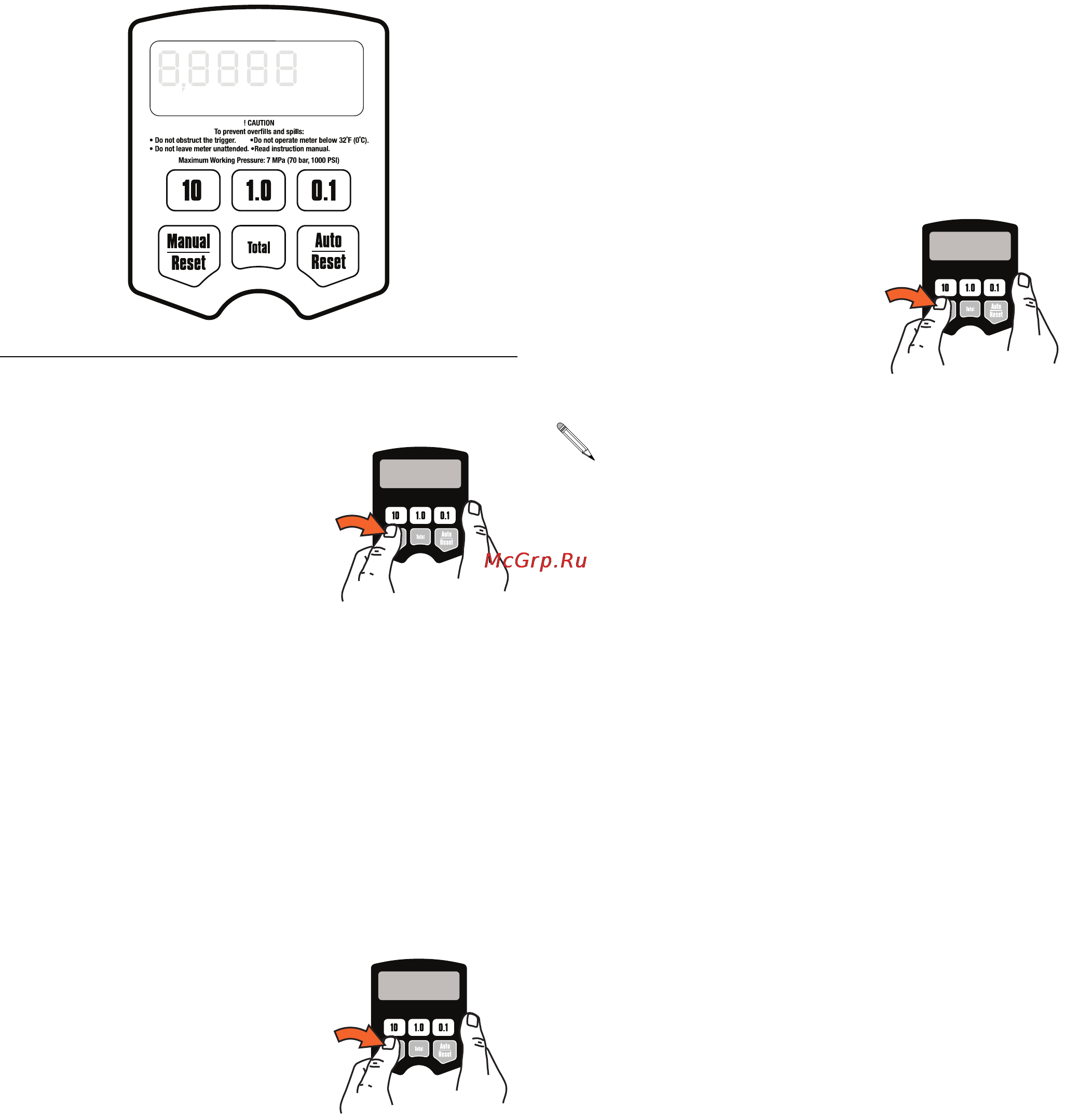

Dispensing Fluid in Manual Mode (FIG. 29)
1. Press and hold the Man-
ual/Reset button.
• If the display was blank
(asleep), it wakes up and
displays the amount that
was displayed before it fell
asleep.
• If the display was awake, and the meter is in
the Manual Dispense Mode, the display clears
to 0.00.
• If the display was awake, and the unit is in the
Viewing Totals mode or the Auto Dispense
Mode, the meter switches to the Manual Dis-
pense Mode.
2. When the display is awake, you can dispense from
zero or from the displayed amount by doing one of
the following.
• Press and hold the Man-
ual/Reset button again to
clear the display to 0.00 if
it is not already at 0.00.
Then go to step 3.
OR
• Go straight to step 3 to dispense from the dis-
played amount.
3. Squeeze the trigger. You may lock it. See Locking
and Unlocking the Trigger, page 16.
Fluid flows, and the amount displayed counts up from
zero or the previously dispensed amount.
4. Release/unlock the trigger when you have dis-
pensed the desired amount of fluid.
Fluid flow stops. The amount you have dispensed is dis-
played.
You may press and hold the Man-
ual/Reset button again to reset the
displayed amount to zero.
F
IG. 29
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
ti12053a
When the trigger is released, the automatic nozzle
prevents the fluid in the extension from running out.
