LDP5 Meter Setup and Operation Instructions
312668Z 19
Units of Measurement (FIG. 25)
Sets the units of measurement to gallons, quarts, pints,
or liters.
1. If the Units of Measurement Menu is not already dis-
played, do steps 1- 3 in Setup Menus section, page
17.
2. GAL, QTS, PTS or LITERS blinks indicating you
are on the Units of Measurement Menu screen.
3. Do ONE of the following.
a. Press and hold Manual /
Reset button to display
next unit of measurement
in sequence. Each time
you press and hold the
button, the next unit of
measurement displays.
b. When measurement unit
you want to use is dis-
played, press and hold
Auto / Reset button to lock
in new measurement unit.
Calibration Menu dis-
plays.
OR
• Press and hold the Auto /
Reset button.
The currently displayed
measurement unit is
stored. Calibration Menu
displays.
Calibration (FIG. 26)
Recalibrates the meter for dispensing different fluids.
1. If the Calibration Screen is not already displayed,
complete steps 1 - 4 of the Setup Menus section,
page 17.
2. CAL blinks indicating you are on the Calibration
Menu screen.
3. Do ONE of the following.
Use the current calibration.
• Press and hold the Auto /
Reset button to lock in the
displayed amount. The
display advances to the
Auto Preset Amount
Menu.
OR
Recalibrate the meter as follows.
a. If the unit of measurement is gallons, pints, or
quarts, dispense exactly one quart of fluid
into a calibrated 1–quart container.
If the unit of measurement is liters, dispense
exactly one liter of fluid into a calibrated
1–liter container.
For proper calibration, you must dispense
the exact amount.
F

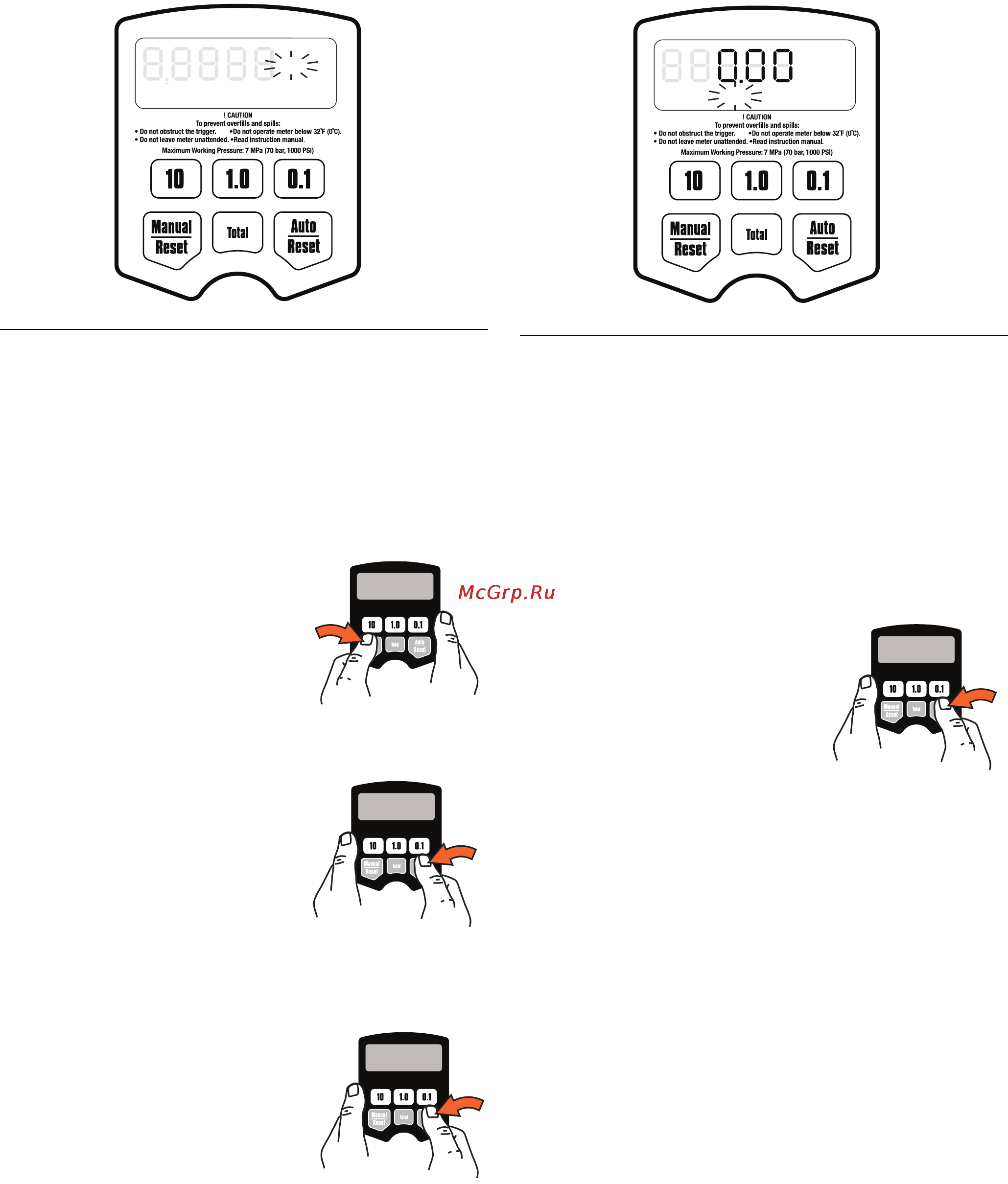

IG. 25
GAL
QTSPTS
LITERS
R-T
OTAL
AUTO
ti12055a
FIG. 26
GAL
QTSPTS
LITERS
R-TOTAL
CAL
ti12056a
