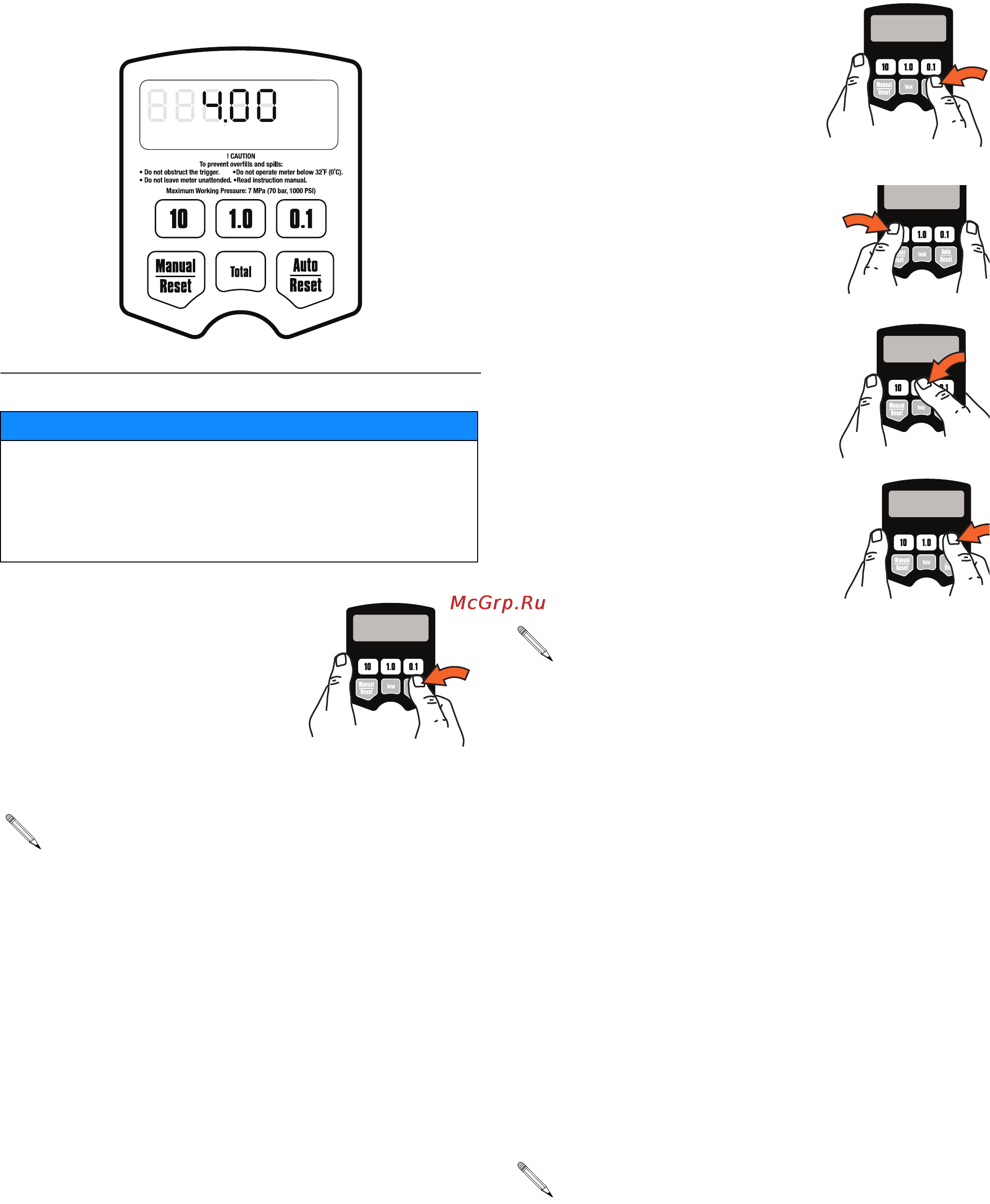

Dispensing Fluid in Auto Mode (FIG. 30)
1. Press and hold the
Auto/Reset button.
The display wakes up if it was
asleep, and AUTO and the stored
preset dispense amount are dis-
played. The factory default is
5.00.
2. You can dispense or change the displayed preset
amount by doing one of the following.
• Go straight to step 3 to dispense the displayed
preset amount.
OR
• To change the displayed preset amount:
a. Press and hold the
Auto/Reset button to
set the display to zero.
b. Press the10 button to
change the 10s digit,
press the 1.0 button to
change the 1s digit,
and the 0.1 button to
change the first deci-
mal digit. You cannot
enter zero.
3. Lock the trigger. See Locking and Unlocking the
Trigger on page 16.
Fluid flows, and the displayed dispensed amount counts
up from zero. When the preset amount is dispensed,
the trigger unlocks, fluid flow stops, the dispensed
amount is displayed, and the meter switches to the
Manual Dispense Mode.
If you want to stop fluid flow before the preset amount is
dispensed, manually unlock the trigger. To continue the
dispense, lock the trigger, and the dispensed amount
resumes counting toward the preset amount.
If you want to continue dispensing after the trigger
unlocks at the preset dispense amount, squeeze the
trigger, and the dispensed amount resumes counting
until you release the trigger.
F
IG. 30
NOTICE
Before you begin a preset dispense cycle, make sure
AUTO is displayed. If you do not see AUTO on the
display, you are not in the Auto dispense mode, and
fluid flow will not stop when the auto preset amount is
dispensed.
To change the stored preset dispense amount, see
Auto Preset Amount on page 20.
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
ti12057a
To reset the display to 0.00, press and hold the
Manual/Reset button.
When the trigger unlocks, the automatic nozzle pre-
vents the fluid in the extension from running out.
