Graco 24F882 LDM5 [14/34] Viewing totals

LDM5 Meter Setup and Operation Instructions

14 312668Z

Viewing Totals

This is the procedure for viewing the non–resettable and

resettable totals in gallons or liters. To change the reset-

table total, see Resettable Total, page 11.

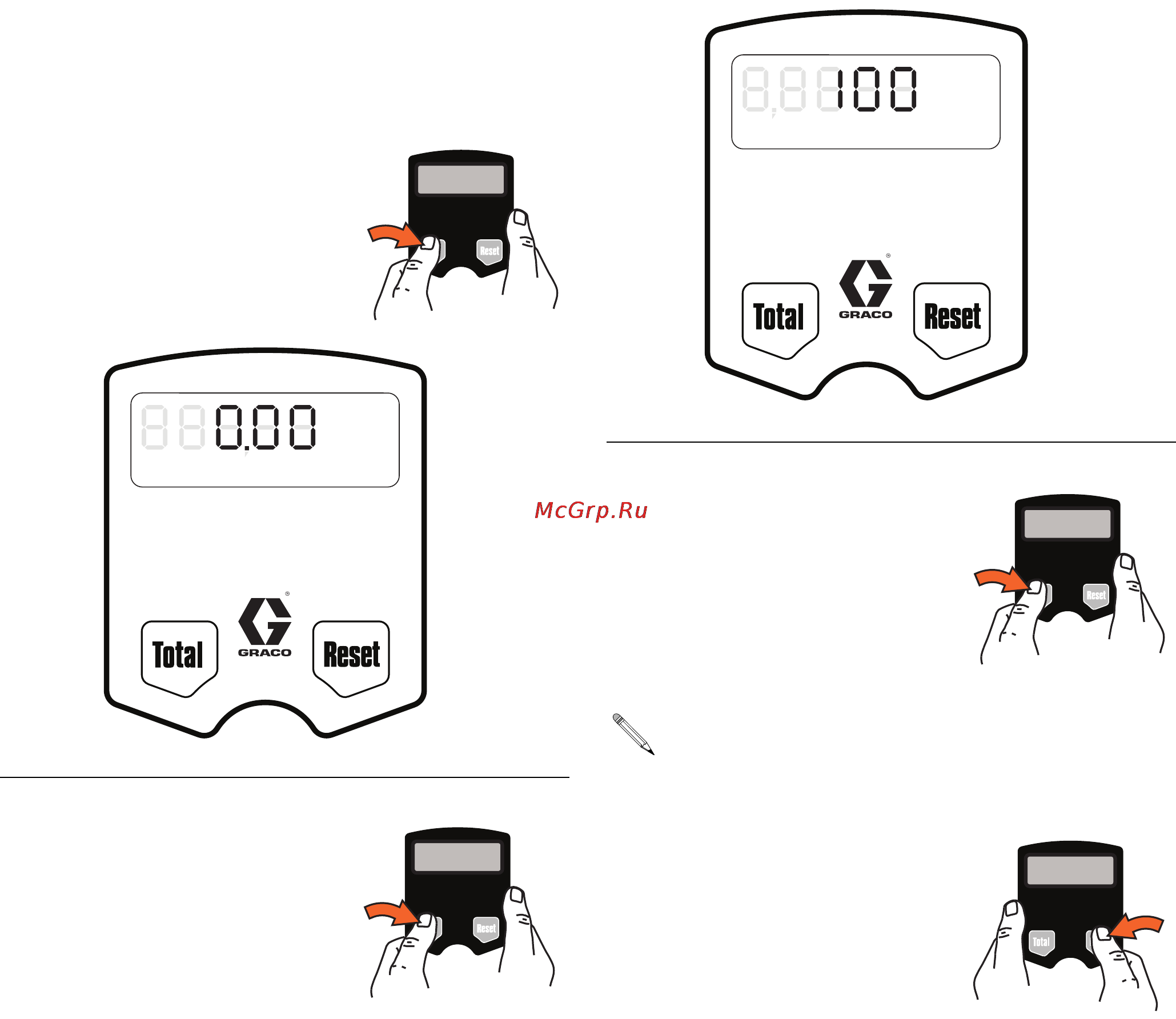

1. If display is blank (in sleep

mode), press and hold either

the Total or Rest button.

2. Press and hold Total button.

The resettable total amount is

displayed (F

IG. 17).

If the unit of measurement is gallons, quarts, or

pints, the resettable total is displayed in gallons,

IG. 17). If the unit of measurement is liters, the

resettable total is displayed in liters.

3. Press and hold the Total but-

ton again to display the

non-resettable total (F

IG. 18).

4. Press and hold the Reset but-

ton. The unit returns to Stan-

dard Dispense Mode.

IG. 17

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12049a

FIG. 18

Each time you press and hold the Total button the

display toggles between the non–resettable and

resettable totals.

GAL
