LDP5 Meter Setup and Operation Instructions
24 312668Z

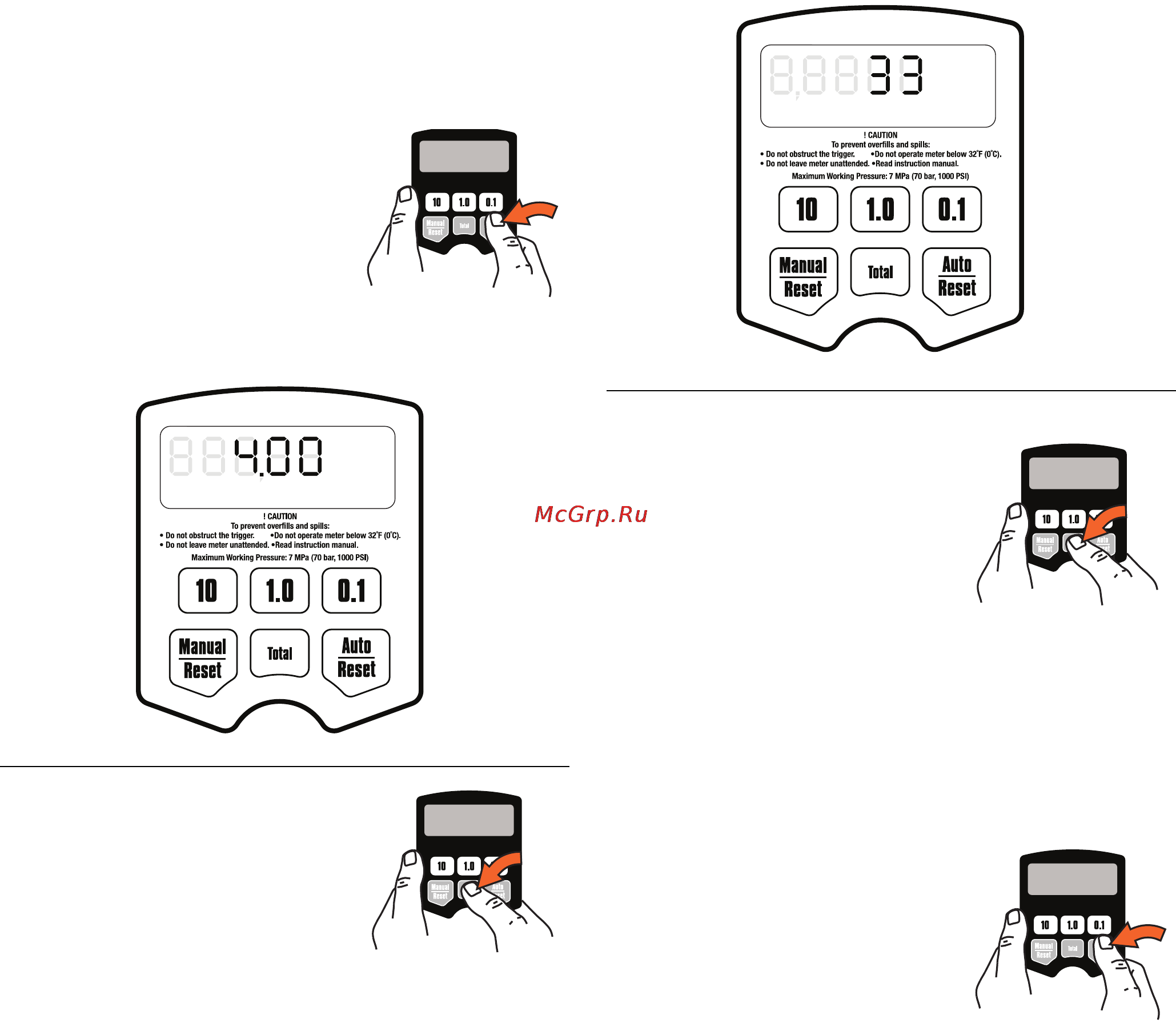

Viewing Totals
This is the procedure for viewing the non–resettable and
resettable totals. To change the resettable total, see
Resettable Total on page 18.
1. If the display is blank (asleep),
press and hold the Man-
ual/Reset or Auto/Reset but-
ton to wake it up.
Resettable Totals
2. Press and hold the Total but-
ton to view the resettable total
amount (F
IG. 31).
Non-Resettable Totals
3. Press and hold the Total but-
ton again to view the
non-resettable, grand total
amount.
If the unit of measurement is
gallons, quarts, or pints, the
resettable total is displayed in
gallons, (F
IG. 32). If the unit of measurement is
liters, the resettable total is displayed in liters.
Pressing and holding the Total button repeatedly
toggles between the non–resettable and resettable
total.
4. Press and hold the Man-
ual/Reset or Auto/Reset but-
ton to return to the Manual or
Auto Dispensing Mode.
F
IG. 31
GAL
QTSPTS
LITERS
AUTO
R-TOTAL
ti12059a
FIG. 32
GAL
QTSPTS
LITERS
AUTO
R-TOTAL
ti12060a
