LDP5 Meter Setup and Operation Instructions
16 312668Z
LDP5 Meter Setup and Operation Instructions
Setup
Locking and Unlocking the Trigger
To lock the trigger (FIG. 20), press on the part of the
trigger that has the textured grip until you feel it click into
the locked position.
To unlock the trigger (F
IG. 21), press on the smooth
part of the trigger until you feel it click out of the locked
position. When you release the trigger, fluid flow stops.
In Auto mode, the unit stops dispensing when the
entered amount has been dispensed.
In Manual mode, the trigger does not automatically
unlock; you must unlock it manually.
Terms
The following terms are shown on the display and/or
used often in this instruction manual.
• R-TOTAL: Resettable Total
Shows the cumulative amount that has been dis-
pensed in all modes. Can be reset to zero.
• TOTAL: Non–resettable Total
Shows the cumulative amount that has been dis-
pensed in all modes for the life of the unit. Cannot
be reset.
• Manual Mode
Dispense mode in which display counts up from
zero to show the dispensed amount. In this mode,
you may lock the trigger, but you must manually
unlock it when the desired amount is dispensed.
Memory setting also unlocks the trigger.
• Auto Mode
Dispense mode in which a preset, user–entered
amount is dispensed. When the preset amount is
dispensed, the trigger unlocks to stop the unit from
dispensing and the amount dispensed is displayed.
At this point, you may dispense more by pulling back
the trigger, and the display resumes counting up.
• Asleep / Awake Mode
Asleep is a battery–saving mode in which the dis-
play goes blank after 45 seconds of inactivity. The
display comes Awake from sleep mode when you
press any button or squeeze the trigger to dispense
fluid.
F

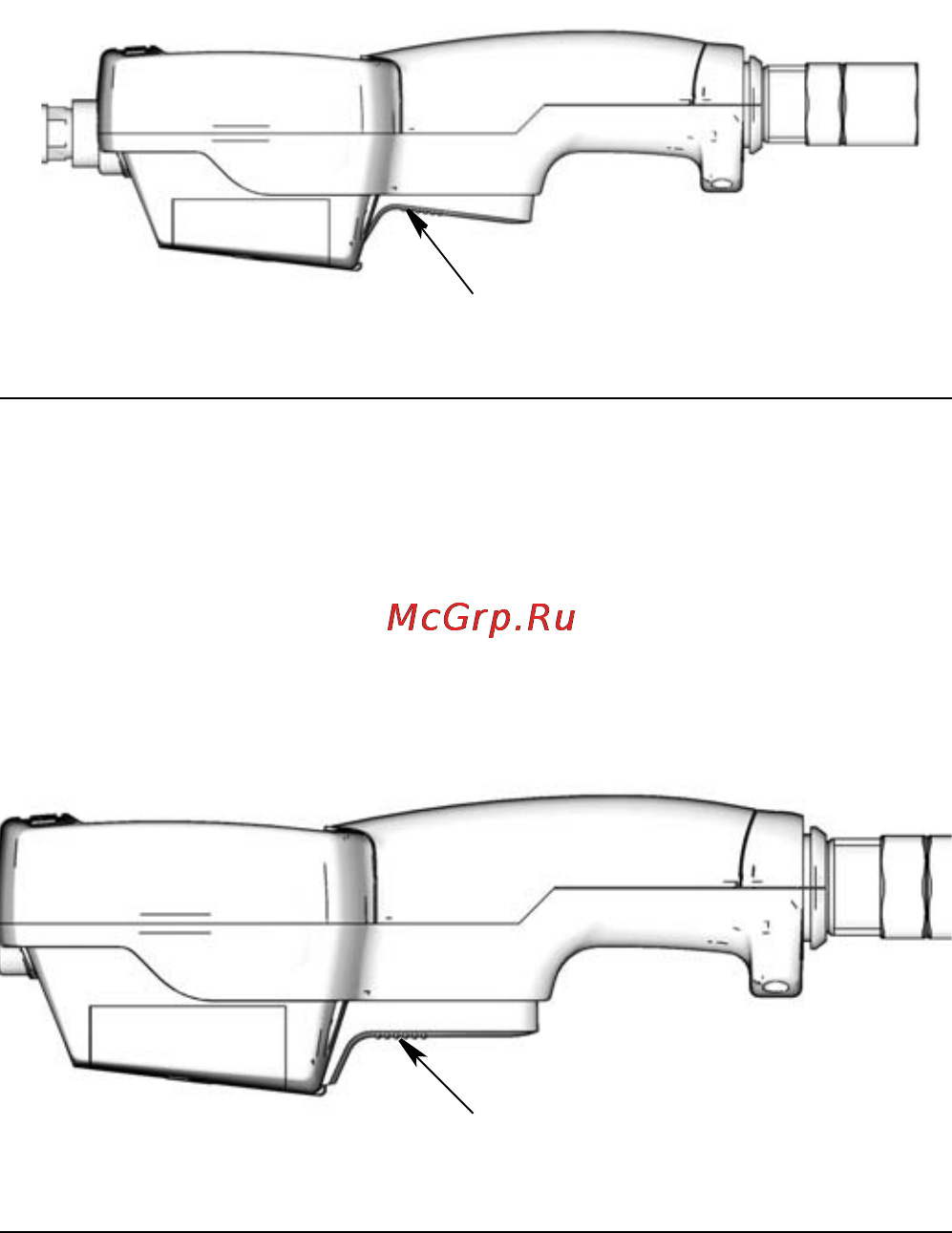

IG. 20
F
IG. 21
ti11349a
Locked Position
ti11348a
Unlocked Position
