Installation
334513D 15
Typical Installation - Ordinary Locations
FIG. 5 is an example of an installation with a Wolverine
chemical injection pump. Your installation may differ
from what is shown here. (See Accessories on page
14.) The Wolverine pump (A) is the only component in
F
IG. 5 supplied by Graco. All other components are sup-
plied by customer.
Key:
APump
B Power Source
C Tank
D Pressure Relief Valve
E Inlet Line
F Outlet Line
G Pressure Relief Line
H Inlet Port
JOutlet Port
K Manifold Assembly (includes y-strainer and fluid shutoff
valve (N))
L Fluid Shutoff Valve (inlet & outlet)
M Bleed/Prime Waste Line

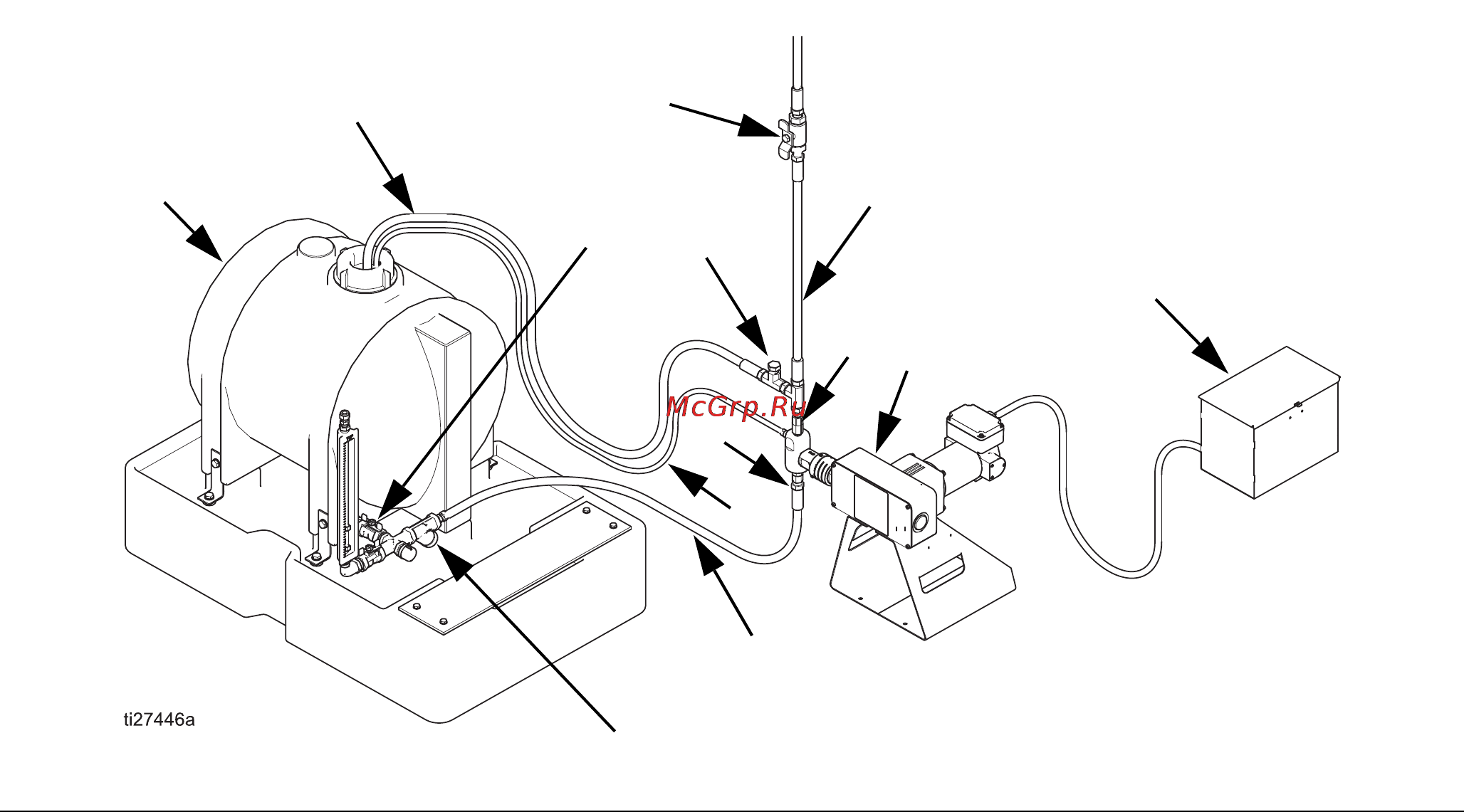

FIG. 5 Typical Installation in Ordinary Location with Generic Power Source
A
B
F
E
G
C
D
H
J
L
L
K
M
