Dimensions
334513D 51
Dimensions
Wolverine Basic Pump Dimensions

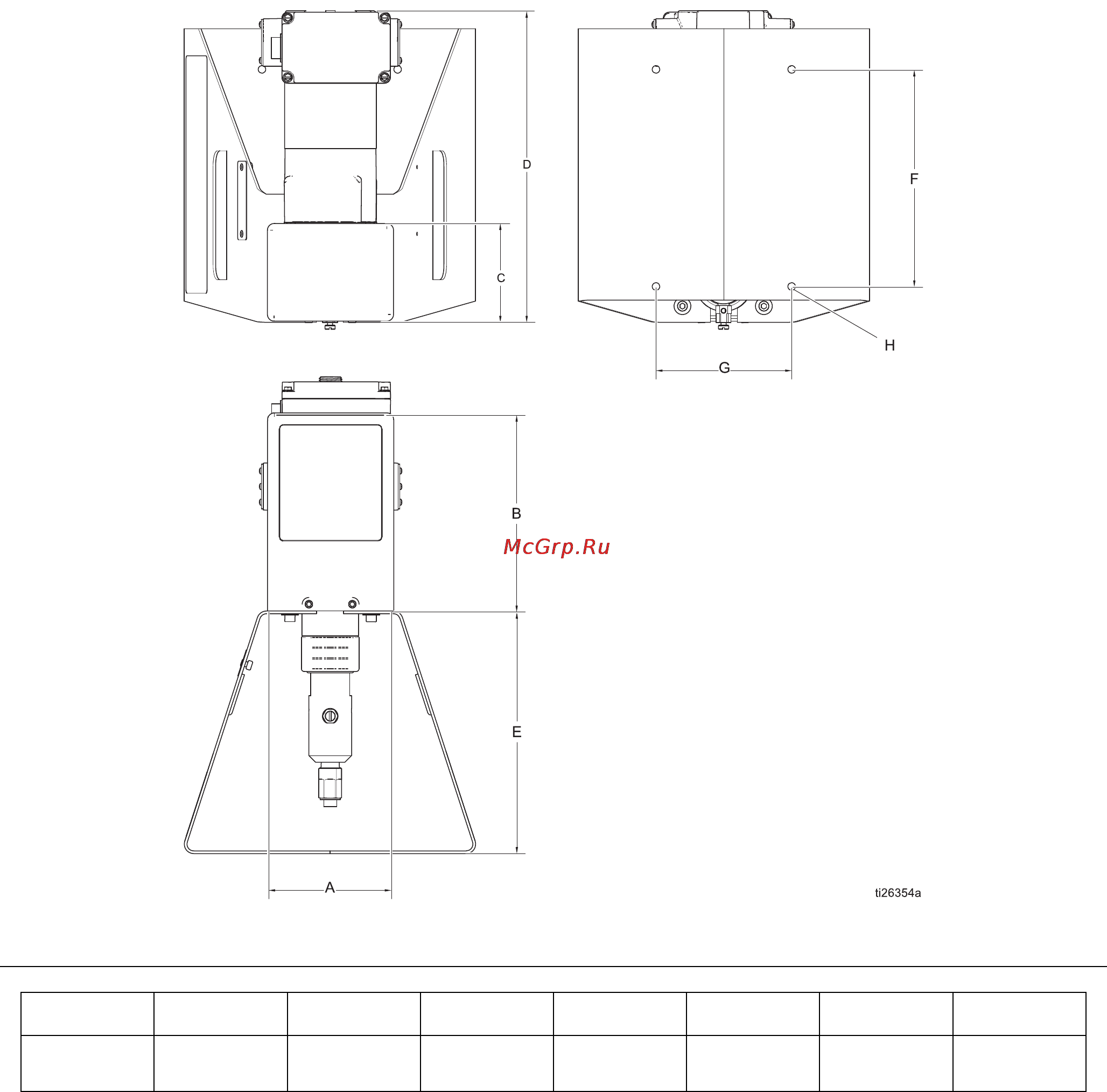

FIG. 36 Wolverine Basic Pump Dimensions
A B C D E F G H
4.65 in.
(11.8 cm)
7.35 in.
(18.7 cm)
3.6 in.
(9.1 cm)
11.5 in.
(29.2 cm)
8.9 in.
(22.7 cm)
8.0 in.
(20.3 cm)
5.0 in.
(12.7 cm)
0.281 in. dia
(0.714 cm)
