Installation
18 334513D
Cycle Counter (models CI-xxS-xxx-xx-C
and CI-xxL-xxx-xx-C only)
1. Connect the harness wires (95) to the appropriate
terminals. See Installation in the Harrier Chemical
Injection Controller manual (334993).
NOTE: The Cycle Counter is only available with Wolver-
ine Advanced pumps, and not Hazardous Location.
For DC and AC Single Phase (all models
except CI-4AL and CI-4AH)
The pump assembly has 10 feet (3 m) of 1/2-inch, flexi-
ble conduit connected to the motor with 12 feet (3.7 m)
of motor leads.
1. Connect the conduit to the power source
enclosure (B) with the included conduit fitting.
2. Connect the green motor wire to a ground location.
3. Connect the white motor wire to the positive (+) out-
put of the power source.
4. Connect the black motor wire to the negative (-) out-
put of the power source.
For AC 3 Phase (model CI-4AL)
The pump assembly has nine motor leads housed
inside the motor junction box (2a). See F
IG. 4 on page
12.
1. Connect the conduit to the power source
enclosure (B) with a conduit fitting.
2. Remove motor junction box cover.
3. Connect wires (user supplied) rated per local electri-
cal code. See F
IG. 7 for wiring diagram, and Techni-
cal Data, on page 61, for current ratings.
4. Connect a user-supplied ground wire to the ground
stud inside the motor junction-box.
5. Replace motor junction box cover (2a).

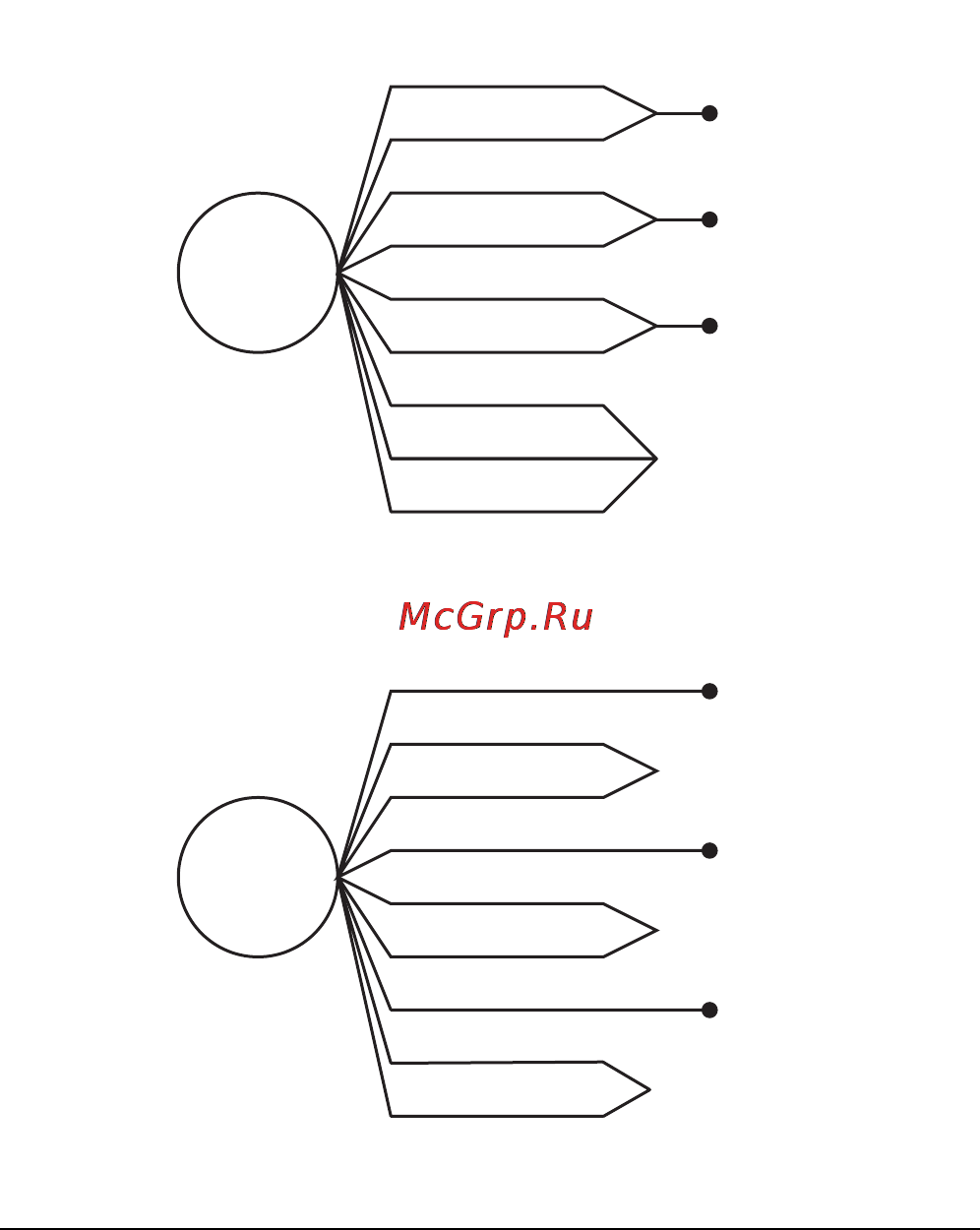

FIG. 7 Electrical Connections for 3 Phase Pump
BLACK
BLK-GRN TR
RED
RED-GRN TR
BLUE
BLUE-GRN TR
BLK-YEL TR
RED-YEL TR
BLU-YEL TR
T1[U]
T2[V]
T3[W]
MOTOR
BLACK
BLK-GRN TR
BLK-YEL TR
RED
RED-GRN TR
RED-YEL TR
BLUE
BLU-GRN TR
BLU-YEL TR
T1[U]
T2[V]
T3[W]
MOTOR
230 V / 3 Phase (Low Voltage)
460 V / 3 Phase (High Voltage)
