Installation
334513D 19
For Hazardous Location (models CI-xxH)
The pump assembly has motor leads housed inside the
motor junction box (2a). See F
IG. 4 on page 12.
1. Connect wires and related conduit (user supplied)
rated per local electrical code. See F
IG. 8 and FIG. 9
for wiring diagrams, and Technical Data, on page
61, for current ratings.
2. Connect a user-supplied ground wire to the ground
stud inside the motor junction-box.
3. Replace motor junction box cover (2a).

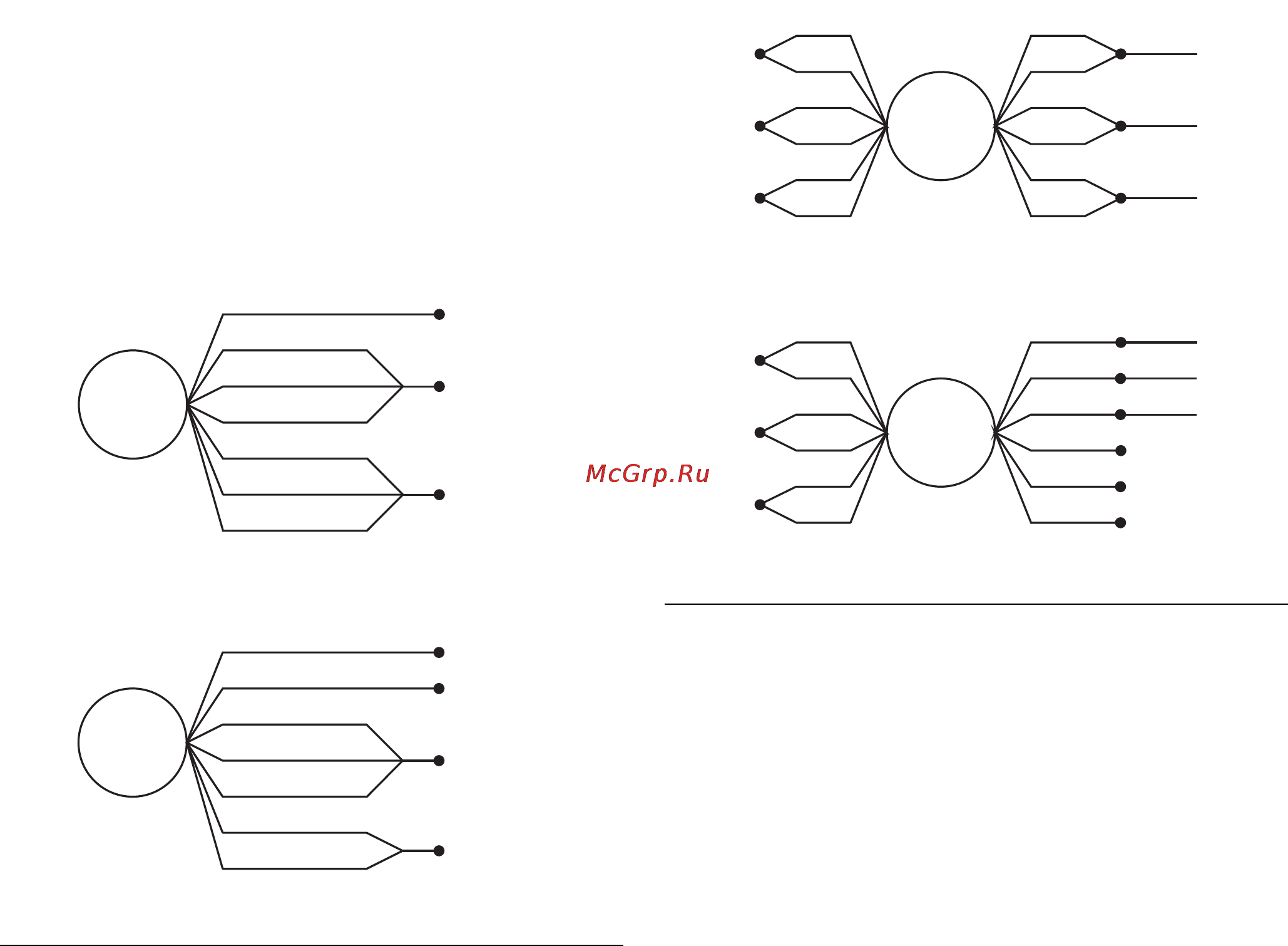

FIG. 8 Electrical Connections for Hazardous Location
Single Phase Pump
P1
RED
P2
ORANGE
BLACK
WHITE
YELLOW
LINE 1
INSULATE
LINE 2
MOTOR
P1
P2
RED
ORANGE
WHITE
BLACK
YELLOW
LINE 1
INSULATE
INSULATE
LINE 2
MOTOR
115 V / Single Phase (Low Voltage)
230 V / Single Phase (High Voltage)
FIG. 9 Electrical Connections for Hazardous Location
3 Phase Pump
LINE 3
LINE 2
LINE 1
T1
T7
T2
T8
T3
T9
T4
P4
T5
P5
T6
P6
MOTOR
LINE 3
LINE 2
LINE 1
T1
T2
T3
P4
P5
P6
T4
T7
T6
T9
T5
T8
MOTOR
230 V / 3 Phase (Low Voltage)
460 V / 3 Phase (High Voltage)
