Installation
20 334513D
Second Pump Add-On
1. Follow Pressure Relief Procedure, page 21.
2. Remove the drive guard (26).
3. Remove the plug (44) on the side of the housing (1)
opposite of the existing pump.
4. Remove the two shoulder screws (17), and then
remove the plunger return block (16).
5. Follow Drive Section Repair (steps 8-11), page 35.
6. Replace drive guard (26).

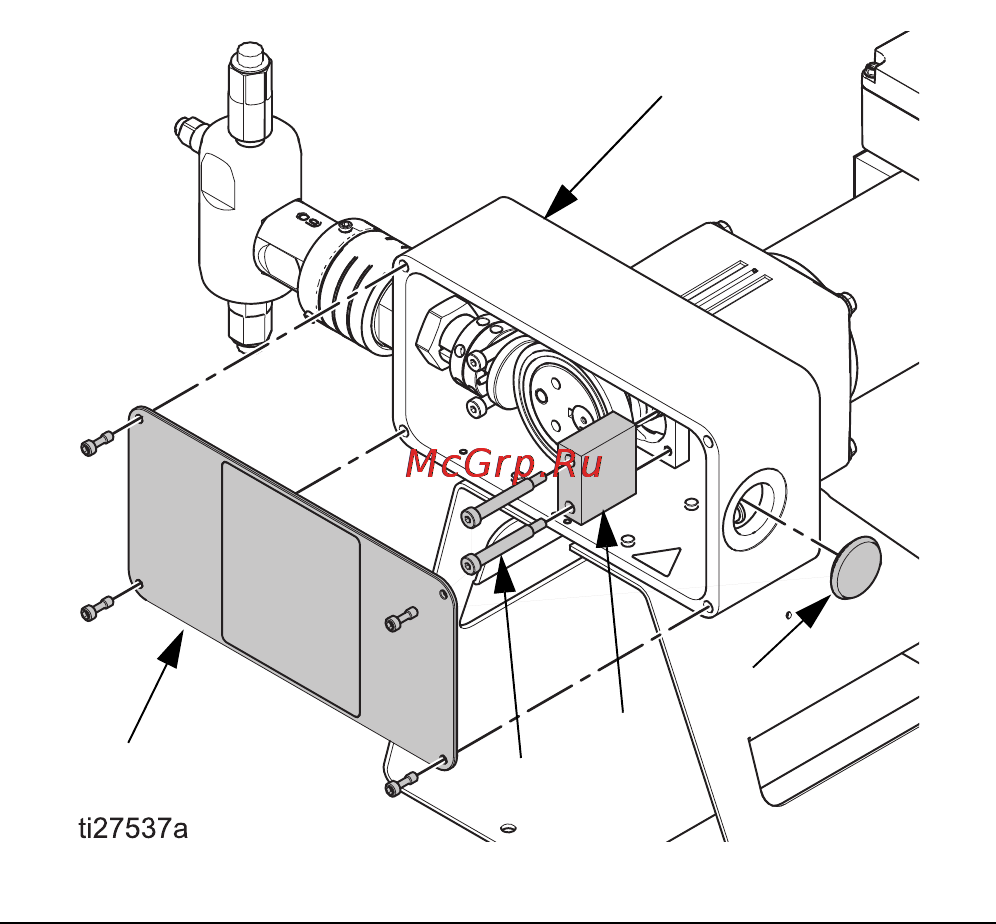

FIG. 10
1
17
16
44
26
