Graco Wolverine Basic [8/62] Fluid module configuration code

Models and Approvals

8 334513D

Fluid Module Configuration Code

Sample Configuration Number: CI-50-XA-0

NOTE: Effective Date Code “X 2516” (see F

IG. 1), if your configuration does not match this format, you have an older

pump assembly configuration. See manual 334513, rev C.

NOTE: See Drive Module Configuration Code, page 7, for drive module side 1 and side 2 compatibility with the

fluid module.

NOTE: See Reconnect Pump, page 35, for fluid section installation instructions.

NOTE: Fluid module approvals information is found on page 5.

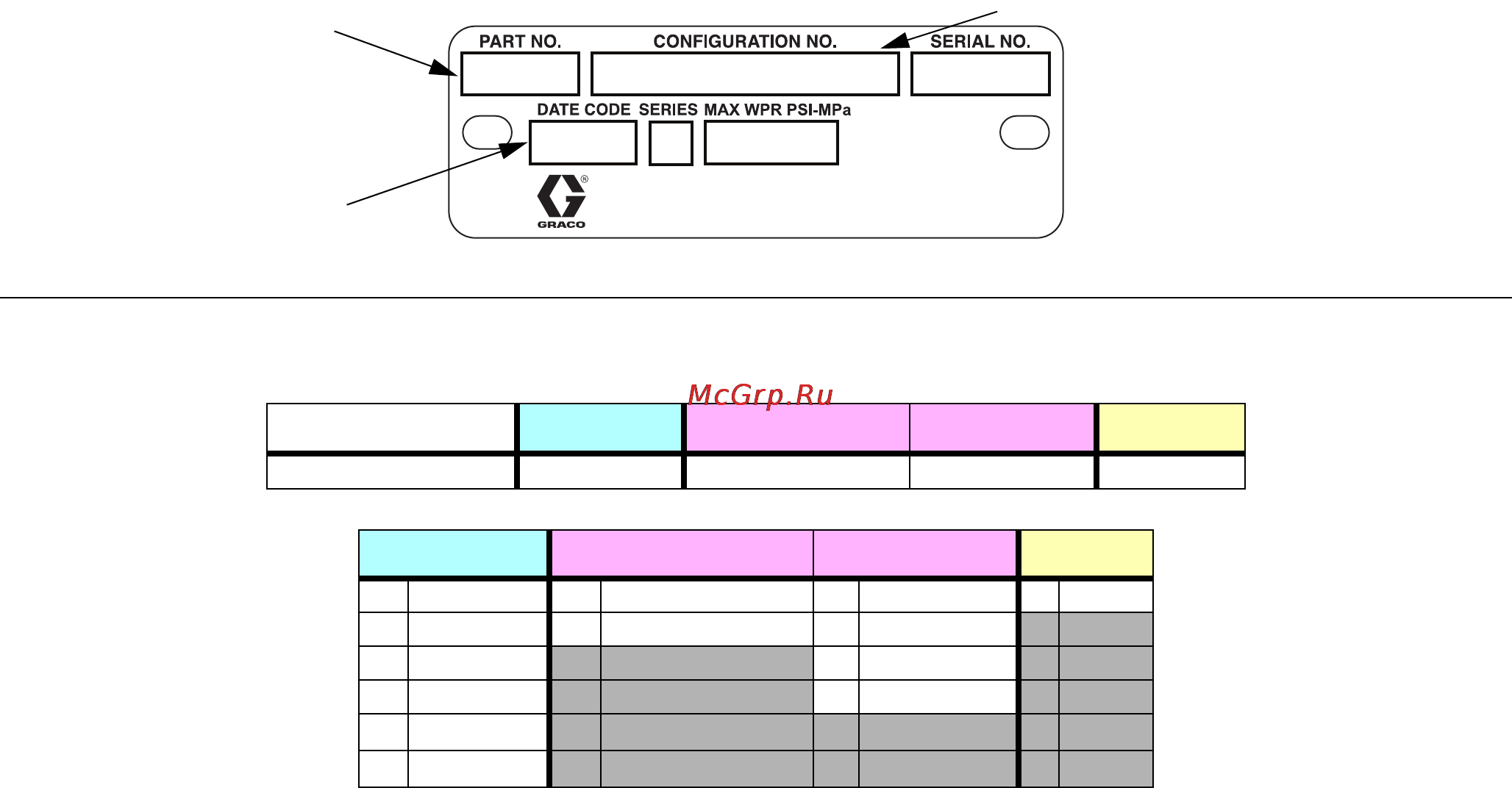

FIG. 3 Example of the Fluid Module Identification Plate

A30600 ########

A 1250

(

8.6

)

# ####

Graco Inc., P.O. Box 1441

Mpls, MN 55440 USA

CI-50-XA-0

Model Number

Configuration Number

Date Code

CI 50 X A 0

Chemical Injection Plunger Size Plunger Coating Seal Material Qualifier

Plunger Size Plunger Coating Seal Material Qualifier

19 3/16” X Chromex A FKM 0 None

25 1/4” C Ceramic B FKMETP

38 3/8” C HNBR

50 1/2” DFFKM

63 5/8”

75 3/4”
