Operation
334513D 23
4. Reinstall spring pin (34) in desired stroke position.
5. Reassemble the molded guard (26) to pump.
Wolverine Advanced and Hazardous Location
This pump has infinite stroke adjustment positions
between full stroke and half stroke.
1. Disconnect main power from pump.
2. Expose the drive shaft (33) by loosening the cap
screws (27) and removing the drive guard (26). The
cap screws will remain with the drive guard.
3. Loosen the stroke adjustment nuts (36), and move
to desired stroke location and re-tighten. Moving the
adjustment nuts towards the pump will decrease the
stroke, and moving them towards the cam will
increase the stroke.
4. Reassemble the drive guard (26) to pump.

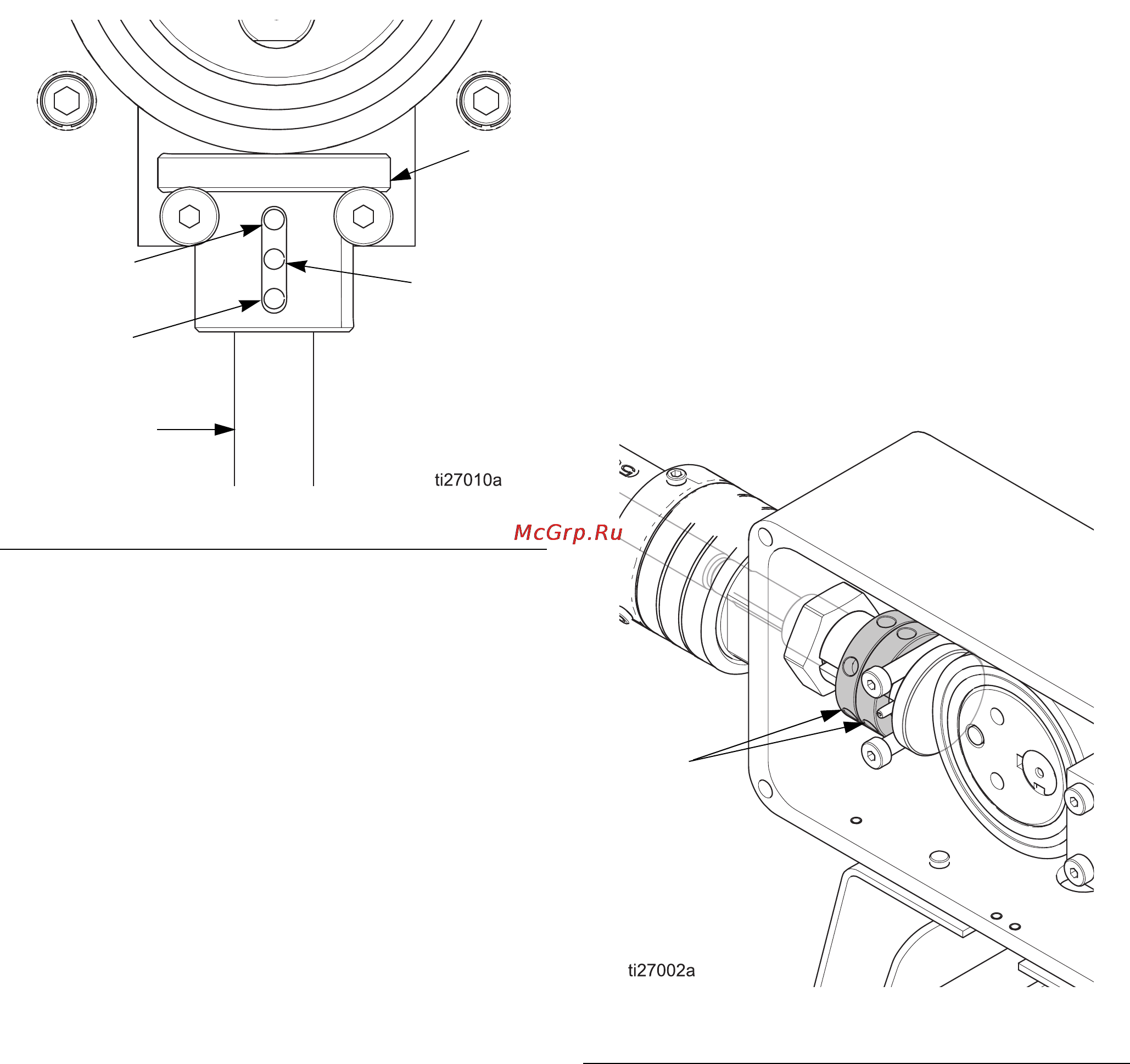

FIG. 12 Wolverine Basic stroke adjustment positions
33
35
3/4 stroke
Full (1”, 25 mm)
(3/4”, 19 mm)
1/2 stroke
(1/2”, 13 mm)
FIG. 13 Wolverine Advanced and Hazardous
Location stroke adjustment
36
