Repair
334513D 33
5. Place two 7/32” (or smaller) Allen wrenches (or sim-
ilar tools) in the holes on the cam (8) and use them
to rotate the cam until the key is towards the pump
being repaired.
6. Carefully remove the plunger (43) from the drive
shaft (33).

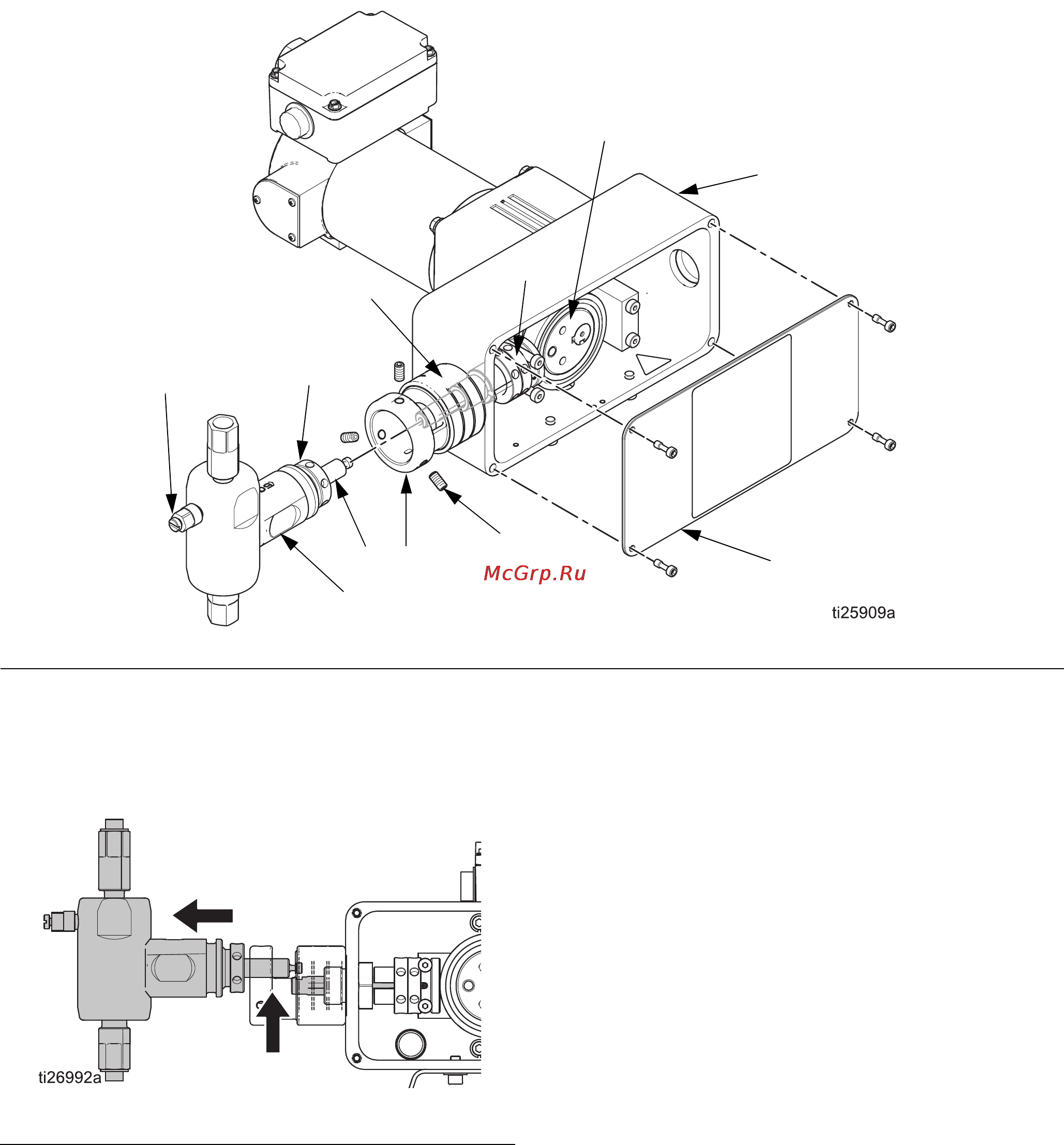

FIG. 27 Disconnect Wolverine Advanced and Hazardous Location Pump
26
1
8
36
15
37
19
14
42
21
43
FIG. 28 Disconnect plunger from drive shaft
