Setup
Select Select
Select
ADM ADM
ADM
Settings Settings
Settings
Note
SeeAppendixA—ADM,page92for
detailedADMinformation,includinggeneral
operation.

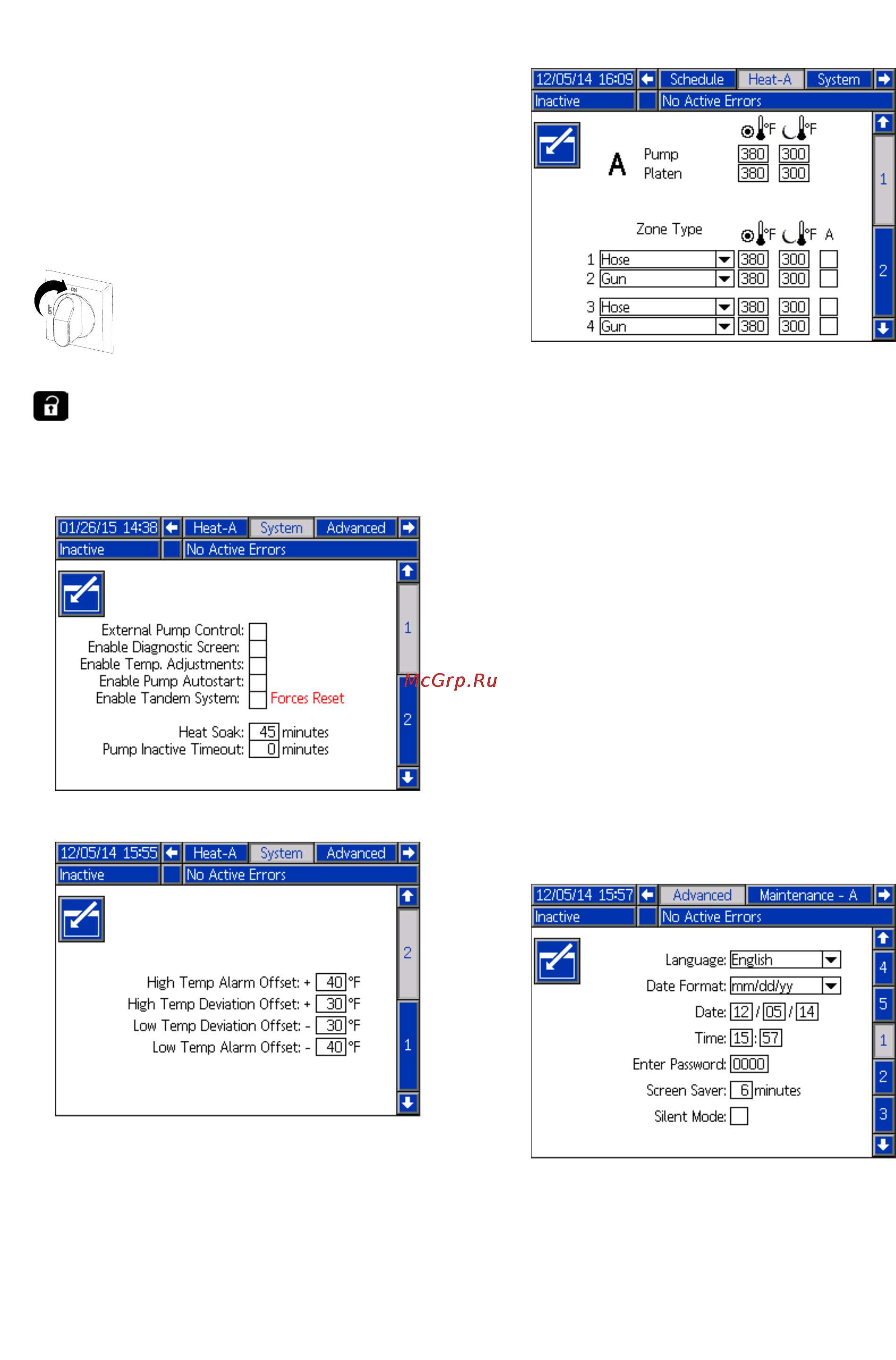

1.Turnmainpowerswitchon.
2.WhentheADMisnishedstartingup,press
toswitchfromtheOperationscreensto
theSetupscreens.Usethearrowstonavigate
betweenscreens.
3.ChecksystemsettingsontheSystem1screen.
4.SetalarmlevelsontheSystem2screen.
5.Setprimarysystemsetpointandsetback
temperaturesforthepump,platen,andheat
zonesontheHeat-Ascreens.
Note
Setbacktemperaturesmustbeatleast
20°F(10°C)lowerthanthesetpoint
temperatures
Note
Toensureaccuratehosetemperatures,
besureallheatedhoseshavetheir
“zonetype”setto“Hose.”Hosesareonly
presentonoddzonenumbers:1,3,5,
7,9,or11.
a.Selecttheappropriate“ZoneType”forall
installedzones.
b.Checkthe“A”and“B”boxesaccordingto
whichsystemsneedstousetheheated
accessory.
6.Ifasecondarysystemisused,settemperatures
ontheHeat-Bscreens.
7.SetthesystemdateandtimeontheAdvanced1
screen.
334129D23
