Graco Therm-O-Flow 20 [80/108] Pump pump pump shield shield shield
![Graco Therm-O-Flow 20 [80/108] Pump pump pump shield shield shield](/views2/1193755/page80/bg50.png)

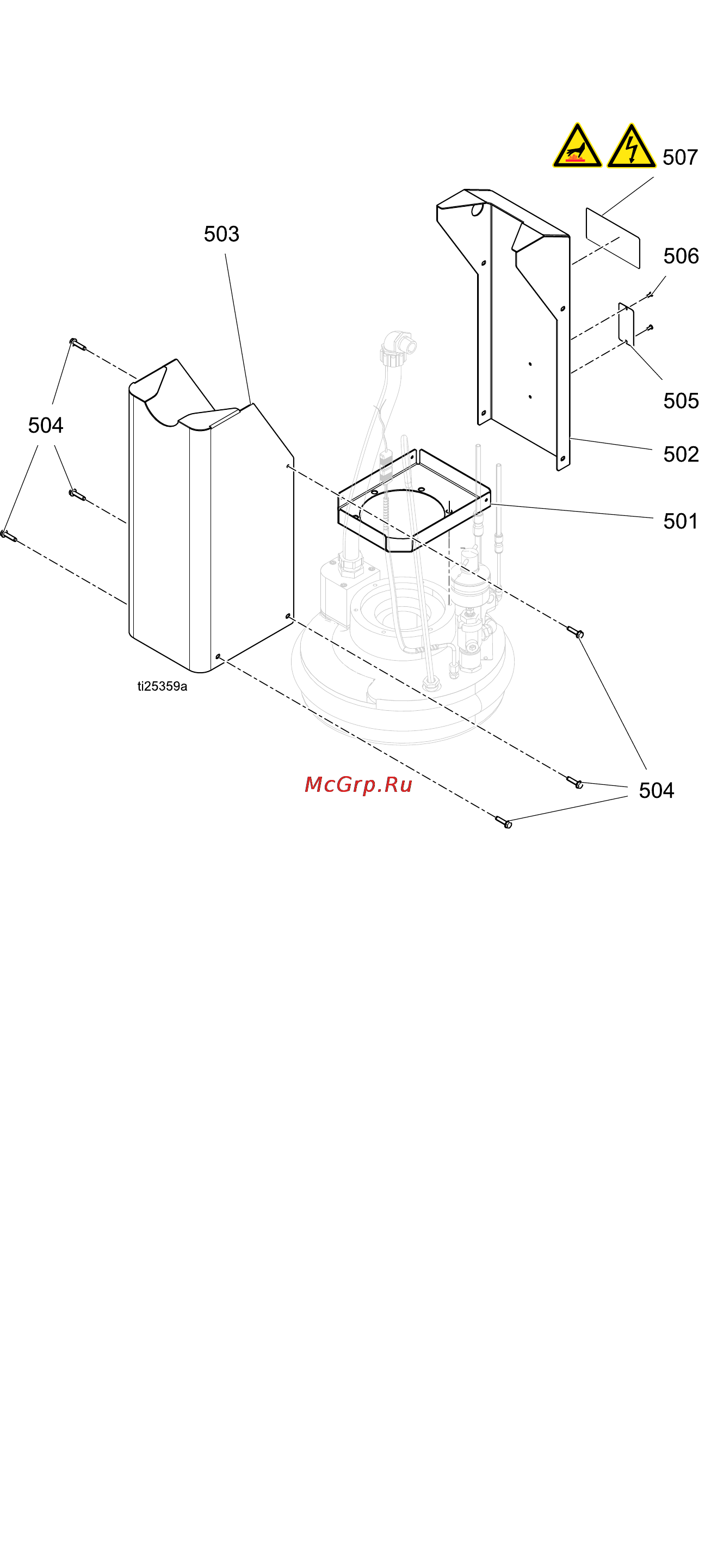

Parts
Pump Pump
Pump
Shield Shield
Shield
Ref Ref
Ref
Part Part
Part
Description Description
Description
Qty Qty
Qty
501
---
COVER,pump,bottom
1
502
---
COVER,pump,back
1
503
---
COVER,PUMP,front
1
504
C20474SCREW,self-tapping
6
Ref Ref
Ref
Part Part
Part
Description Description
Description
Qty Qty
Qty
505 184090LABEL,warning1
506104088RIVET,blind2
507 15J075
LABEL,safety,hotsurface
andshock
1
ReplacementWarninglabels,signs,tags,and
cardsareavailableatnocost.
80334129D
