Setup
PLC PLC
PLC
Connections Connections
Connections
Block Block
Block
Diagrams Diagrams
Diagrams

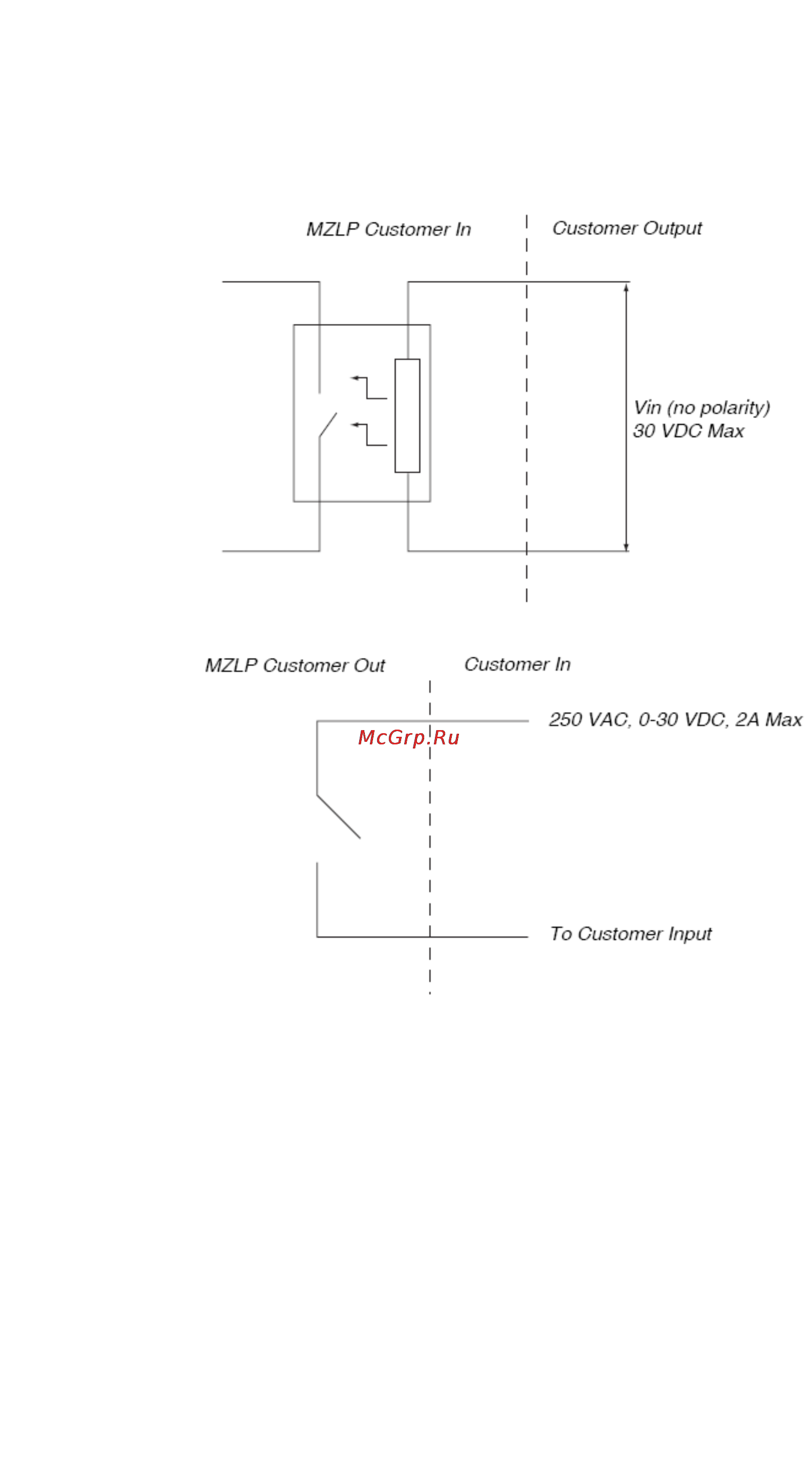

ThefollowingblockdiagramsshowhowtoconnectcustomerinputsandoutputstotheMZLP.For
convenience,eachsystemshipswithconnectorkit24P176.Ifaconnectorislostordamaged,orderkit
24P176forreplacements.
Figure16CustomerInput
Figure17CustomerOutput
334129D
27
