EM-1240-LX User’s Manual Introduction

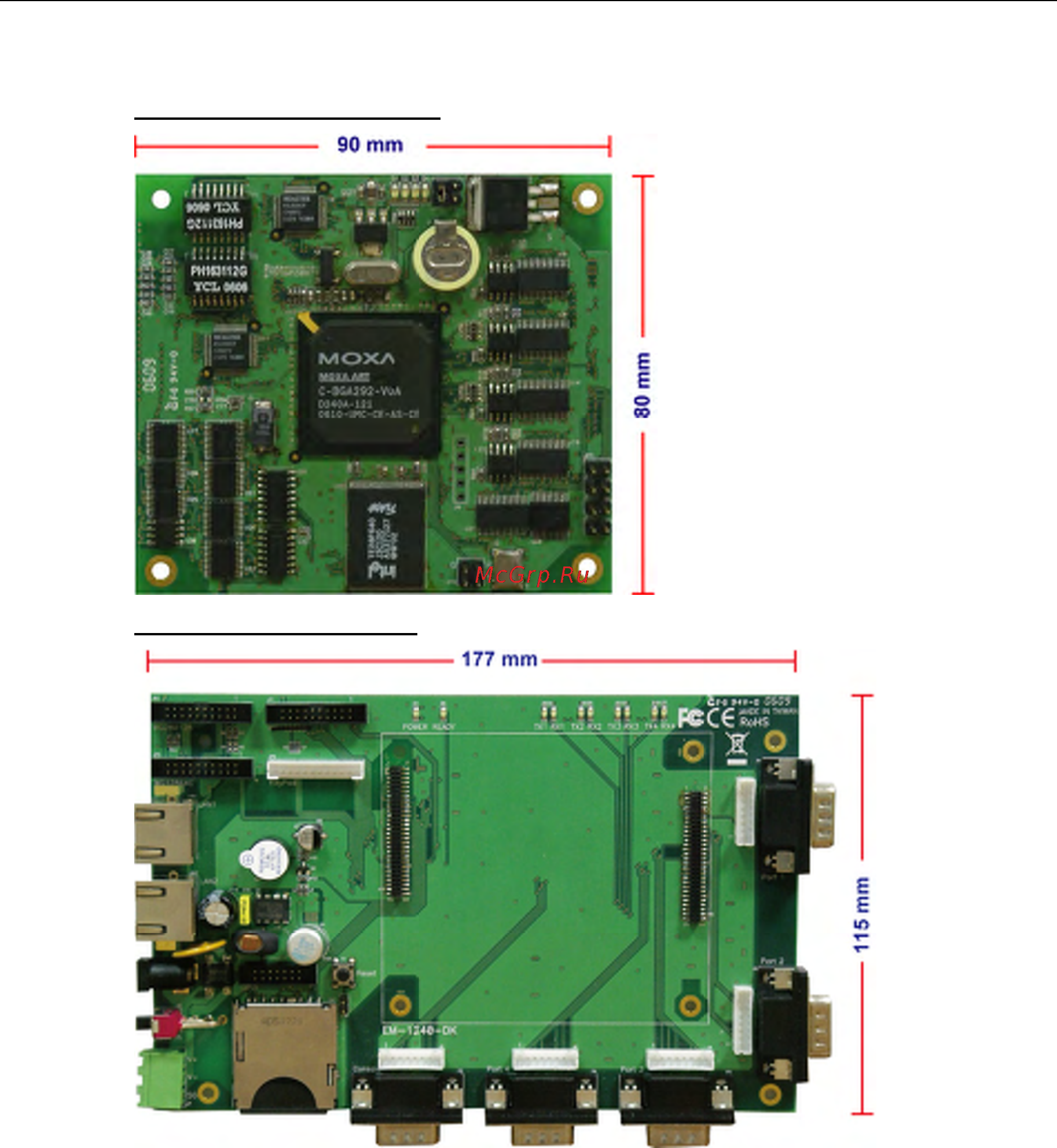

Dimensions
EM-1240 Embedded Module
EM-1240 Development Kit
Installing the EM-1240-LX
If you would like to use the EM-1240 Embedded Module and the EM-1240 Development Kit,
insert the EM-1240 Embedded Module vertically onto the Development Kit. Note that the pin
marked “JP4” on the Embedded Module must be matched with the pin marked “JP6” on the
Development Kit; and the Pin marked “JP3” on the Embedded Module must be matched with the
Pin marked “JP4” on the Development Kit. Be careful when inserting the module to avoid
damaging the product.
