EM-1240-LX User’s Manual Getting Started
Configuring the Ethernet Interface
In this section, we use the serial console to explain how to modify the EM-1240-LX’s network
settings.

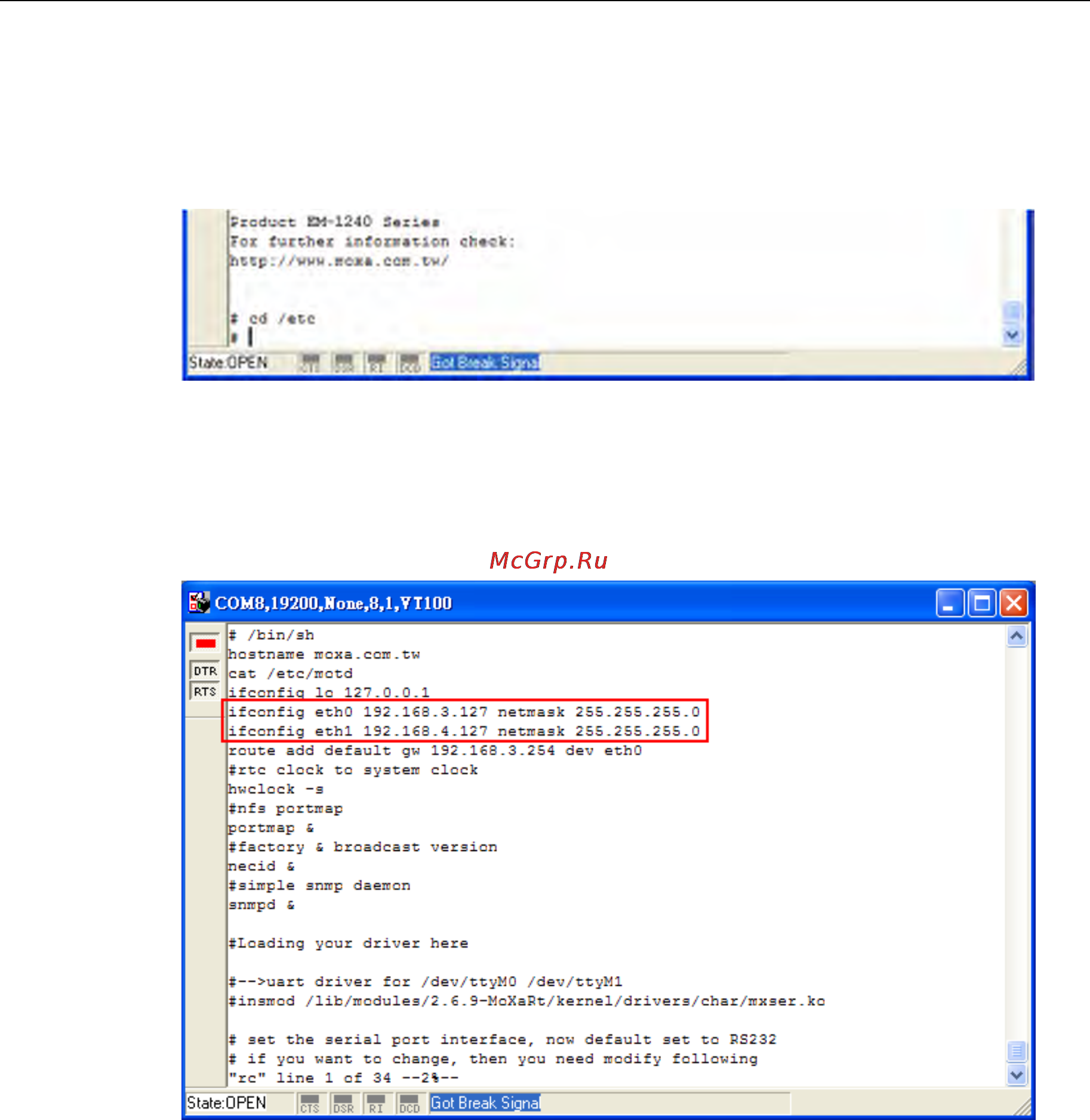

1. Change directories by issuing the command cd /etc.
2. Type the command vi rc to use the VI Editor to edit the configuration file. The IP addresses
for the EM-1240-LX’s LAN1 and LAN2 are given as
ifconfig eth0 192.168.3.127
ifconfig eth1 192.168.4.127
as shown in the following figure. Edit these two lines to modify the static IP addresses.
2-4
