EM-1240-LX User’s Manual Getting Started
Powering on the EM-1240-LX
Connect the SG wire to the Shielded Contact located on the upper left corner of the EM-1240-LX,
and then power on the EM-1240-LX by connecting the power adaptor. It takes about 16 seconds
for the system to boot up. Once the system is ready, the Ready LED will light up.
ATTENTION
After connecting the EM-1240-LX to the power supply, it will take about 16 seconds for the
operating system to boot up. The green Ready LED will not turn on until the operating system is
ready.
Connecting the EM-1240-LX to a PC
There are two ways to connect the EM-1240-LX to a PC.
Console Port
The serial console port offers users a
convenient means of connecting to the
EM-1240-LX. This method is particularly
useful when using the EM-1240-LX for the
first time. Since the communication is over a
direct serial connection, you do not need to
know either of the IP addresses in order to
make contact.
Use the serial console port settings shown on
the right. Once the connection is established,

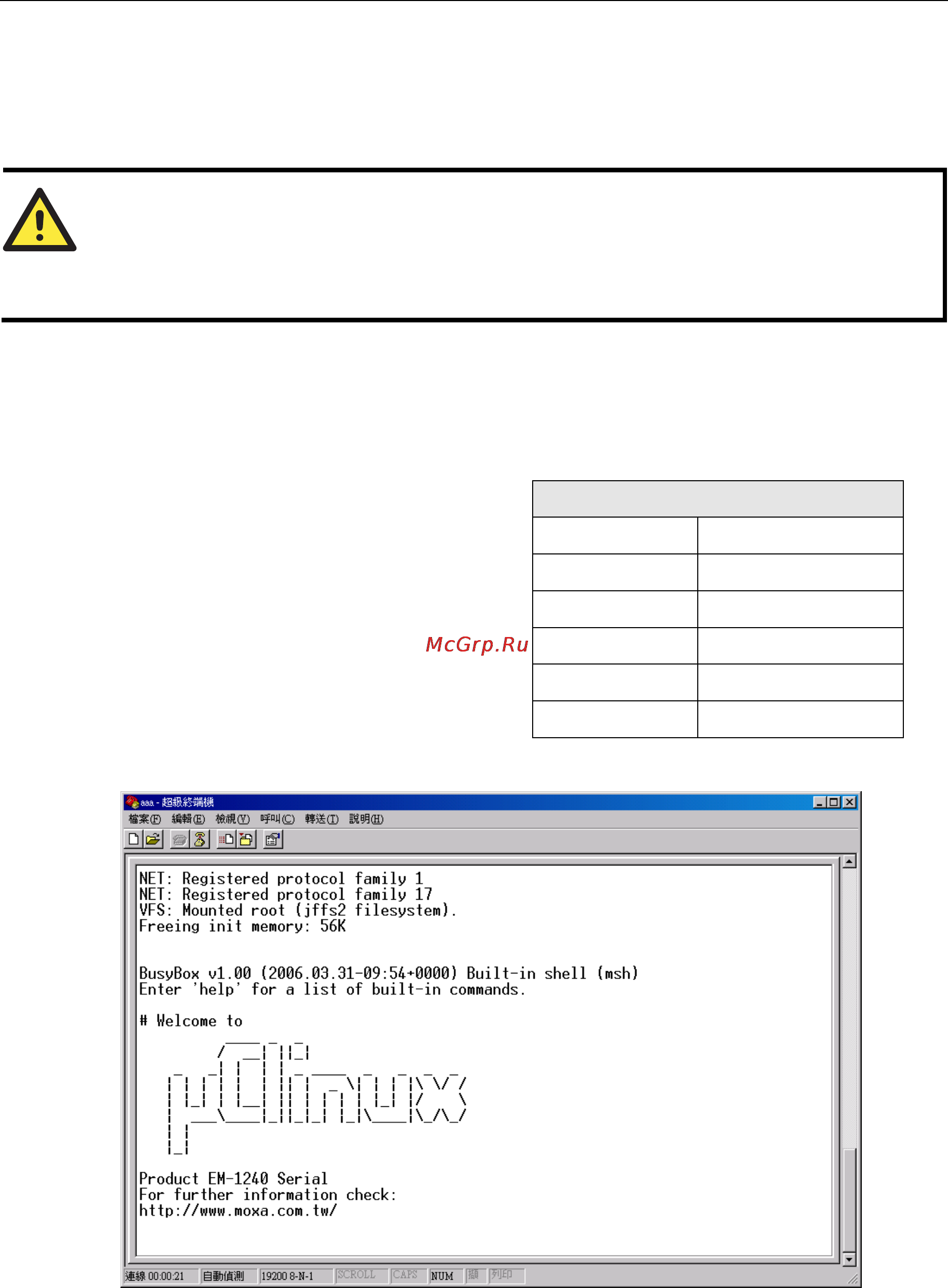

the following window will open.
Serial Console Port Settings
Baudrate
19200 bps
Parity
None
Data bits
8
Stop bits
1
Flow Control
None
Terminal
VT100
